Steering Gear

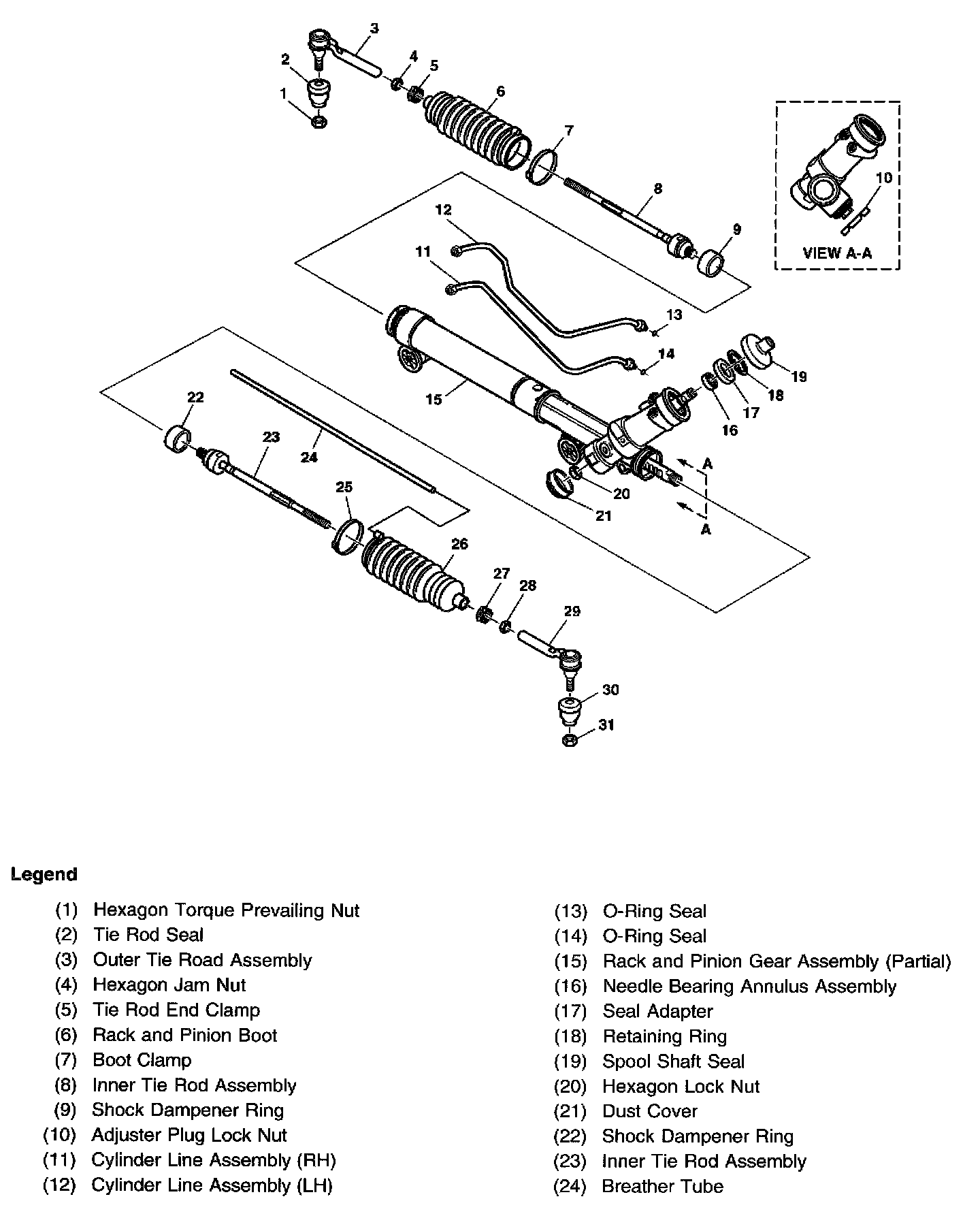

Power Steering Gear Disassembled View (Rack and Pinion)





Part 1 of 2





Part 2 of 2

Rack and Pinion Power Steering Gear
