Home >> Pontiac >> 2003 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Application and ID >> Fuse Block-Center Console

Fuse Block-Center Console

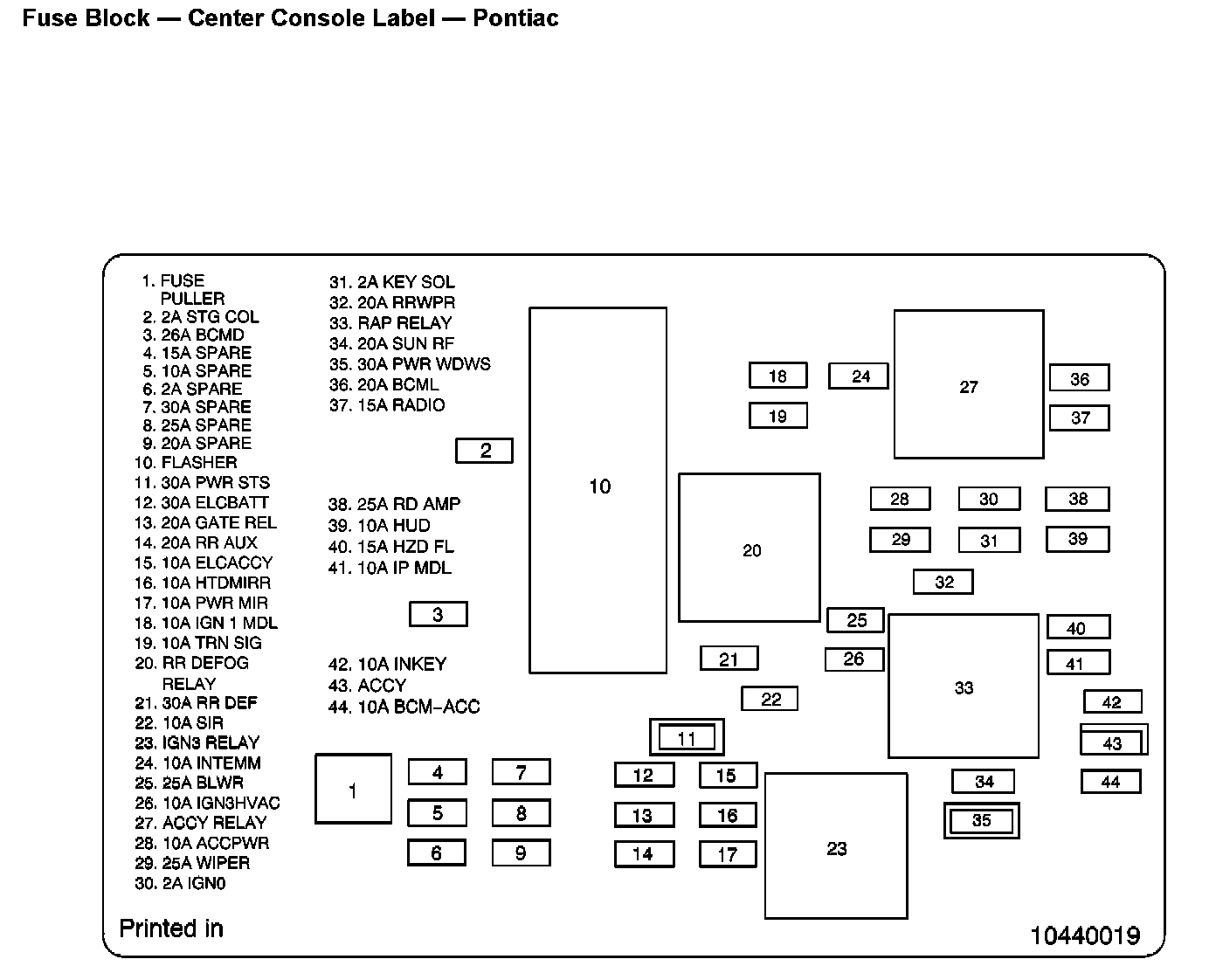

Location View:

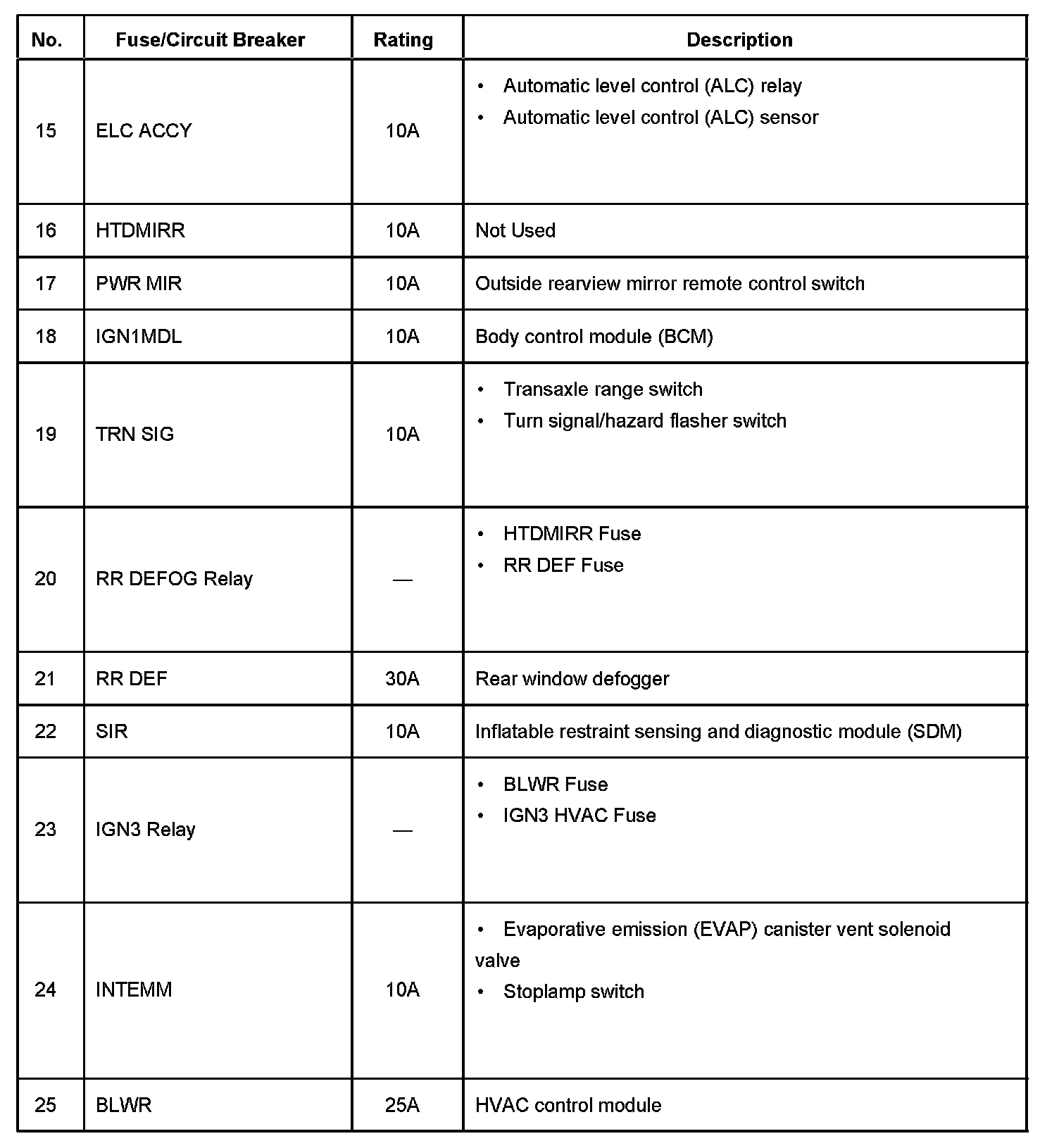

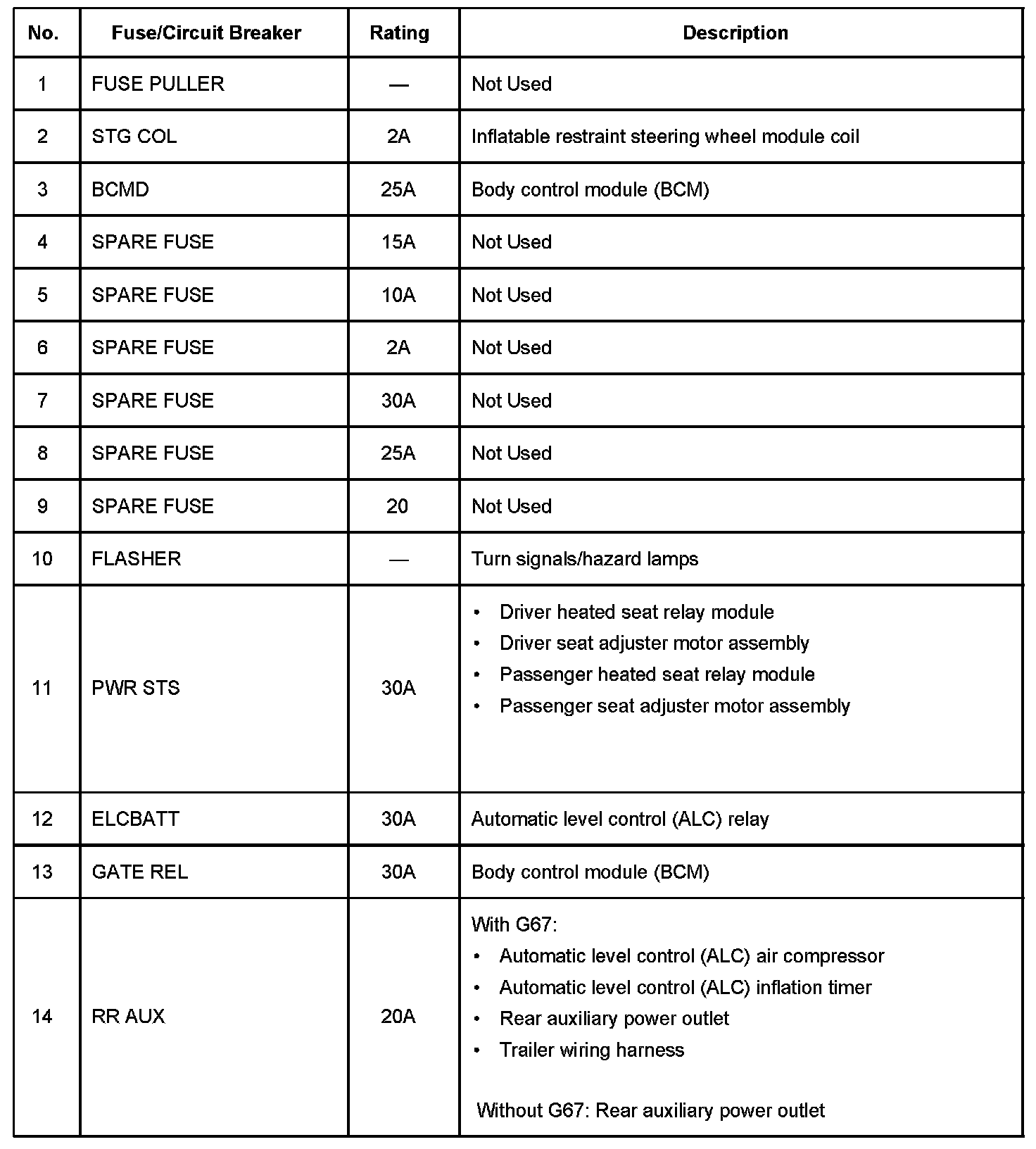

Application Table Part 1:

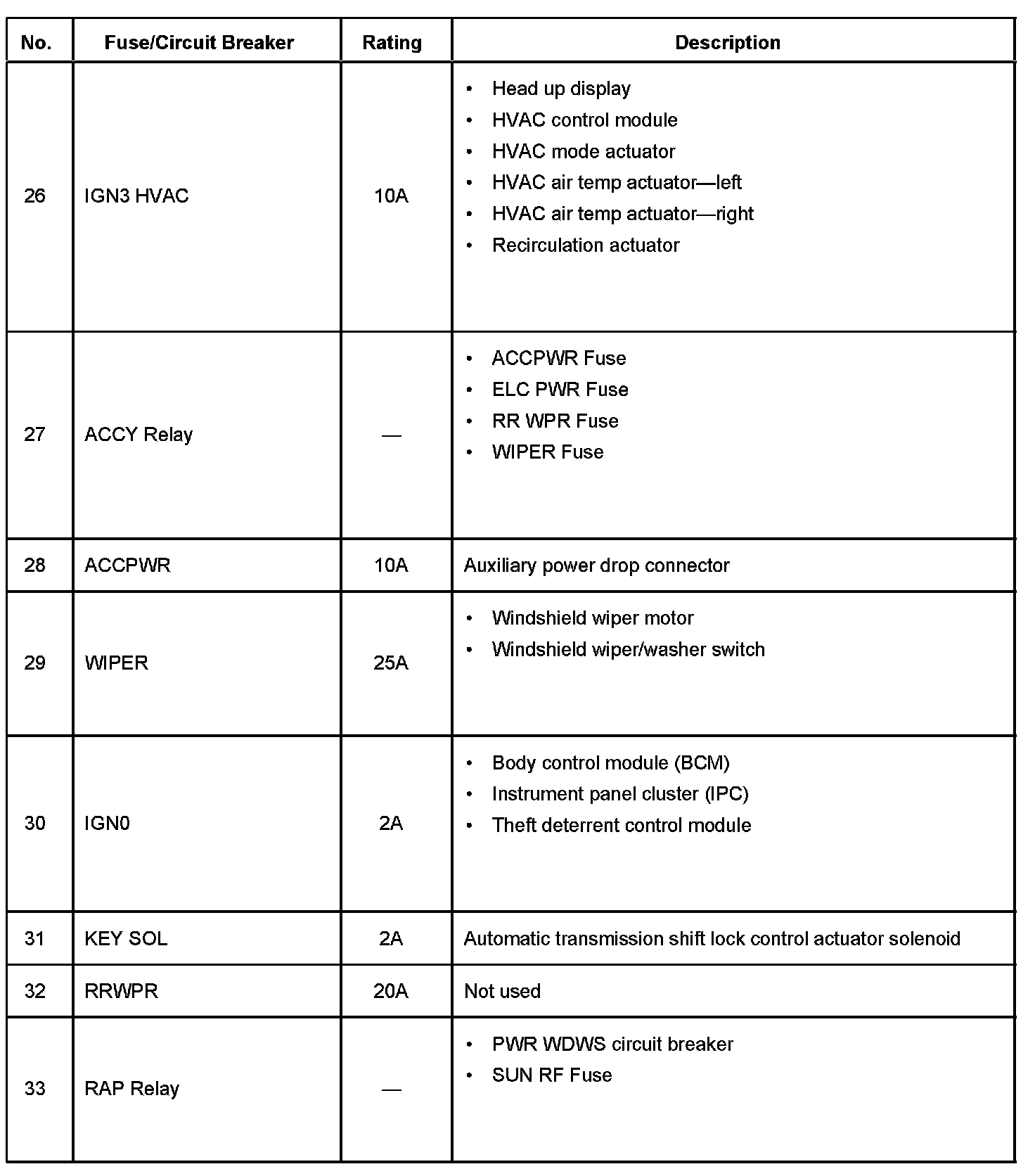

Application Table Part 2:

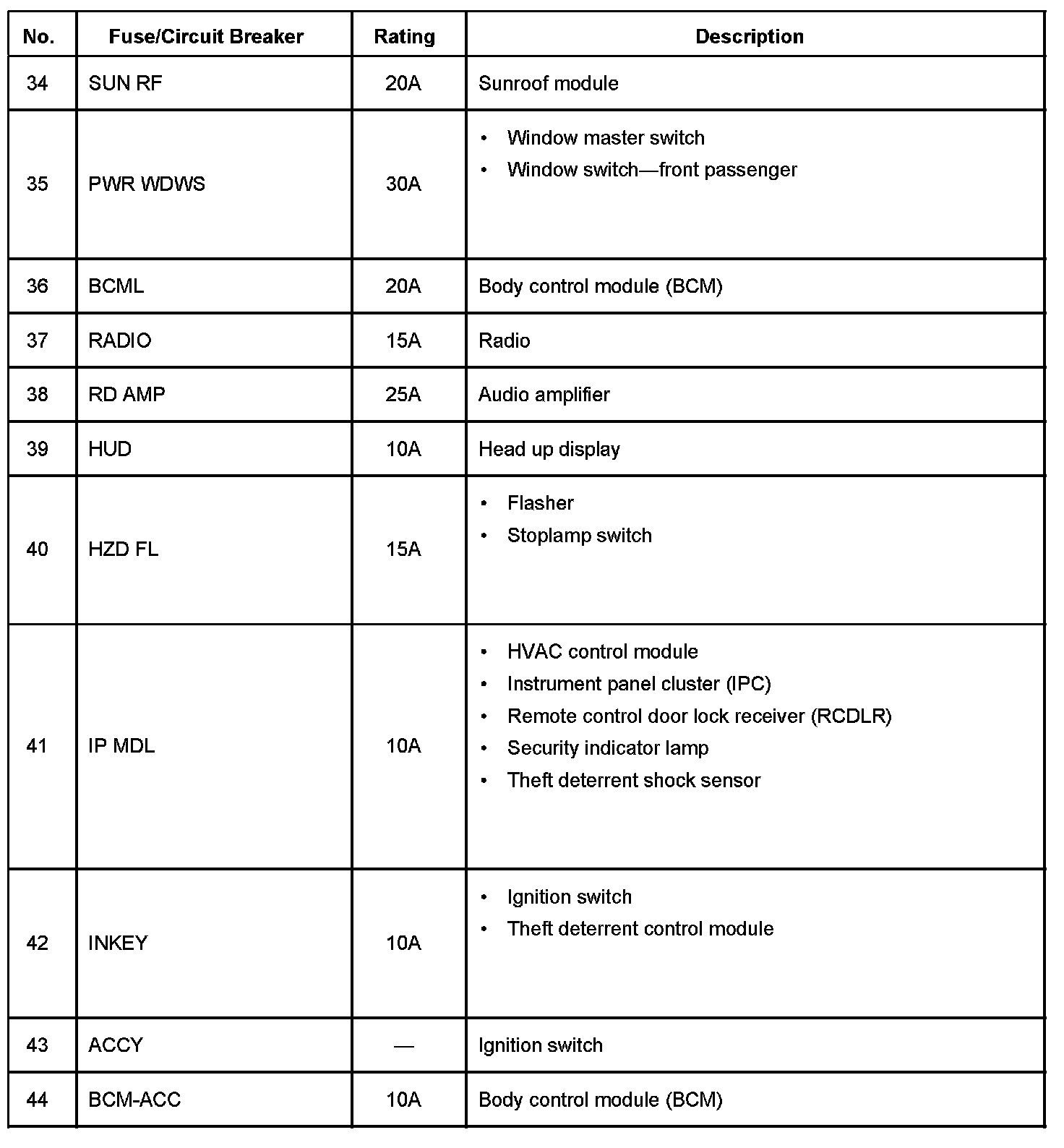

Application Table Part 3:




Application Table Part 4:

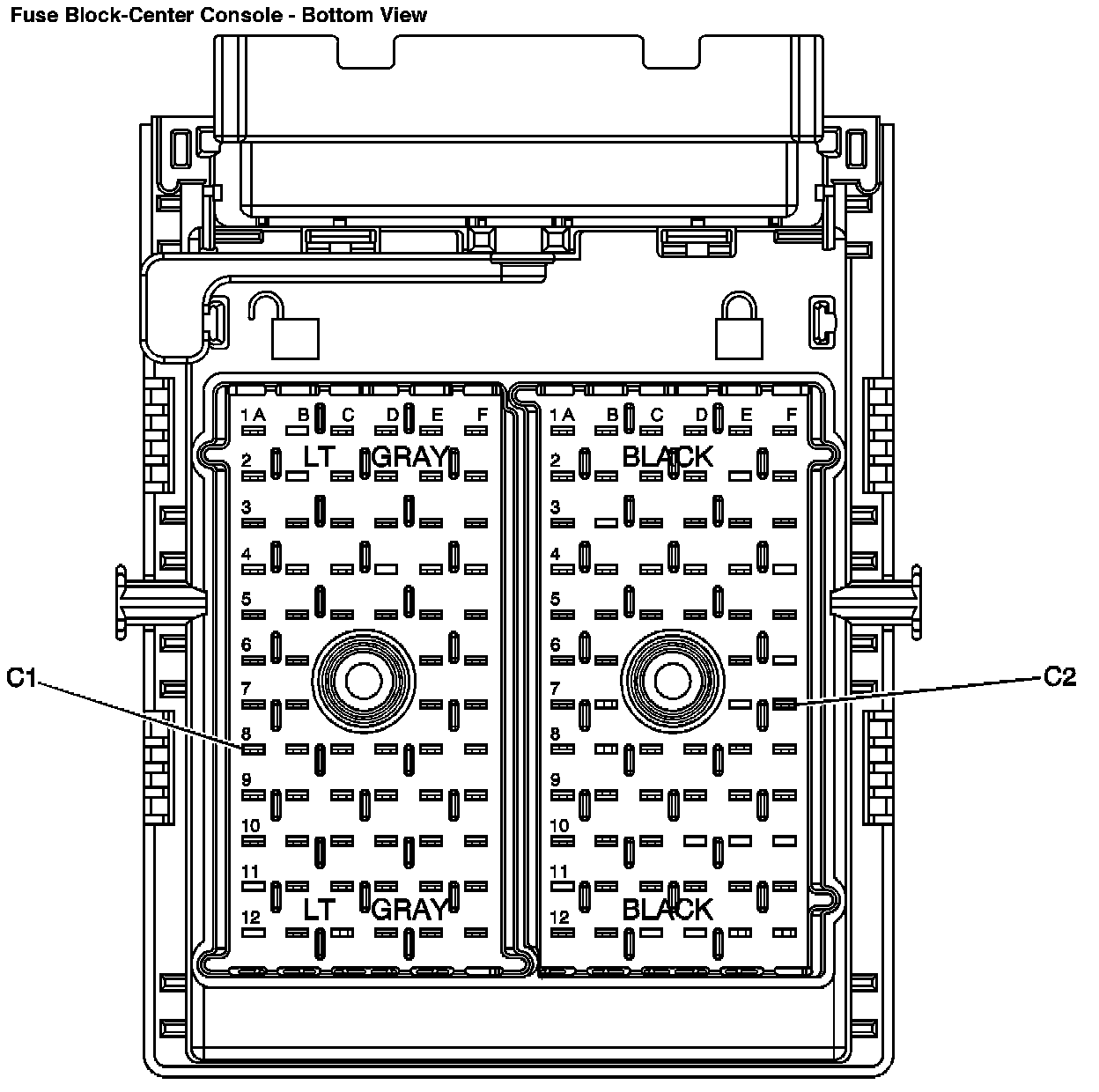

Location View:




Location View:
