Home >> Pontiac >> 2003 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Scan Tool Testing and Procedures >> Scan Tool Testing - HVAC System - Automatic >> Scan Tool Output Controls - HVAC Control Module

Scan Tool Output Controls - HVAC Control Module

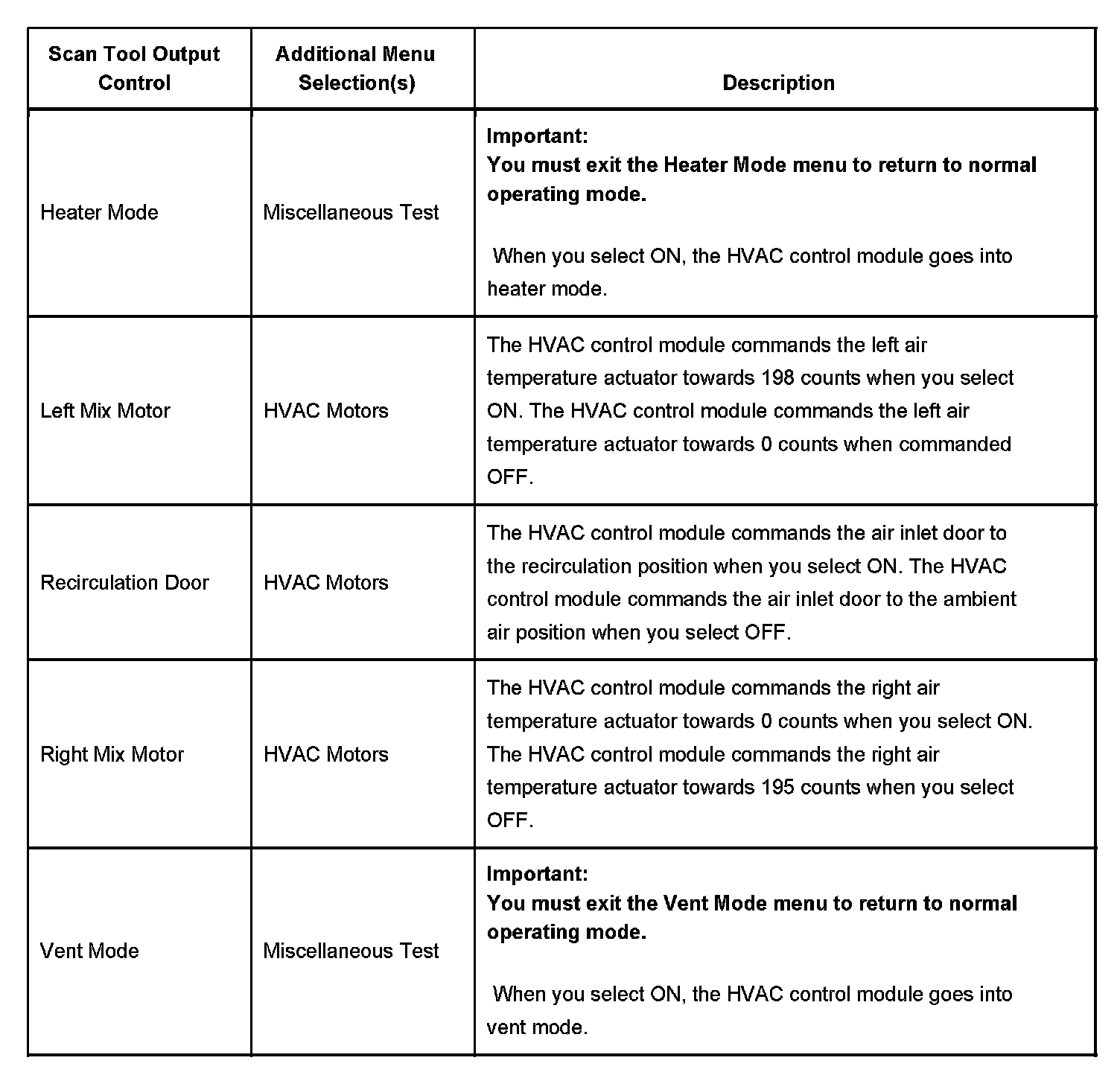

HVAC Control Module Scan Tool Output Controls Part 1:



HVAC Control Module Scan Tool Output Controls Part 2:
