Automatic Transmission Shift Lock Control Schematics (Pontiac)

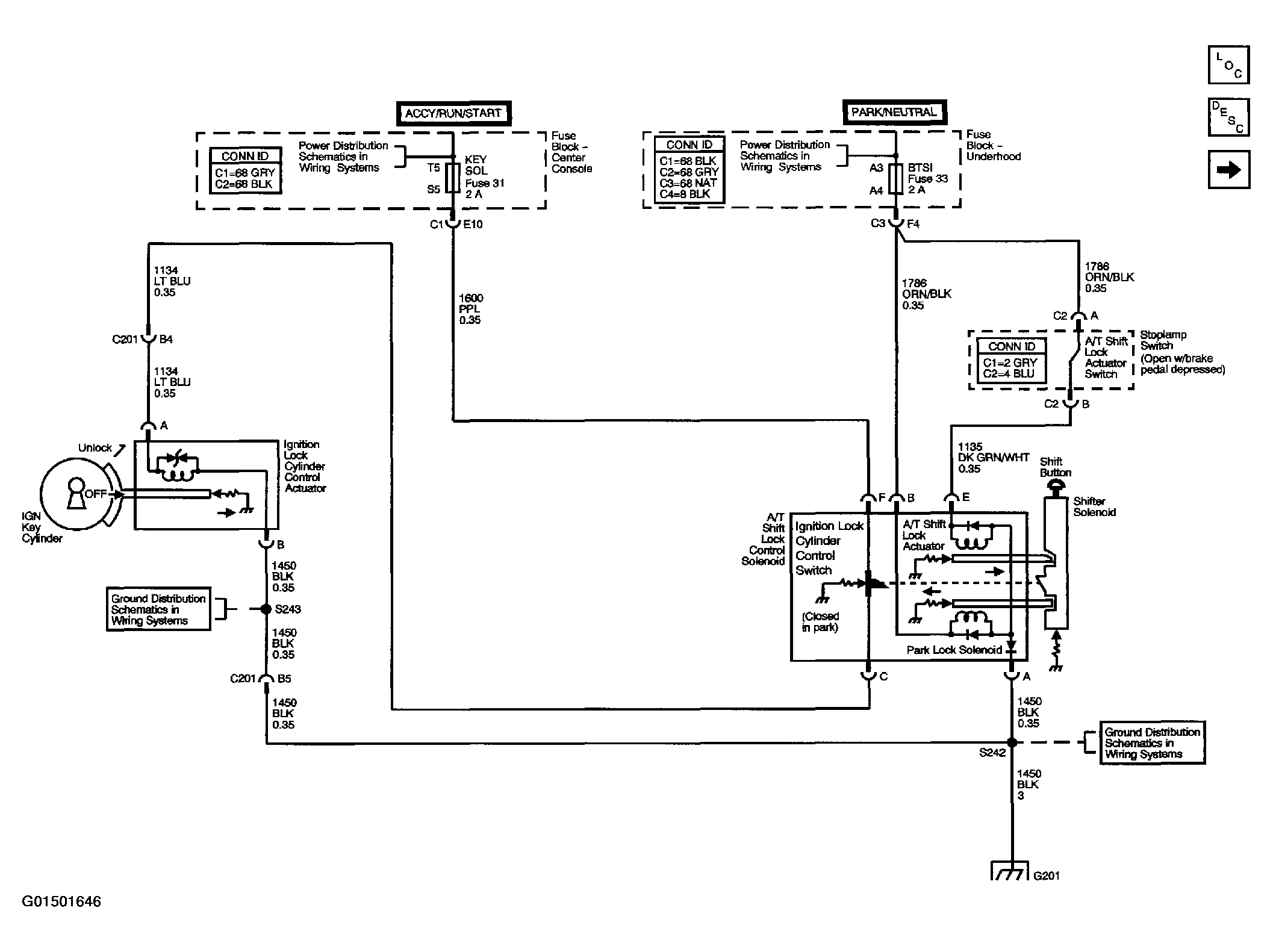

Fig 1: Automatic Transmission Shift Lock Control Schematics (Pontiac)

G01501646

Courtesy of GENERAL MOTORS CORP.
