Removal Procedure

  1. Raise and suitably support the vehicle.
  2. Remove the catalytic converter hanger insulators from the catalytic converter.
  3. Remove the catalytic converter hanger bolts.
  4. Remove the catalytic converter hanger.

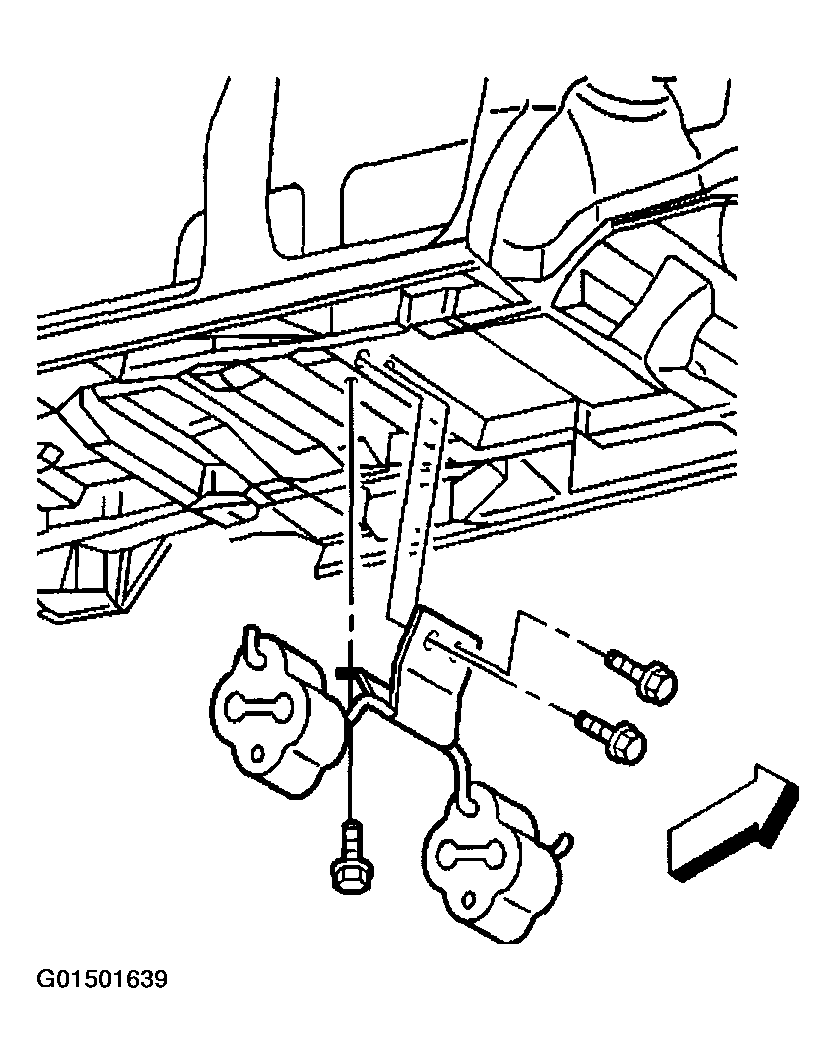

    Fig 1: Removing Catalytic Converter Hanger - Converter Hanger Assembly Replacement
    G01501639Courtesy of GENERAL MOTORS CORP.
