Schematic and Routing Diagrams

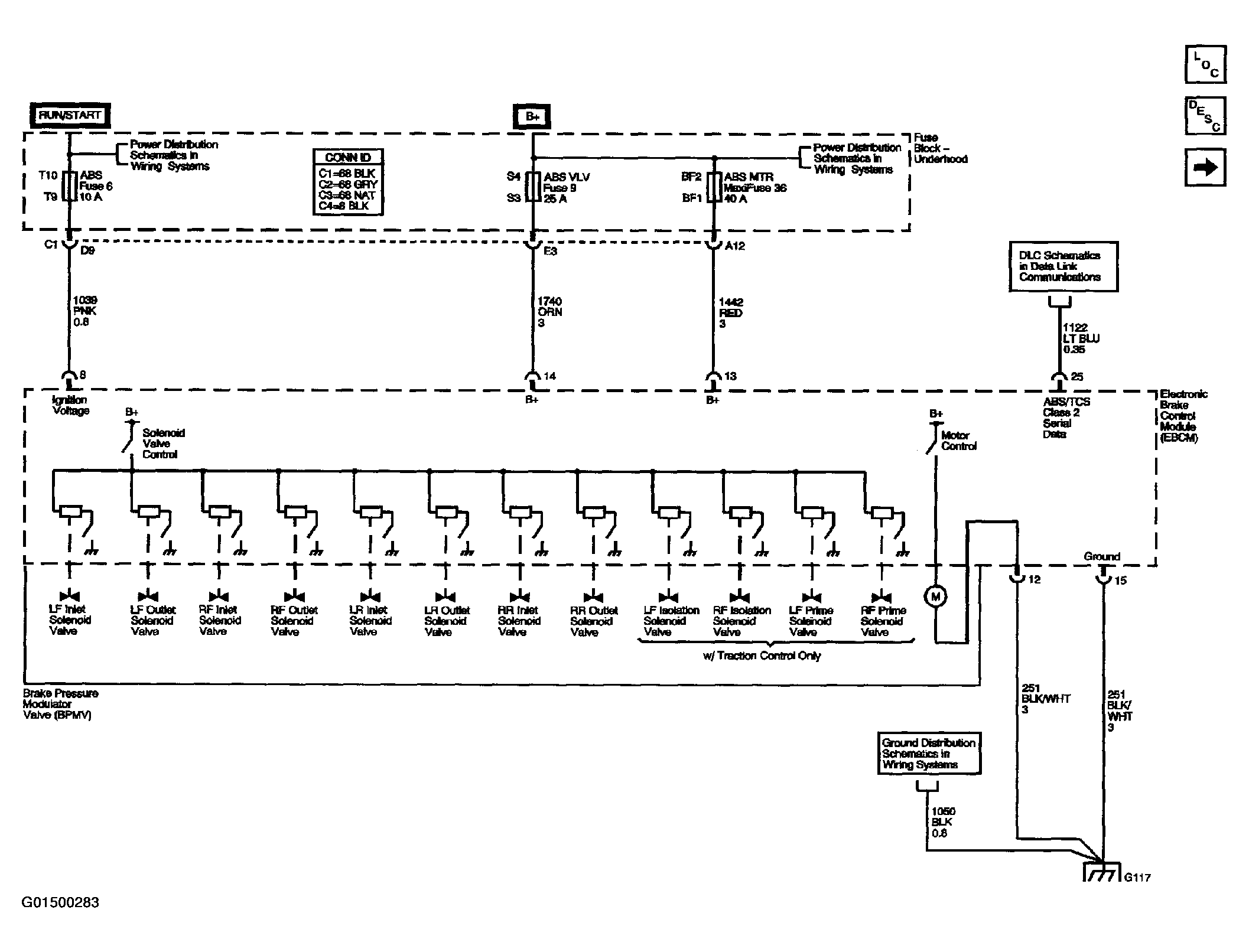

Fig 1: ABS Schematics Diagram (Brake Pressure Modulation, Ground, Power & Stoplamp Switch)
G01500283Courtesy of GENERAL MOTORS CORP.

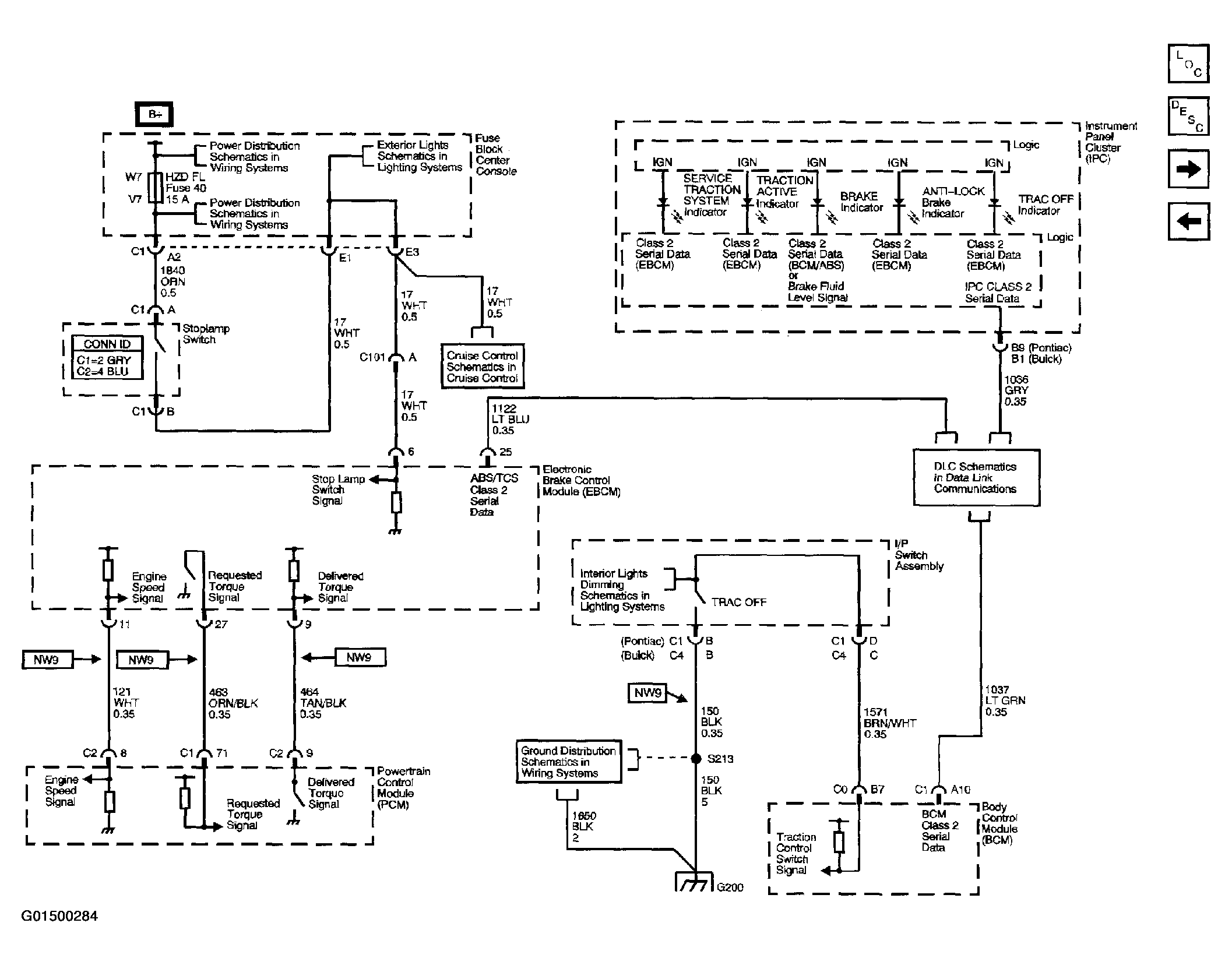

Fig 2: ABS Schematics Diagram (DLC, Indicators & Traction Control Switch)
G01500284Courtesy of GENERAL MOTORS CORP.

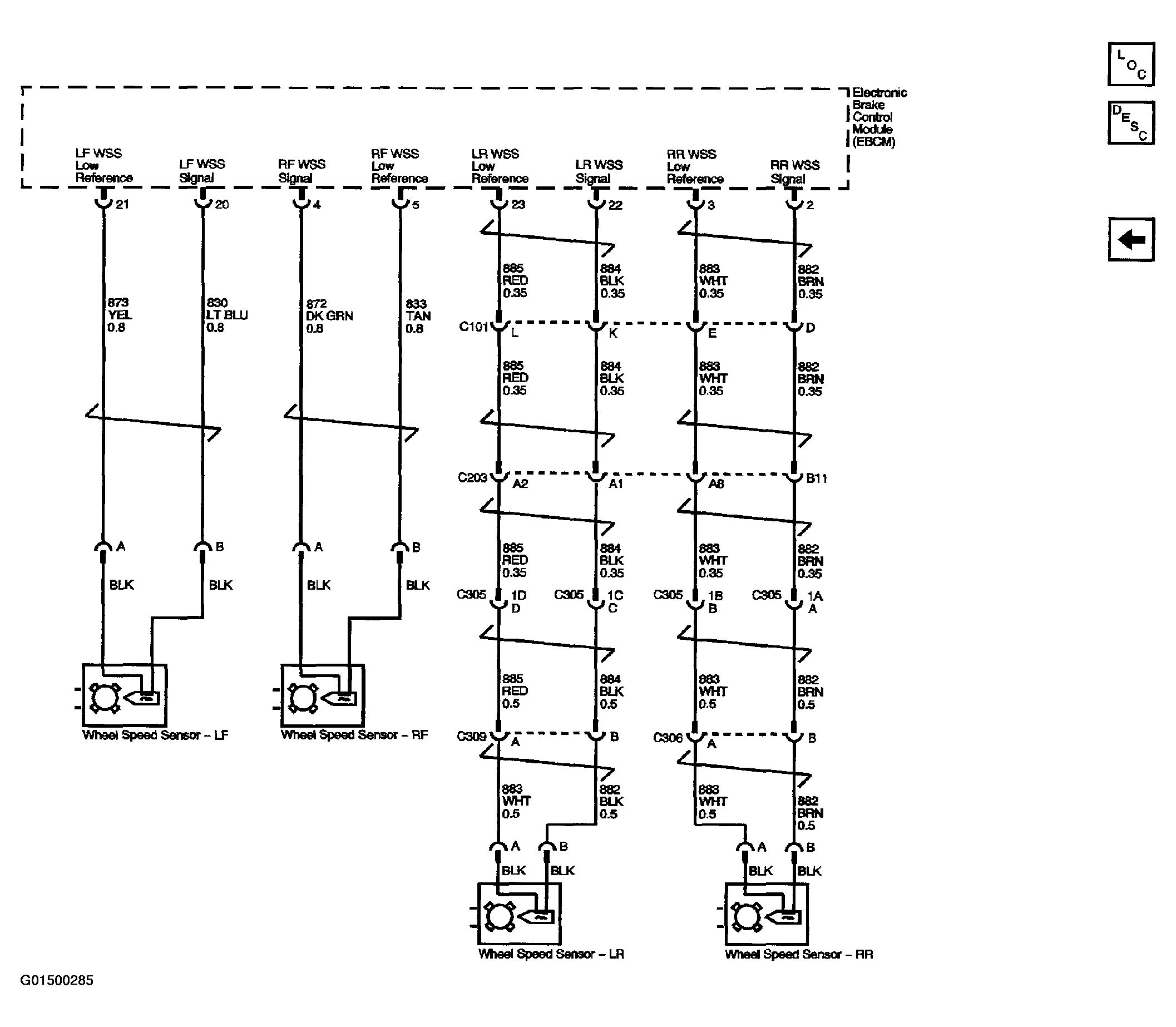

Fig 3: ABS Schematics Diagram (Wheel Speed Sensors)
G01500285Courtesy of GENERAL MOTORS CORP.
