Installation Procedure

  1. Connect the security indicator lamp electrical connector to the security indicator lamp.
  2. Install the security indicator lamp (3) to the instrument panel upper trim:
    1. Insert the lamp.
    2. Rotate the lamp clockwise to approximately 1/4 turn.
  3. Install the instrument panel upper trim. Refer to TRIM PAD REPLACEMENT -- INSTRUMENT PANEL (I/P) UPPER (AZTEK) or TRIM PAD REPLACEMENT -- INSTRUMENT PANEL (I/P) UPPER (RENDEZVOUS) .

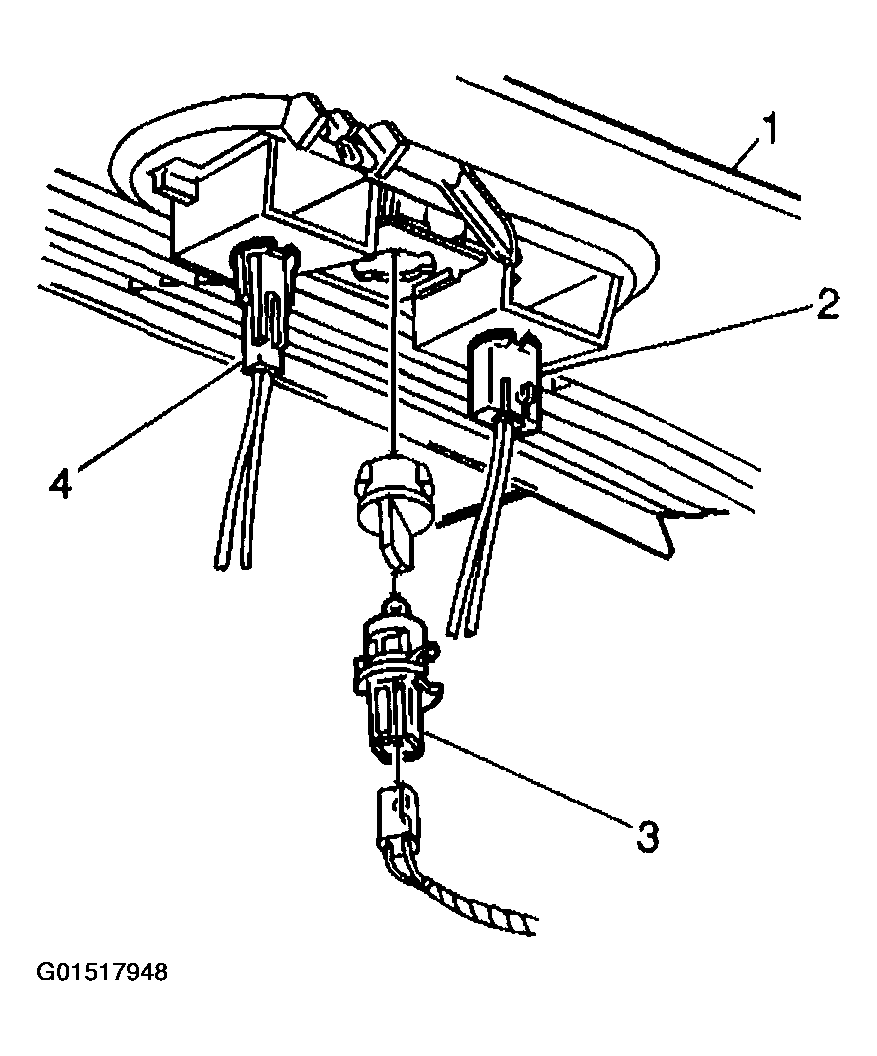

    Fig 1: Connecting Security Indicator Lamp Electrical Connector To Security Indicator Lamp
    G01517948Courtesy of GENERAL MOTORS CORP.
