Home >> Pontiac >> 2002 >> Sunfire L4-2.2L VIN F >> Repair and Diagnosis >> Locations >> Splice Locations >> Splice/Splice Packs By Number

Splice/Splice Packs By Number

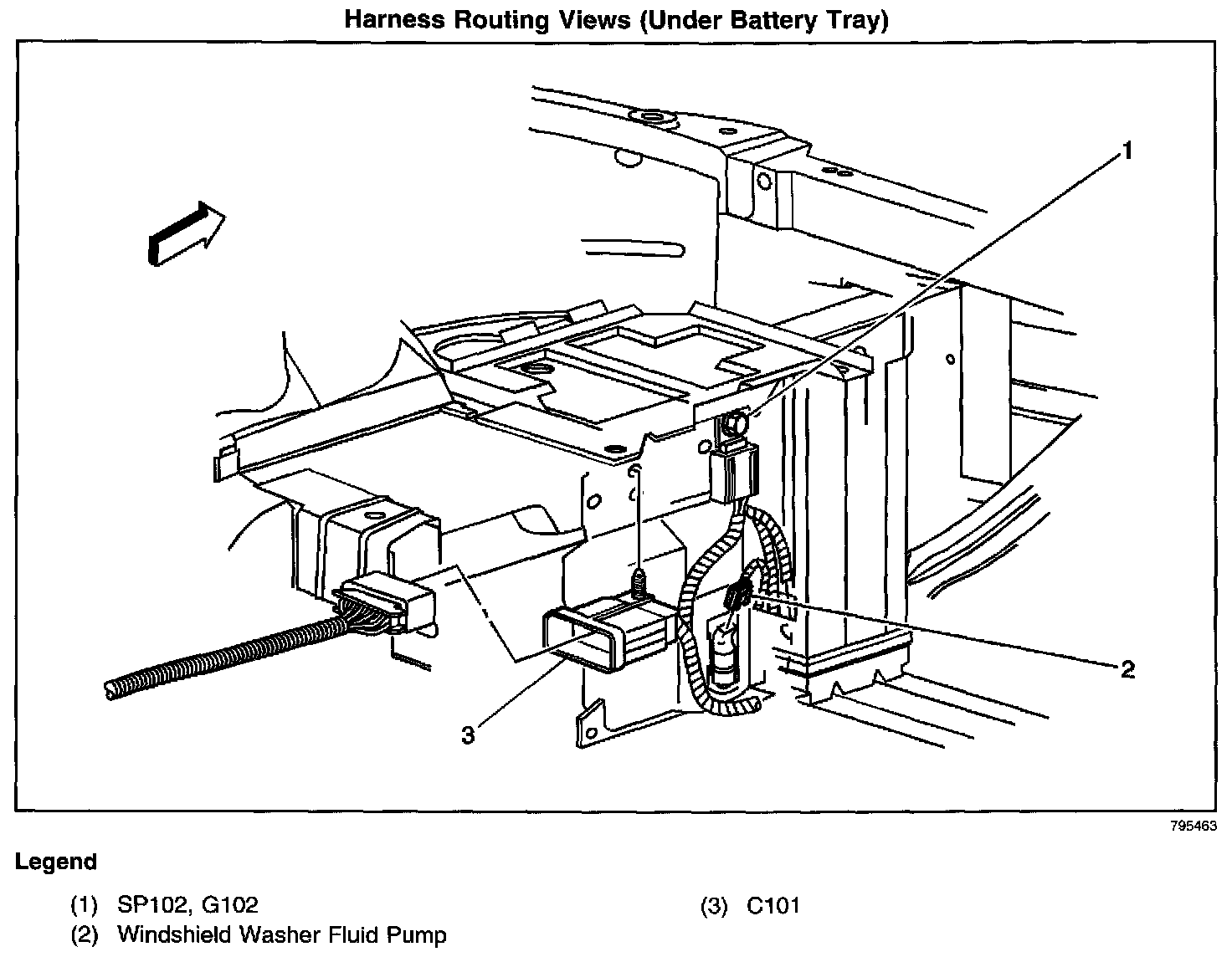

Harness Routing Views (Under Battery Tray):
