Home >> Pontiac >> 2002 >> Sunfire L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Combination Switch

Combination Switch

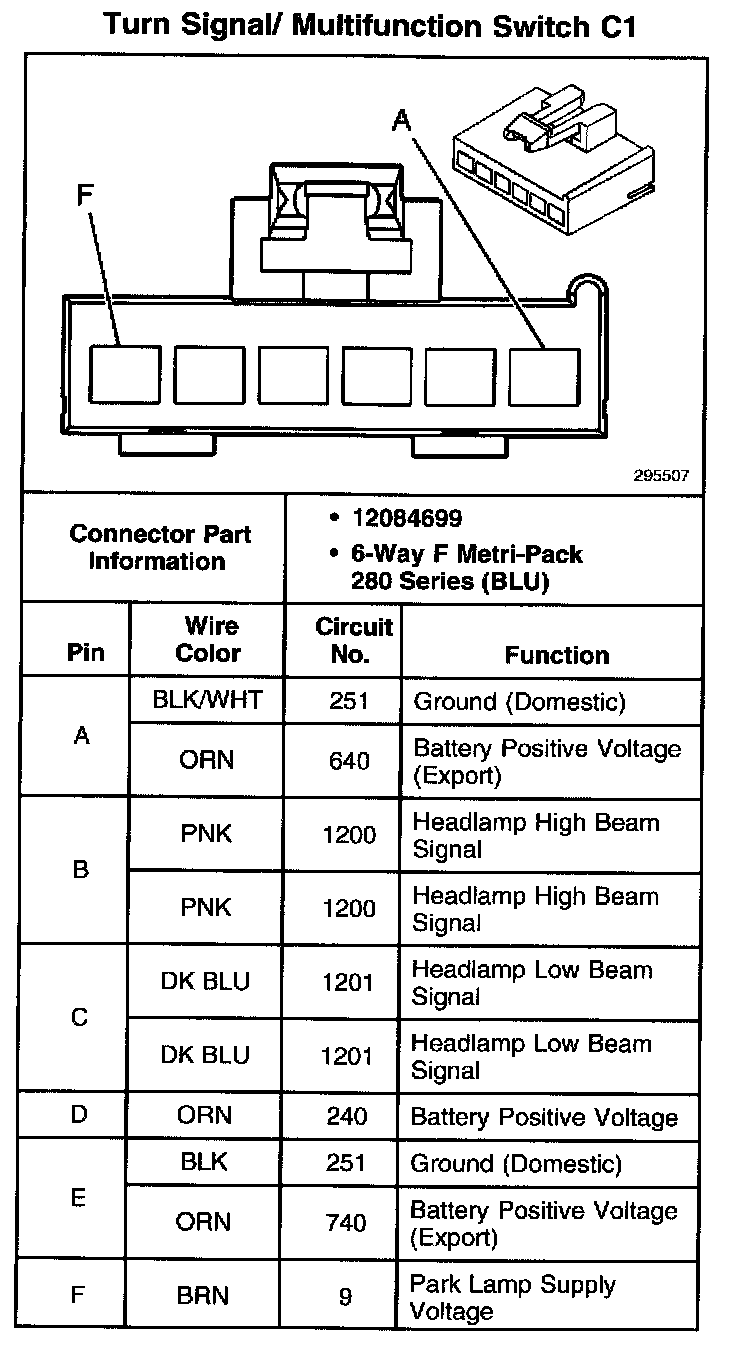

Turn Signal/Multifunction Switch C1:



Turn Signal/Multifunction Switch C2:
