Home >> Pontiac >> 2002 >> Firebird V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering >> System Diagram

System Diagram

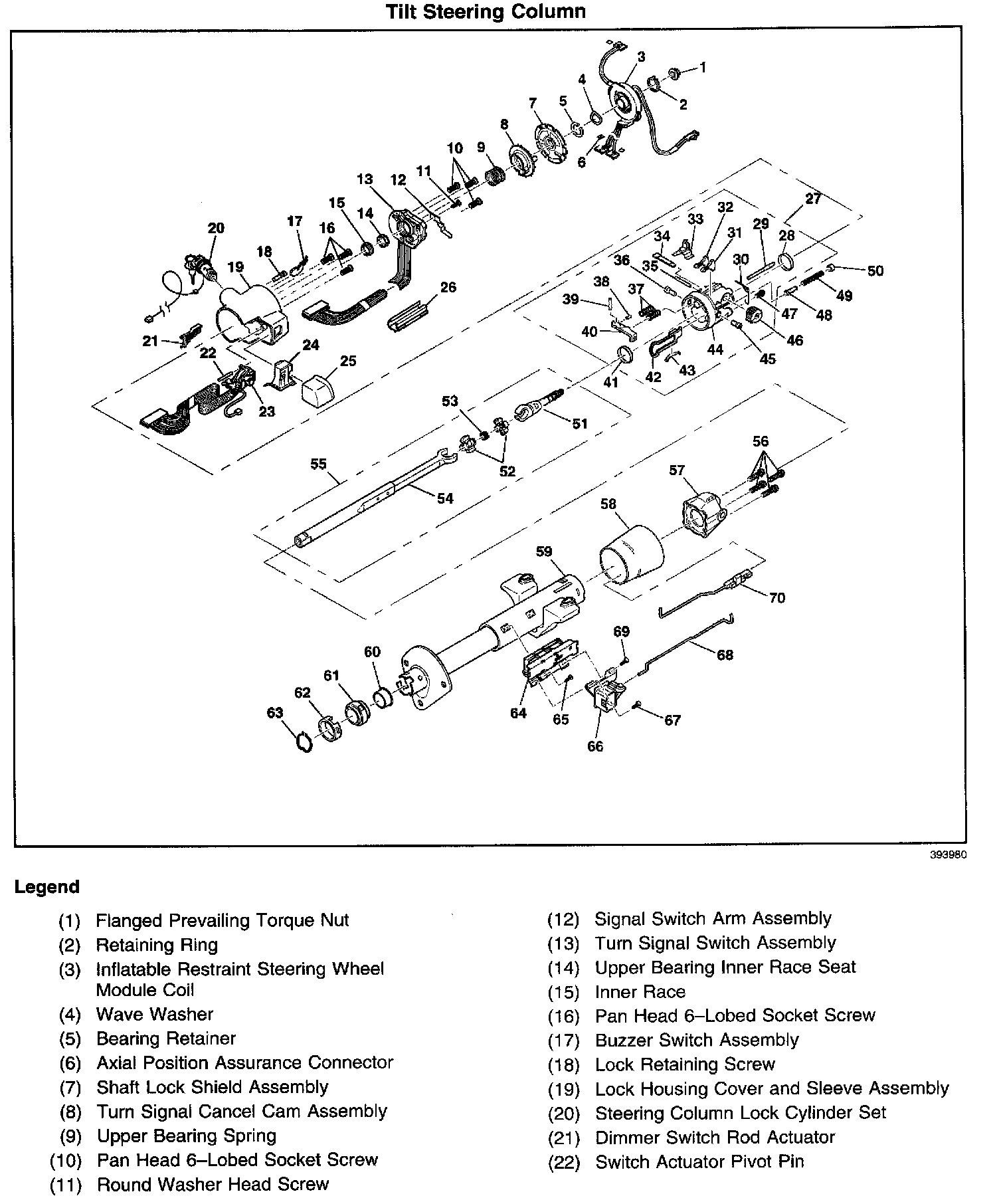

Locations View Part 1:

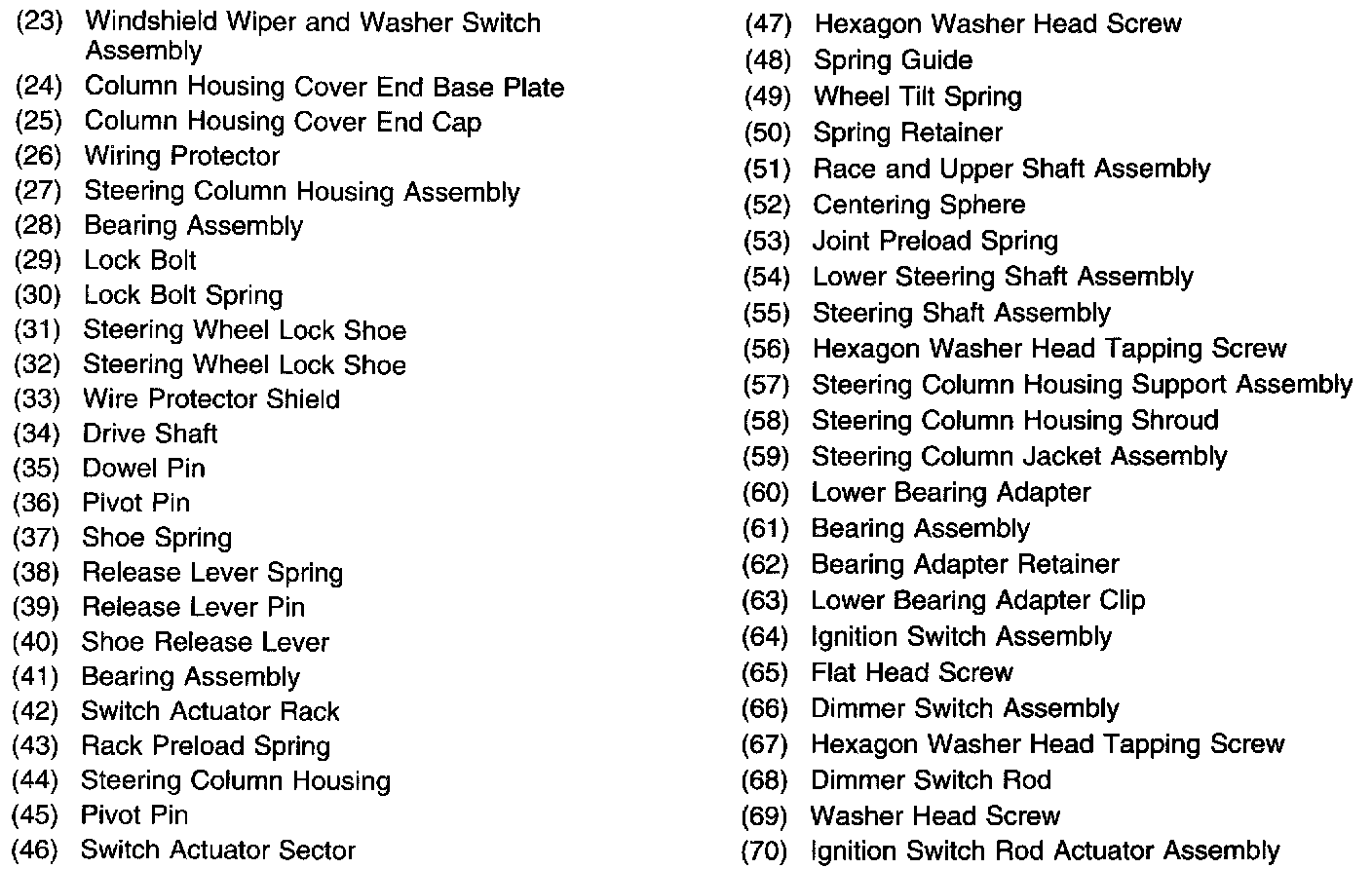

Locations View Part 2:
