Home >> Pontiac >> 2002 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Diagrams >> Exploded Views

Exploded Views

Disassembled Views

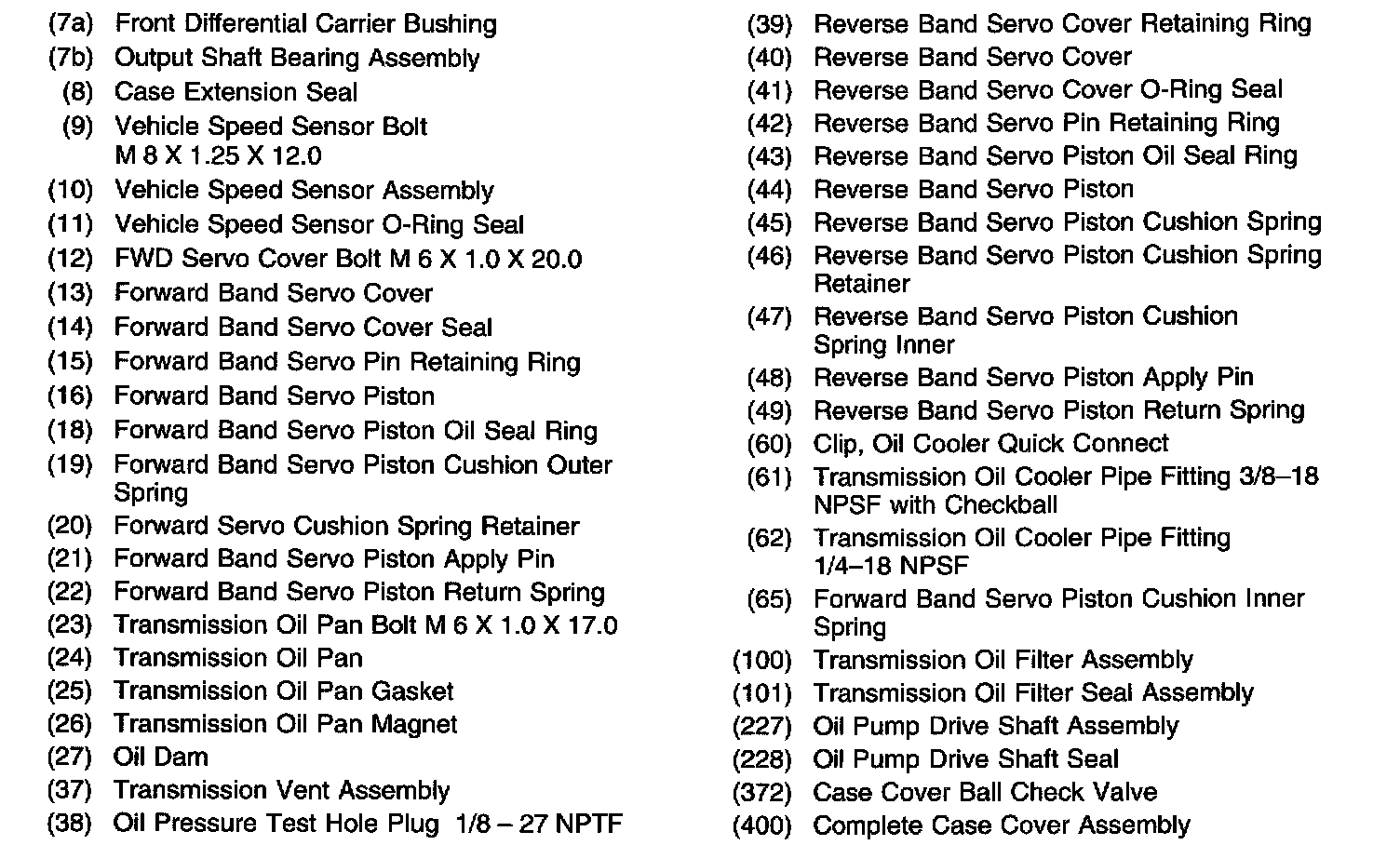

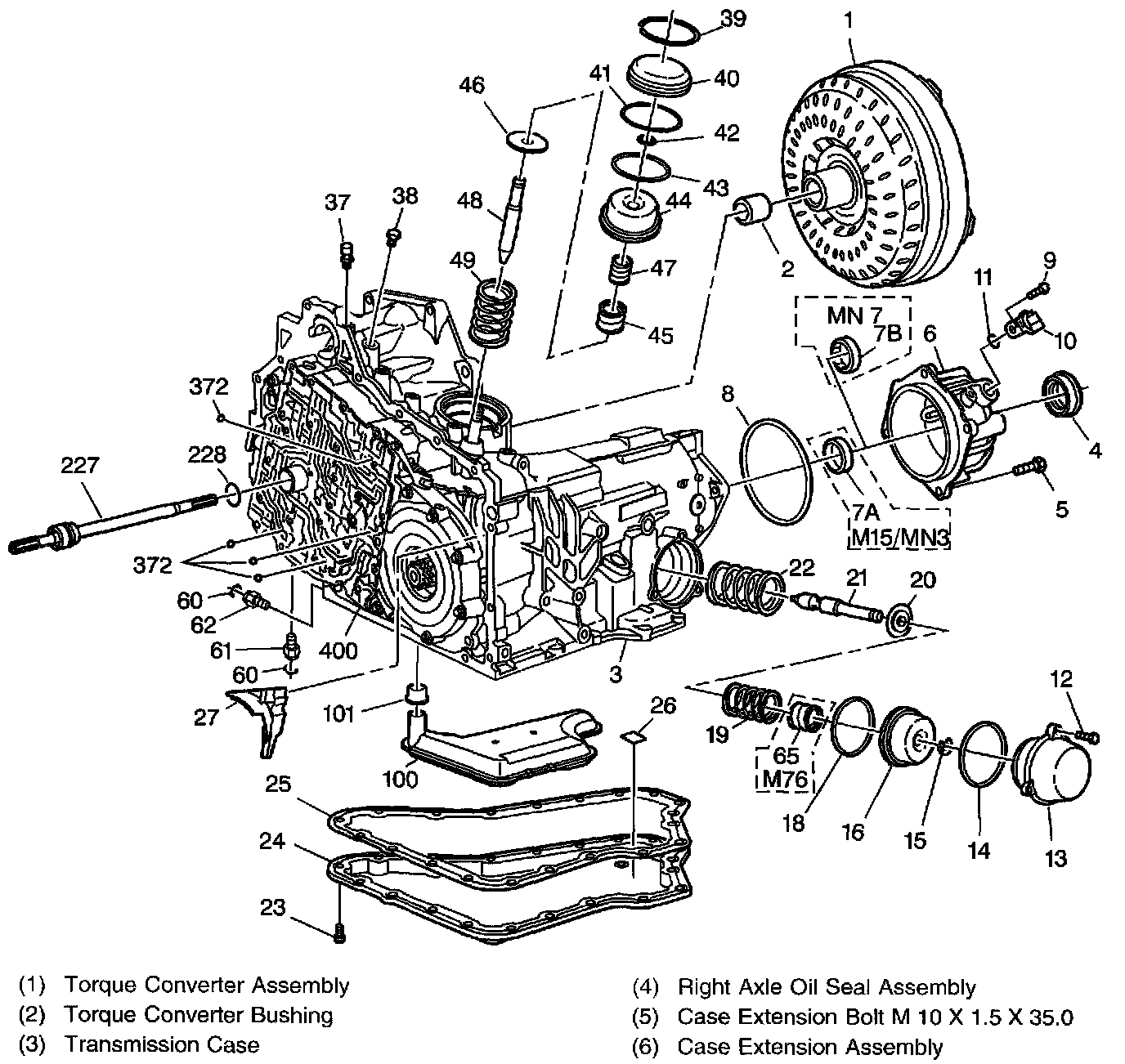

Case and Associated Parts (1 of 4)

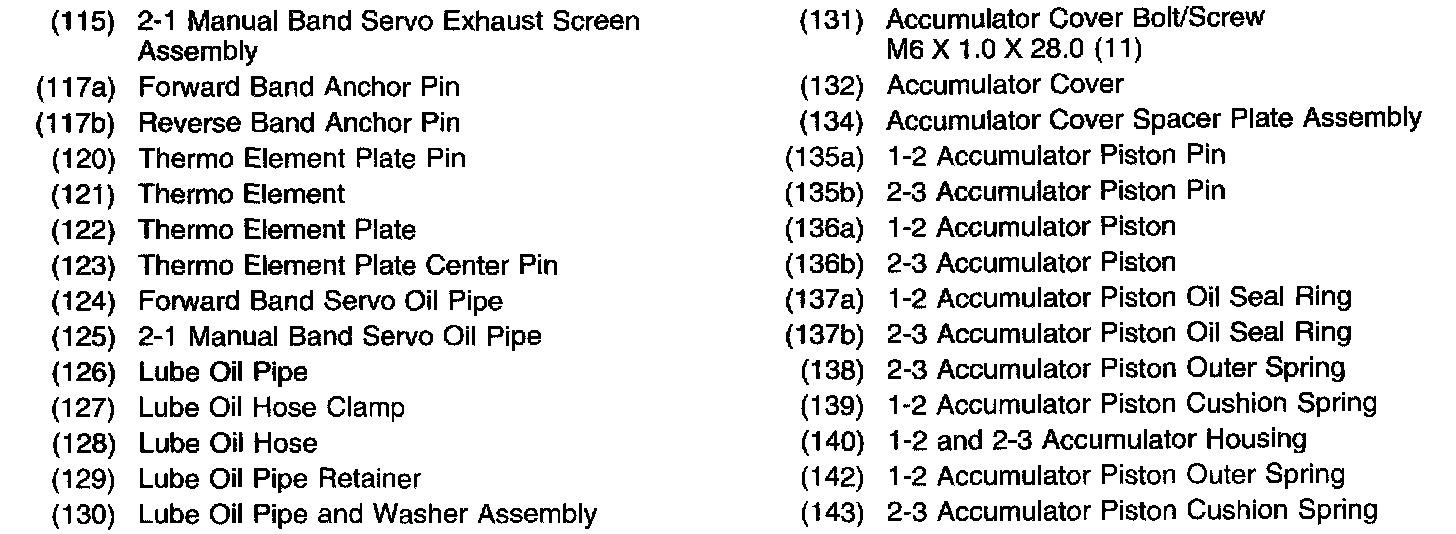

Case and Associated Parts (2 of 4)








Case and Associated Parts (3 of 4)








Case and Associated Parts (4 of 4)

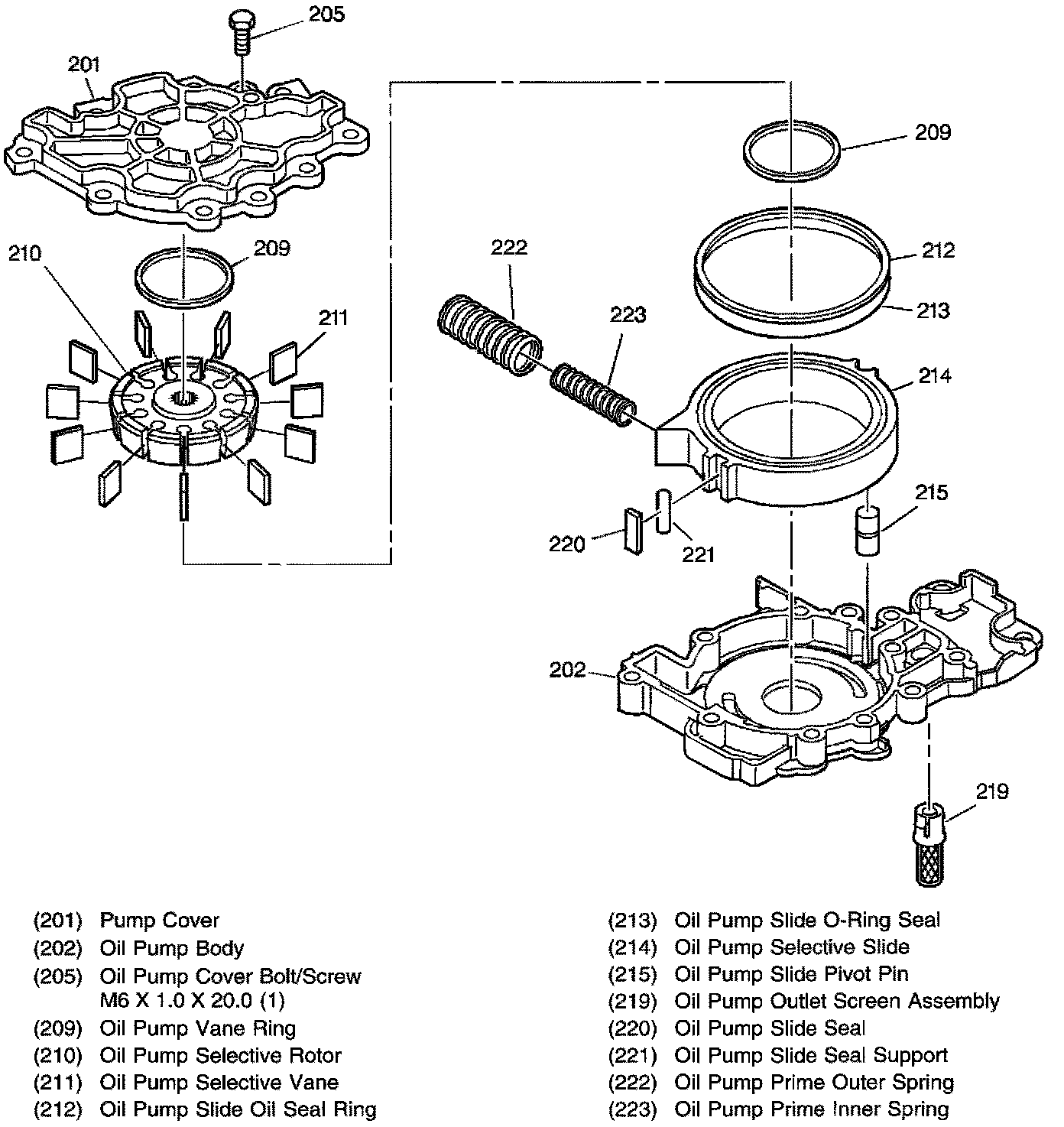

Oil Pump Assembly

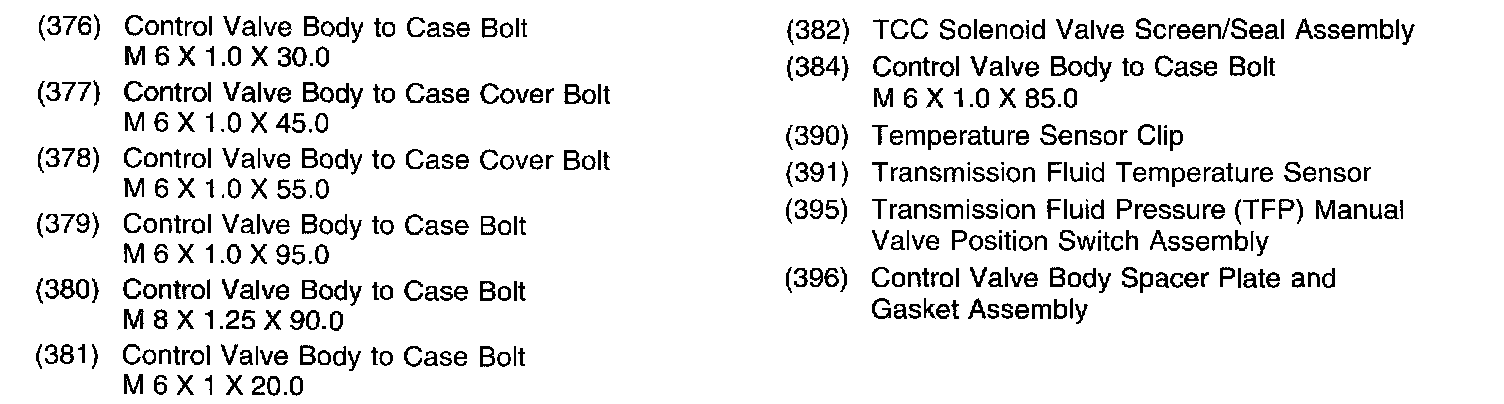

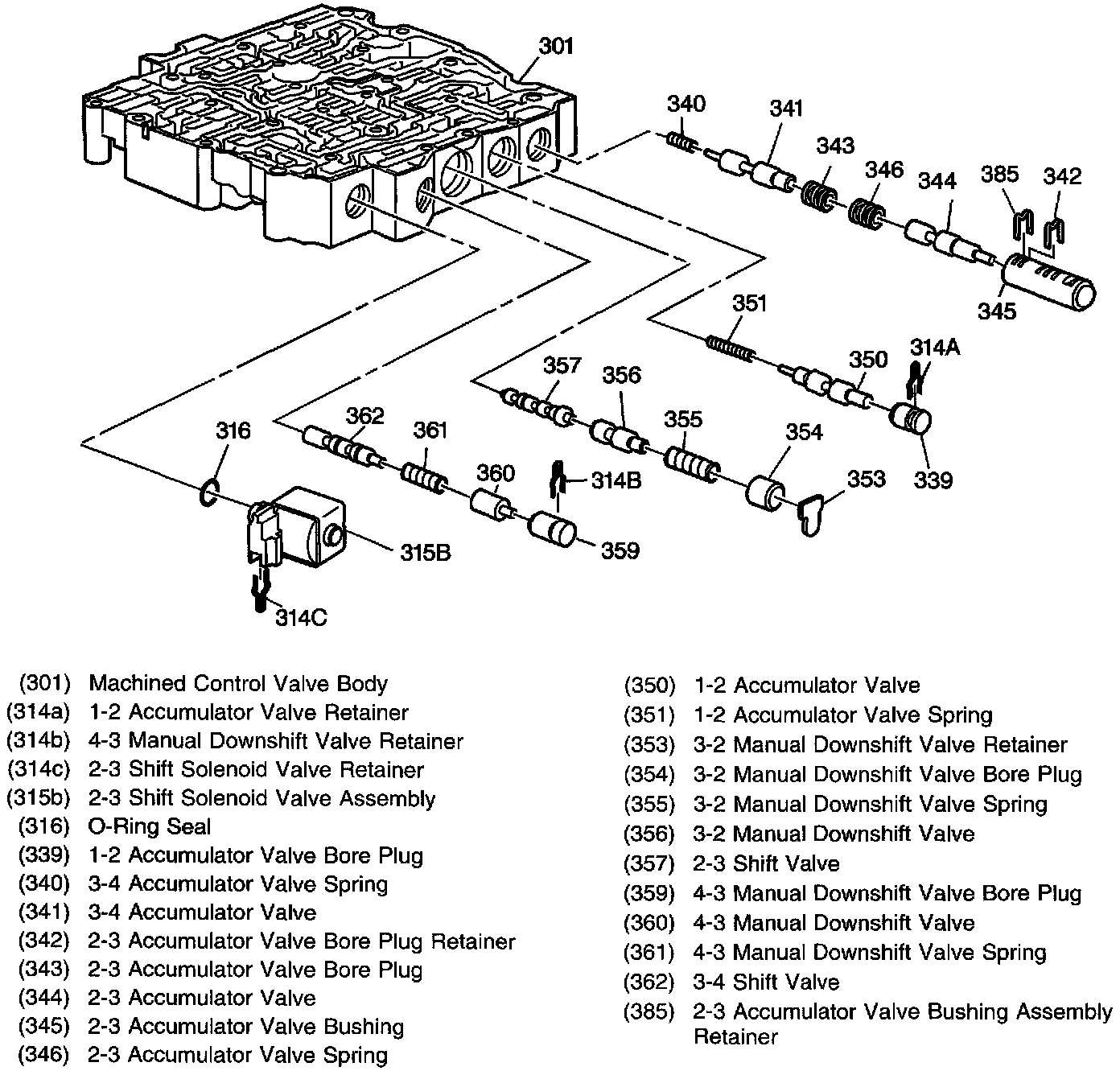

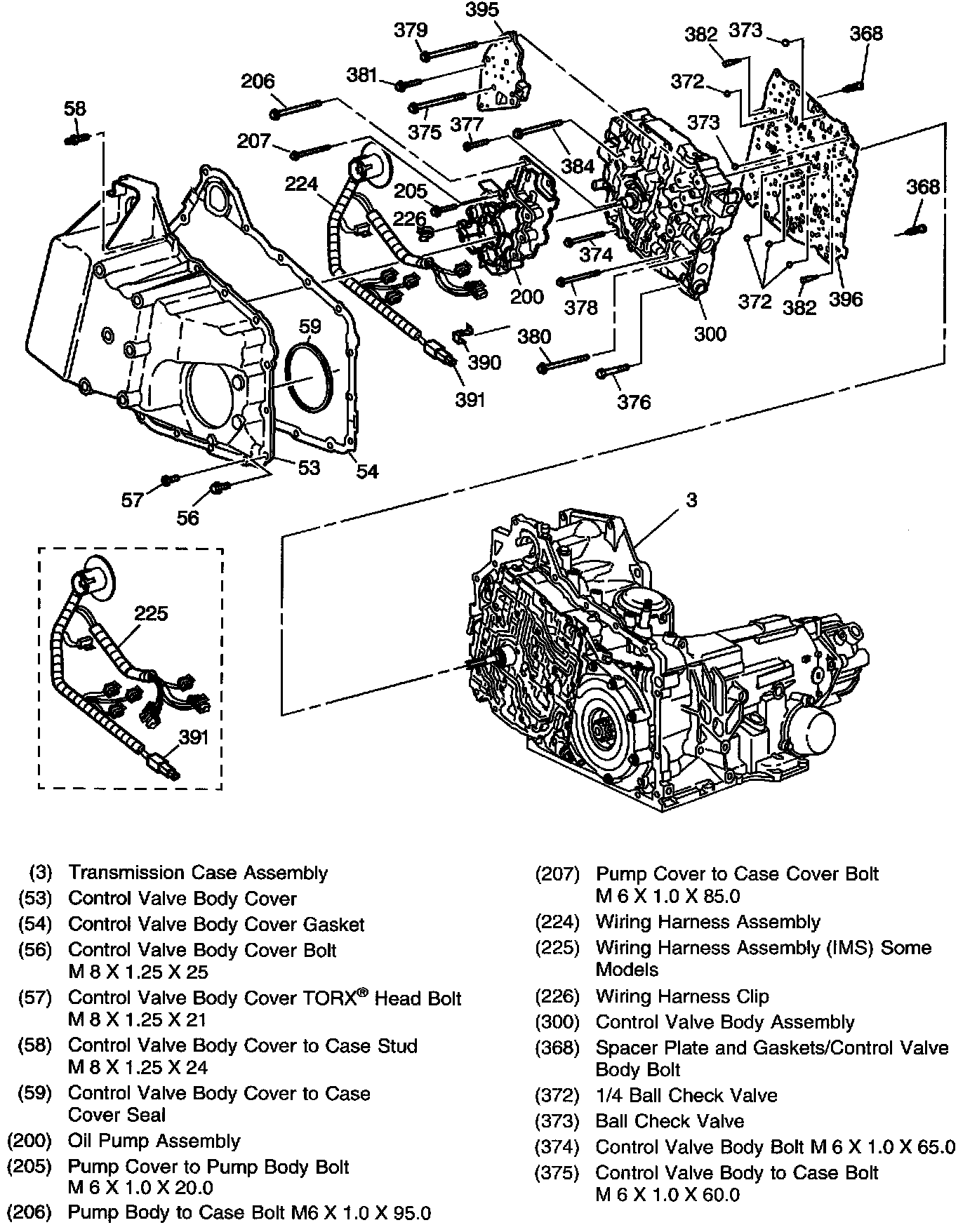

Control Valve Body Assembly (1 of 2)

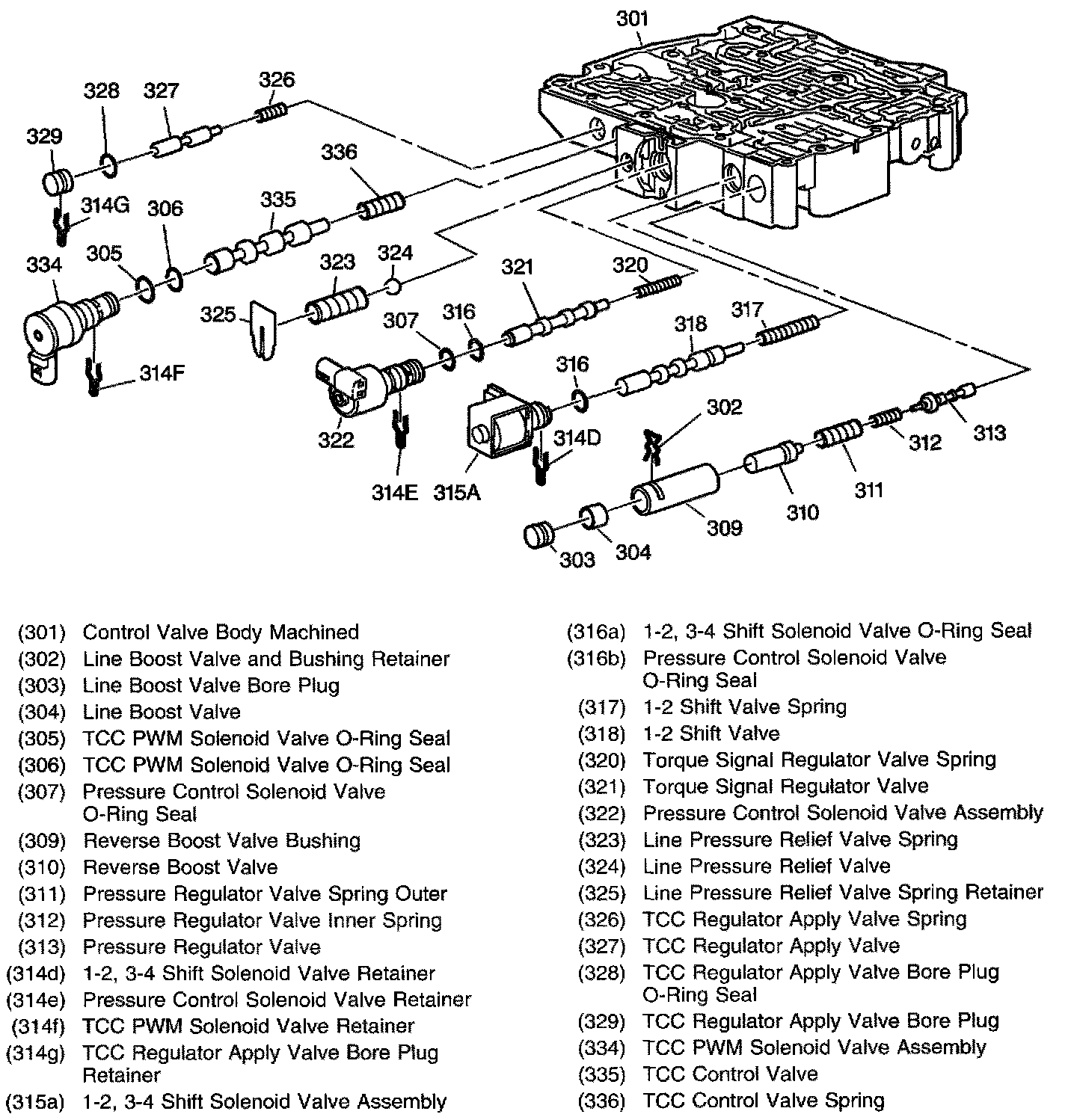

Control Valve Body Assembly (2 of 2)

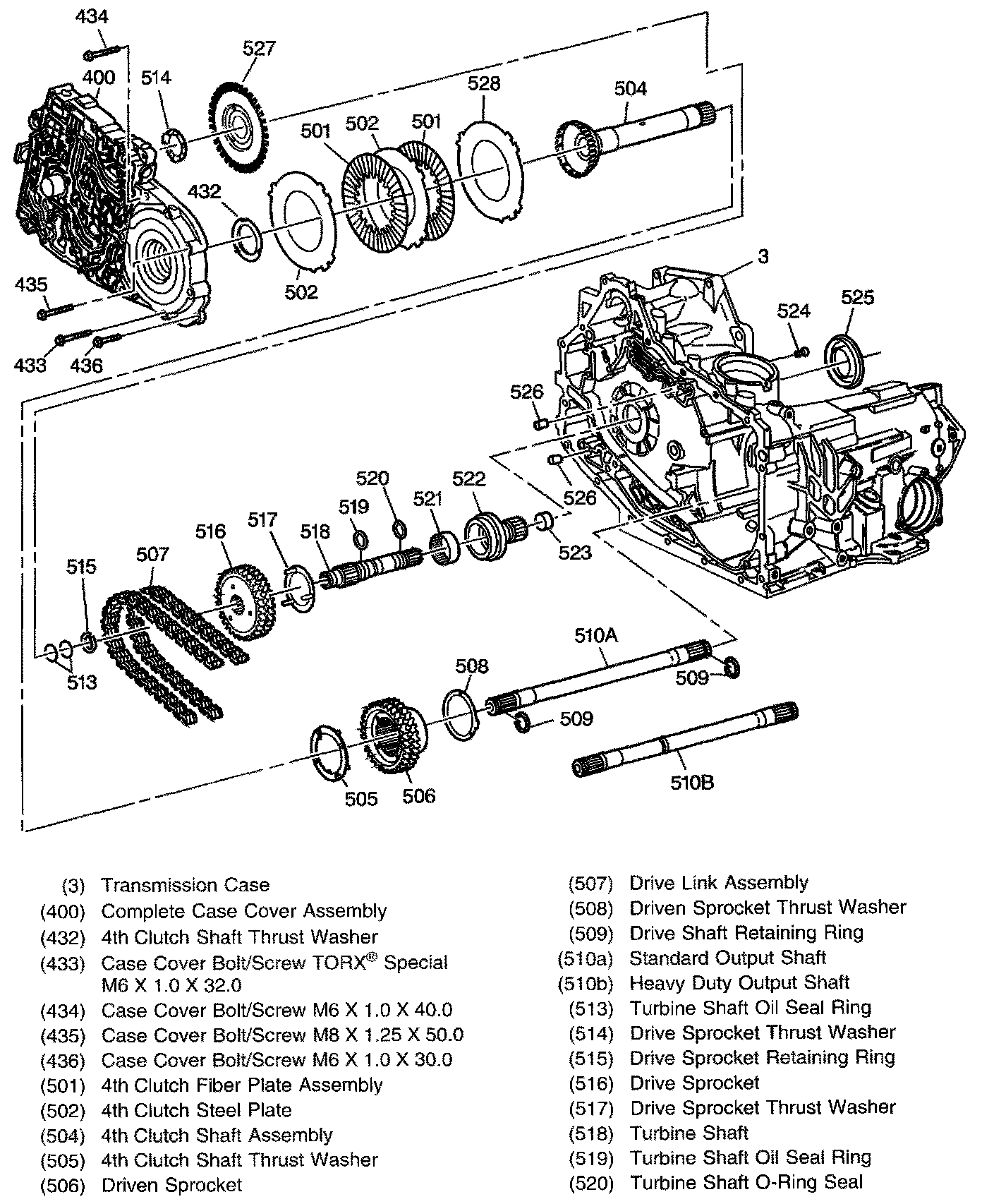

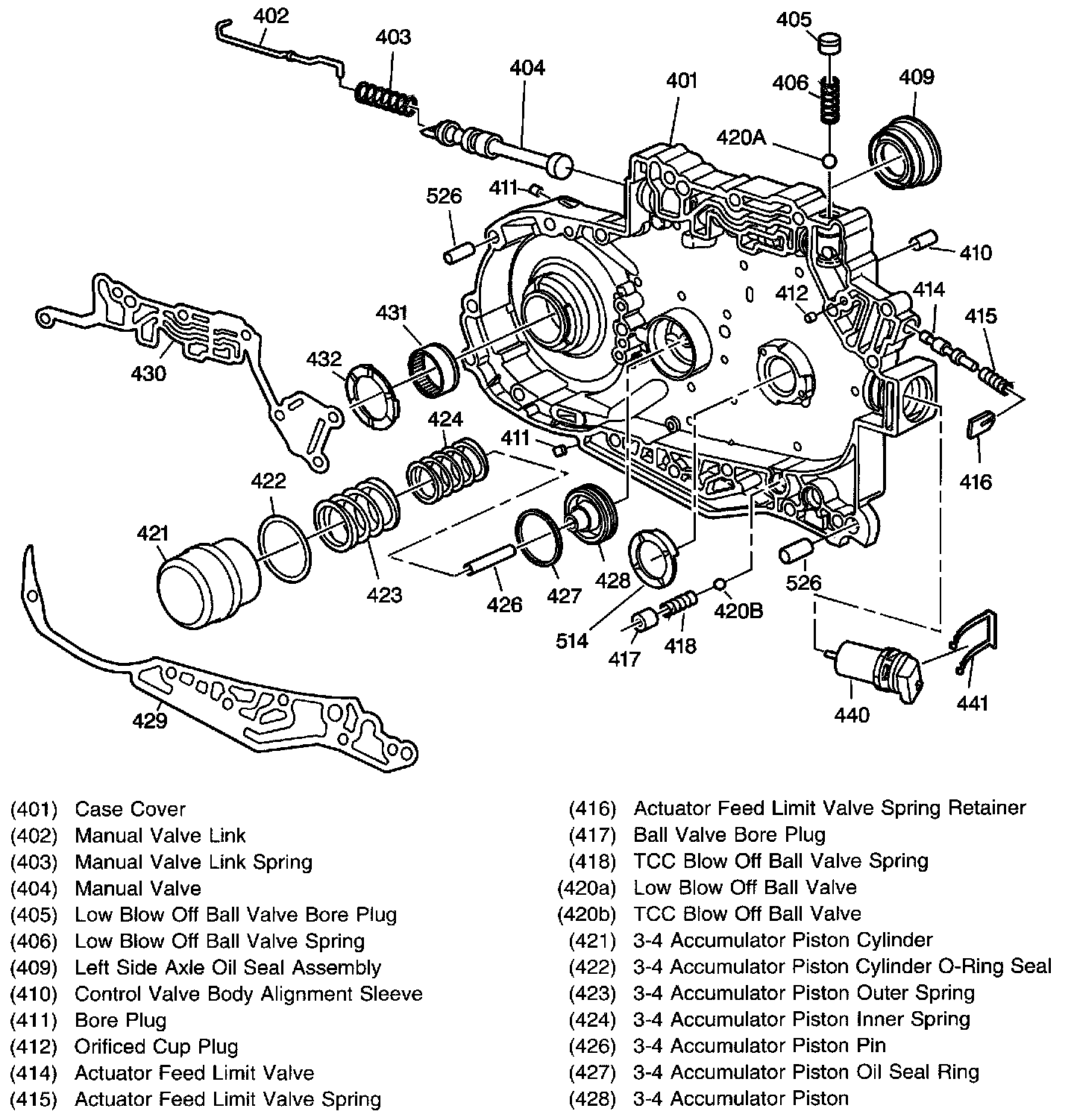

Case Cover Assembly

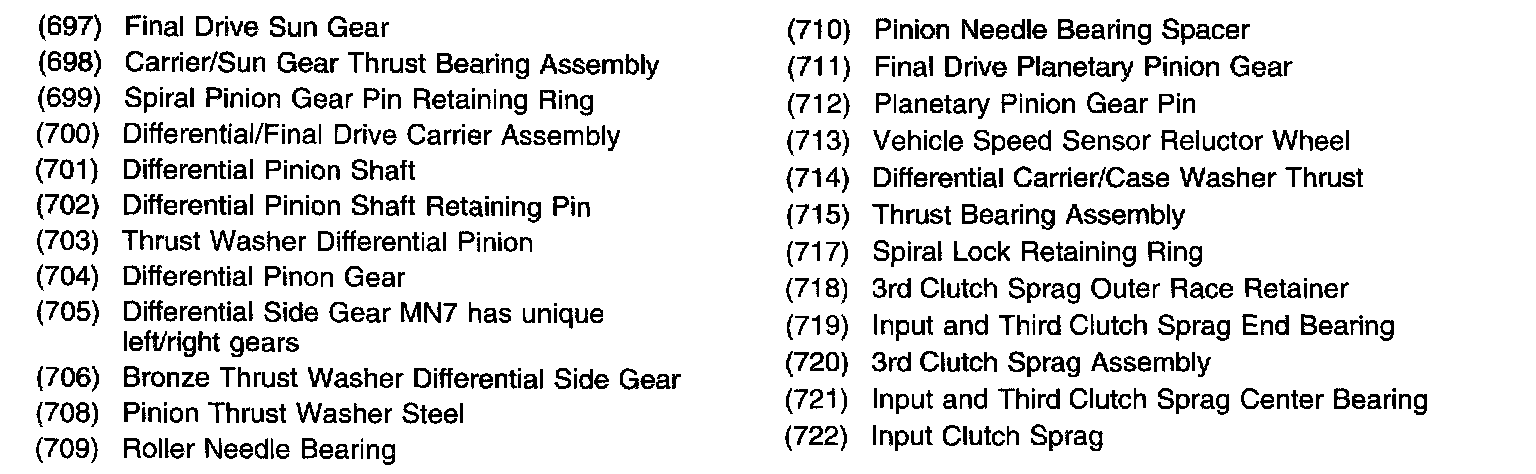

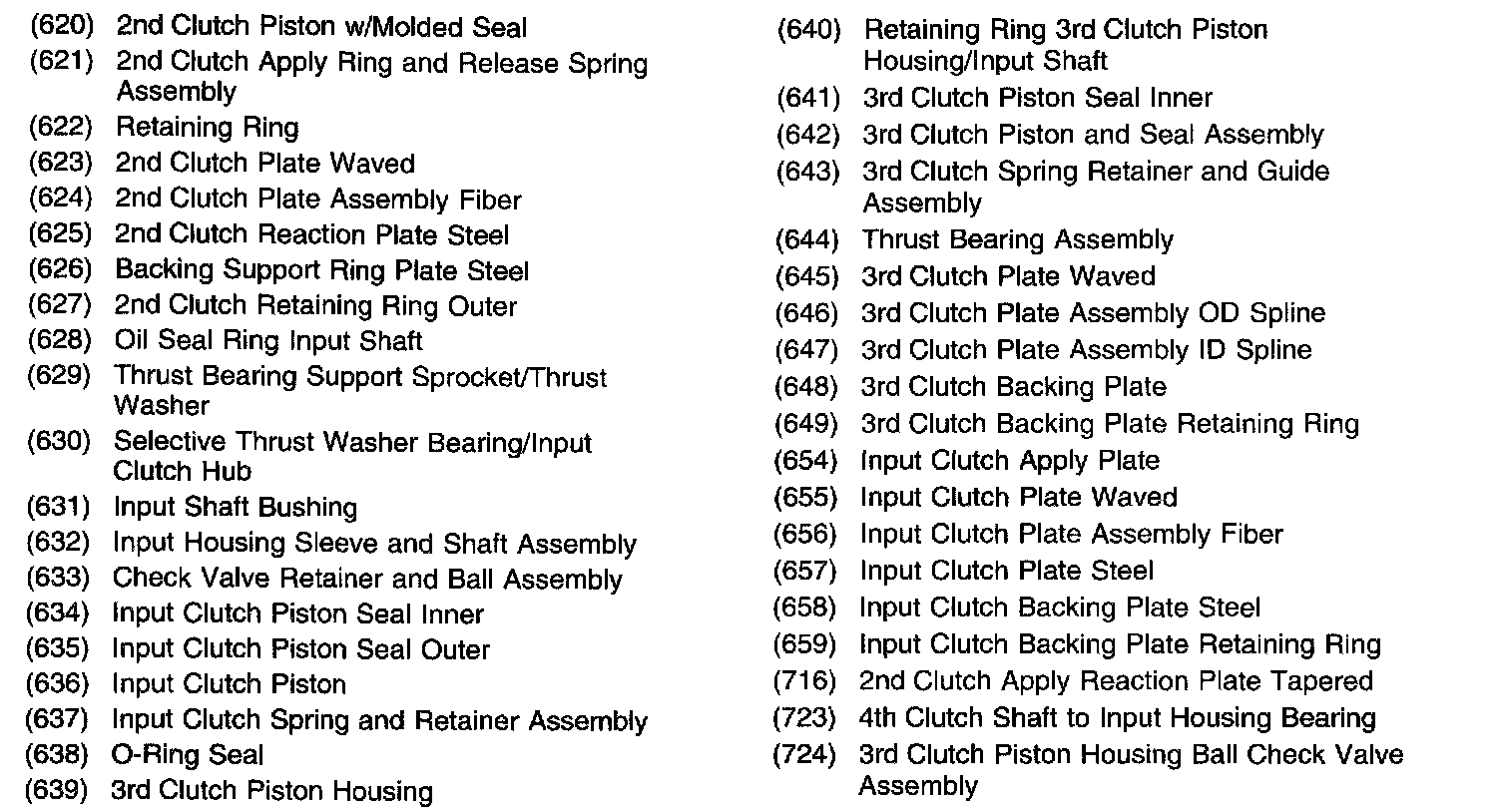

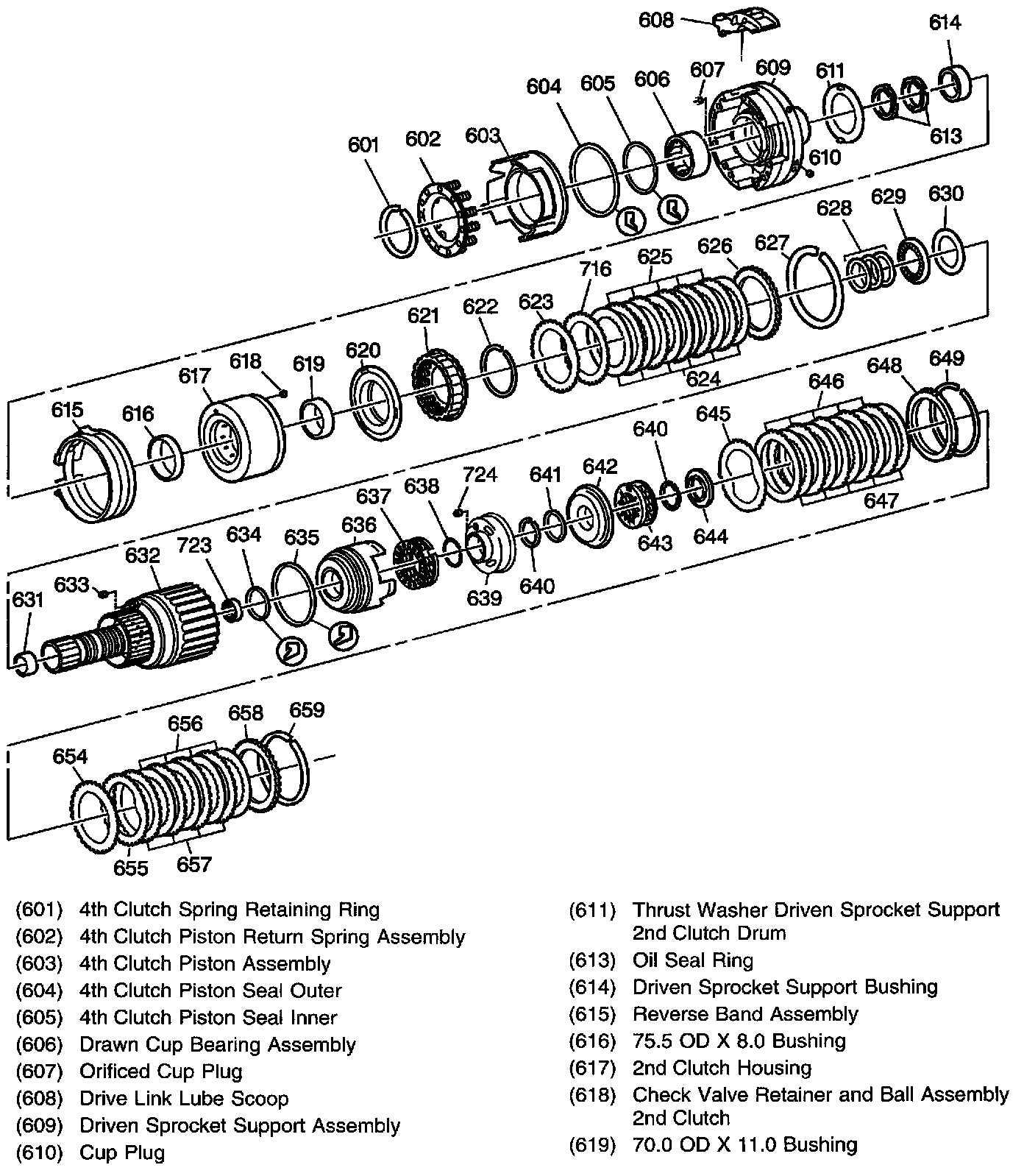

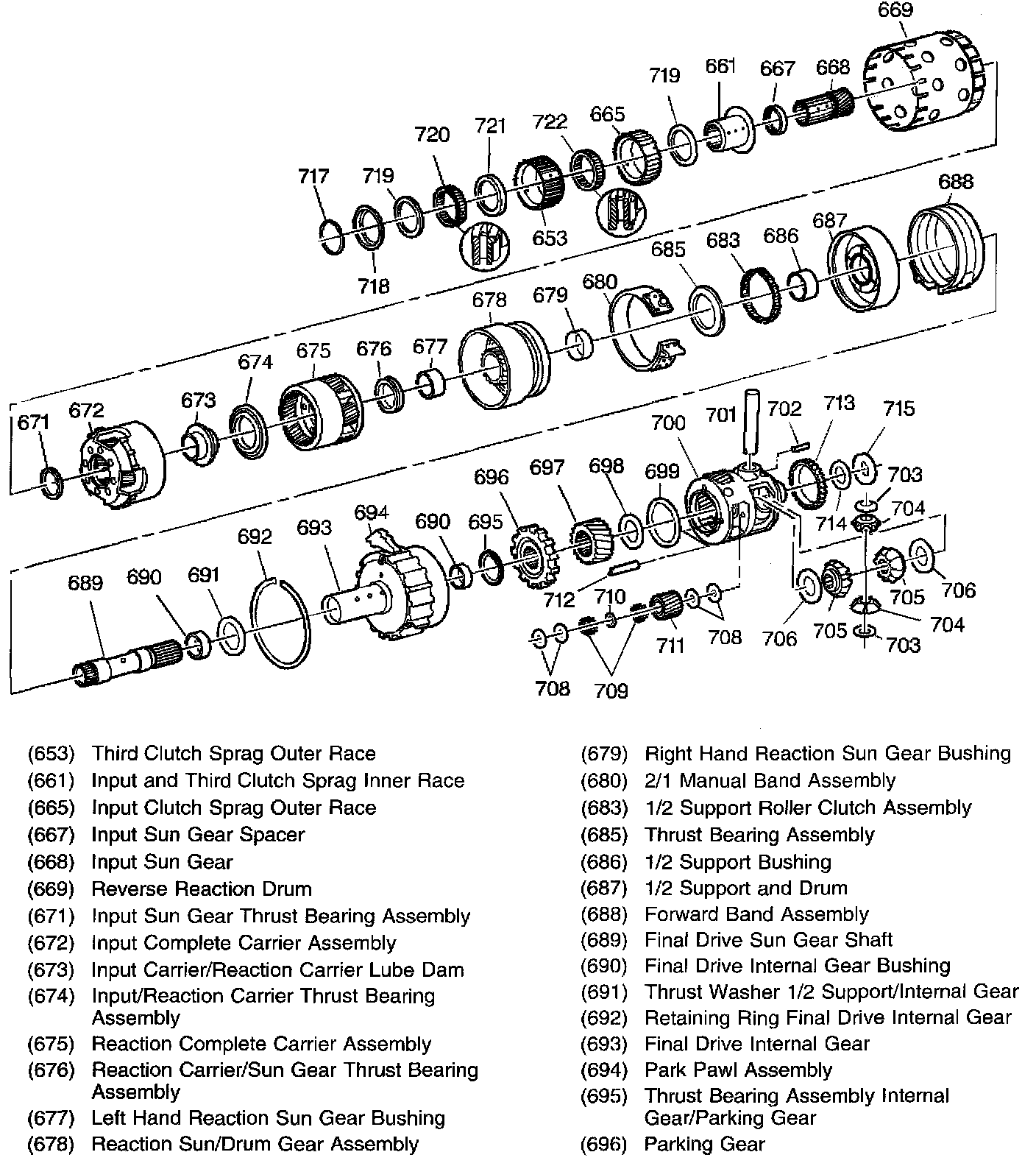

Internal Components (1 of 2)








Internal Components (2 of 2)

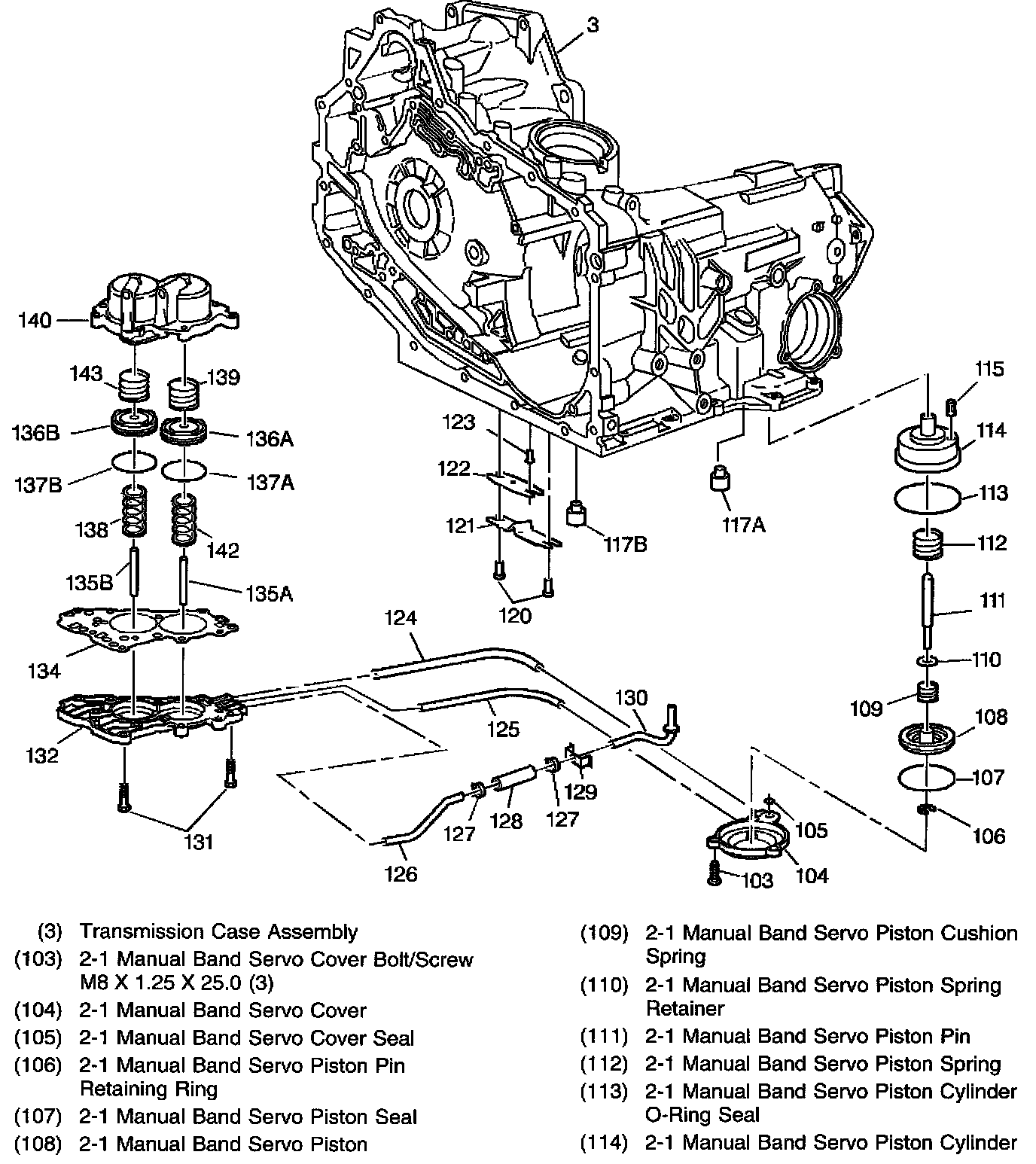

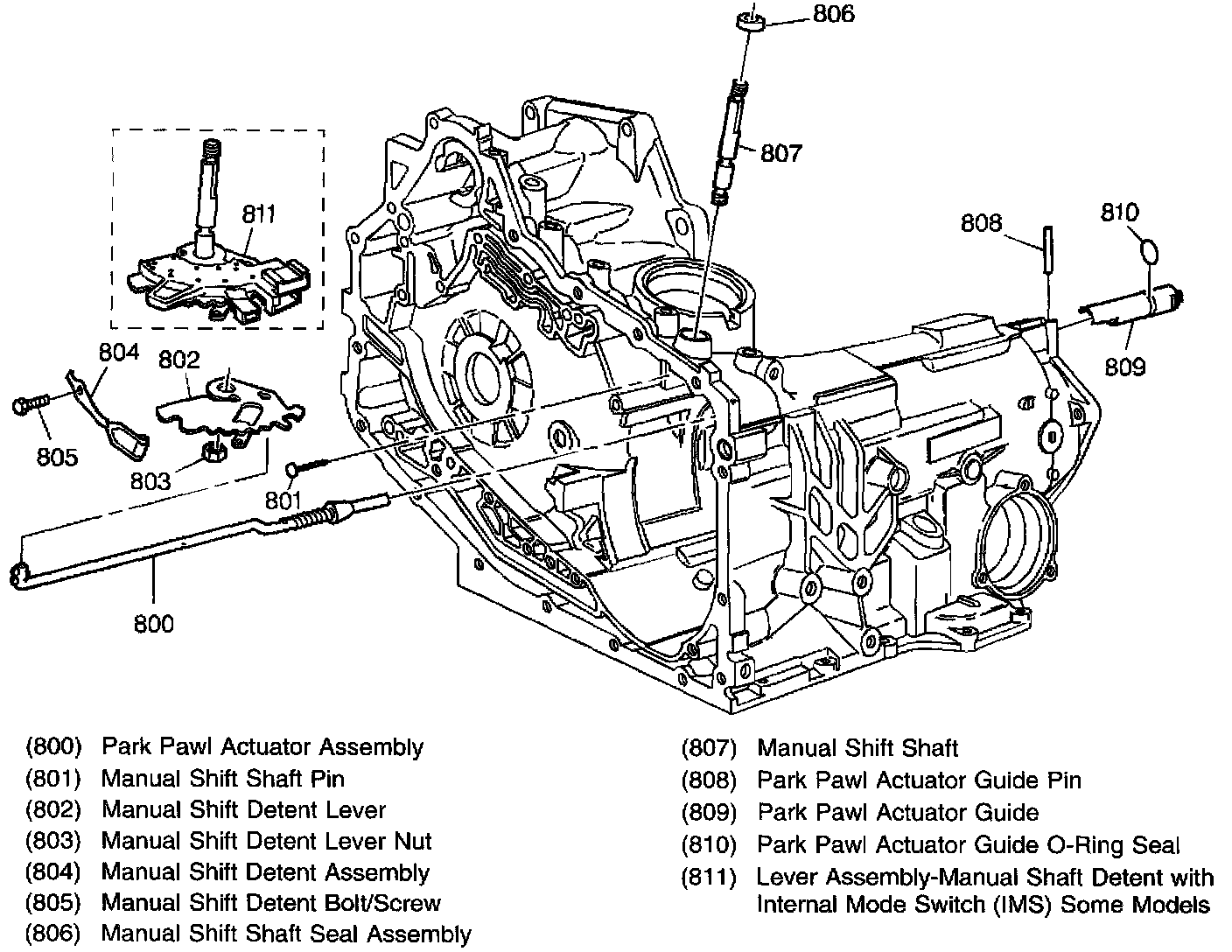

Manual Shaft and Parking System Assembly

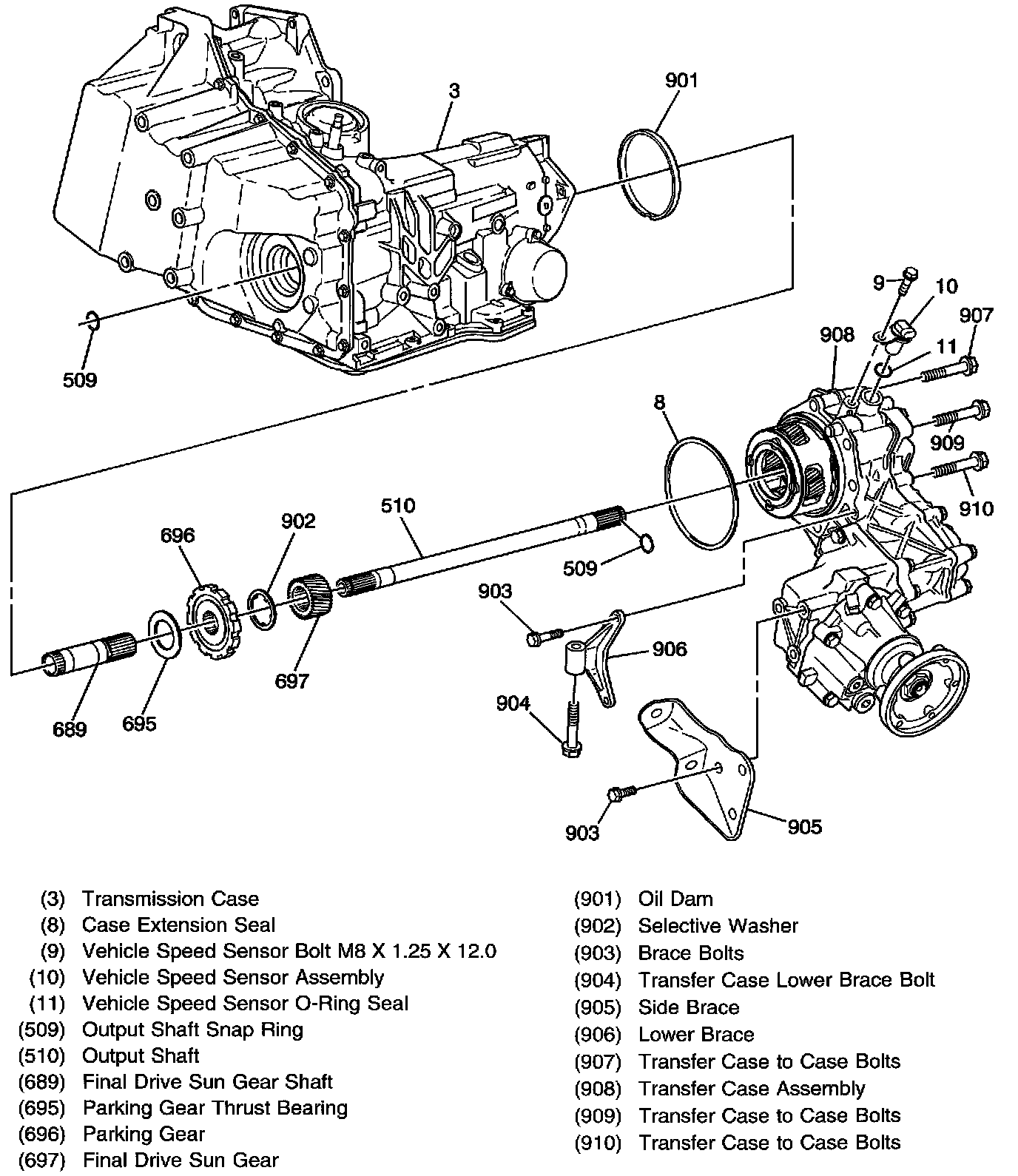

Transmission to Transfer Case Components
