Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the module to the seat frame.
  2. Connect the module to the electrical connector.
  3. Press the module in to engage the connector in the seat frame.
  4. Install the seat cushion trim cover and pad. Refer to SEAT CUSHION COVER REPLACEMENT - FRONT  .

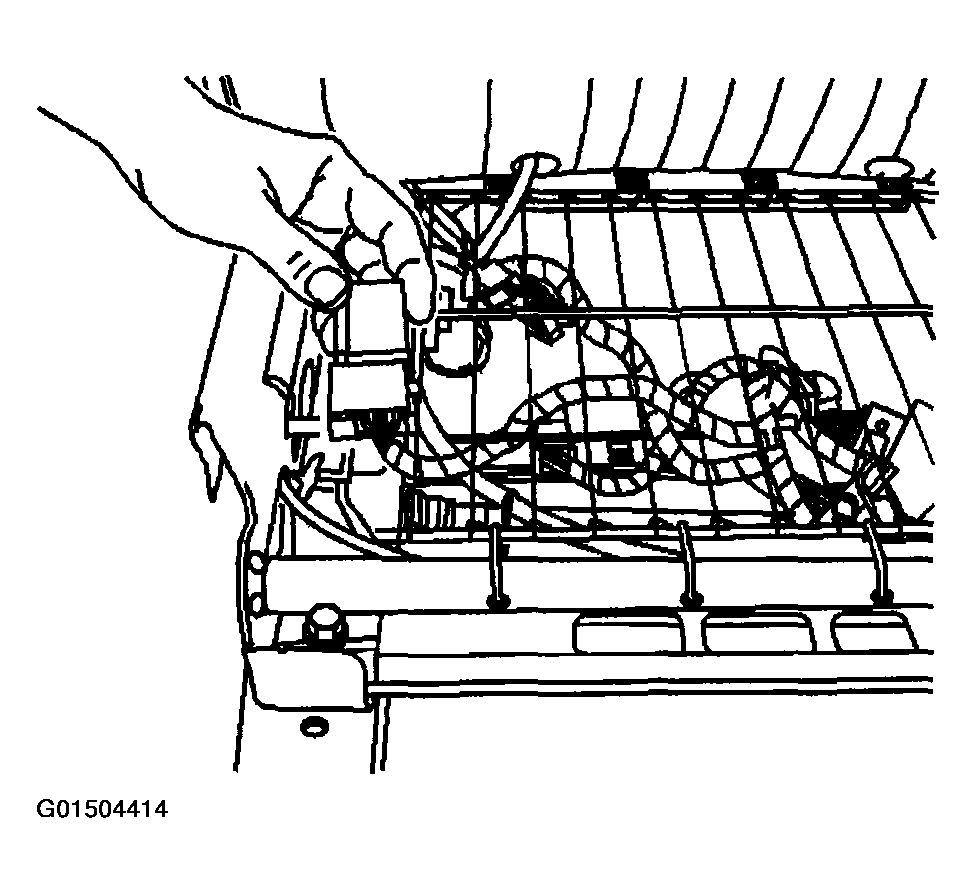

    Fig 1: Connecting Module To Electrical Connector
    G01504414Courtesy of GENERAL MOTORS CORP.
