Home >> Pontiac >> 2002 >> Aztek FWD >> Repair and Diagnosis >> Accessories & Equipment >> Infotainment >> Entertainment System >> Component Locator >> Entertainment Component Views

Entertainment Component Views

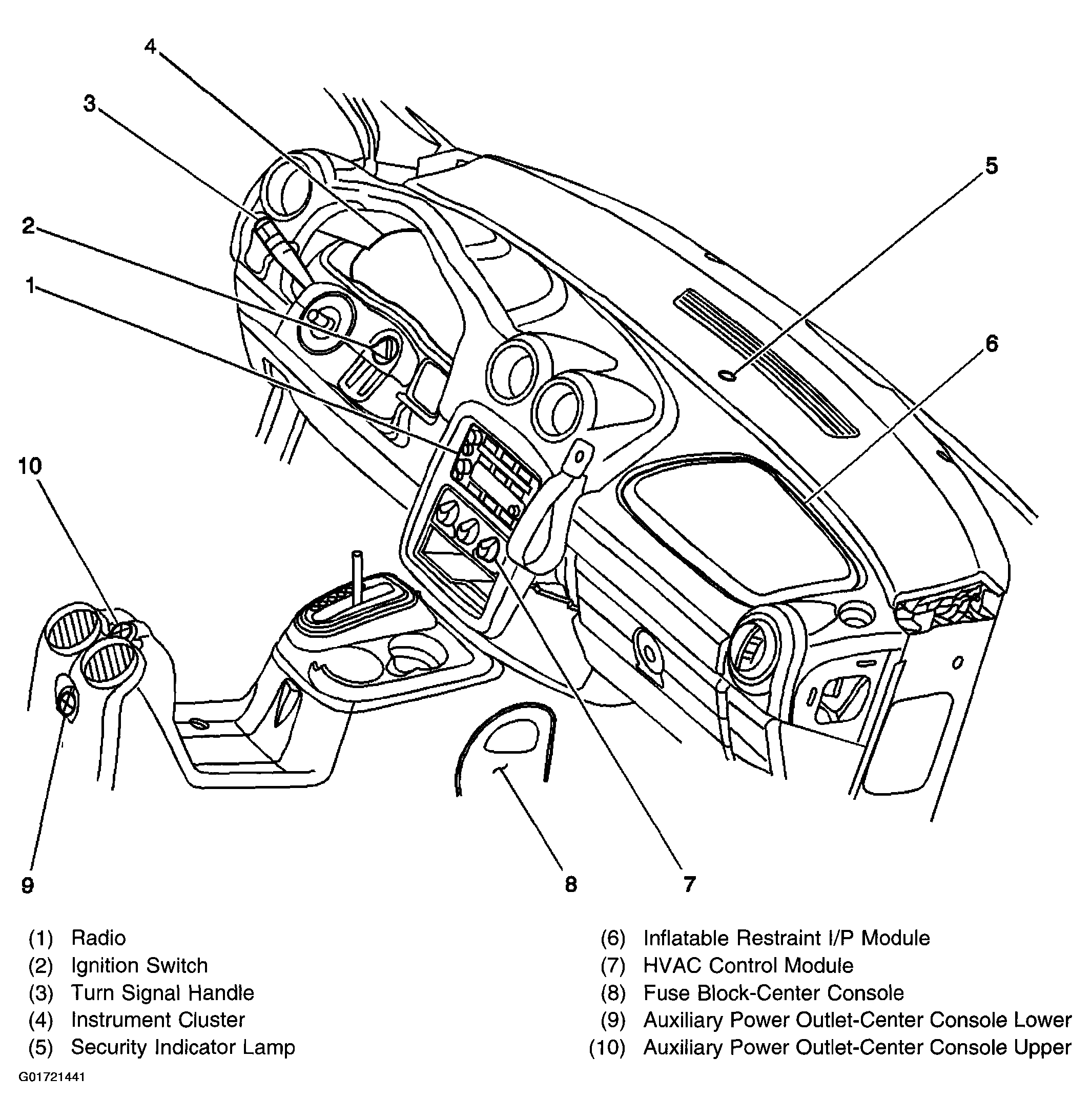

Fig 1: Instrument Panel & Center Console Component Views - Pontiac
G01721441Courtesy of GENERAL MOTORS CORP.

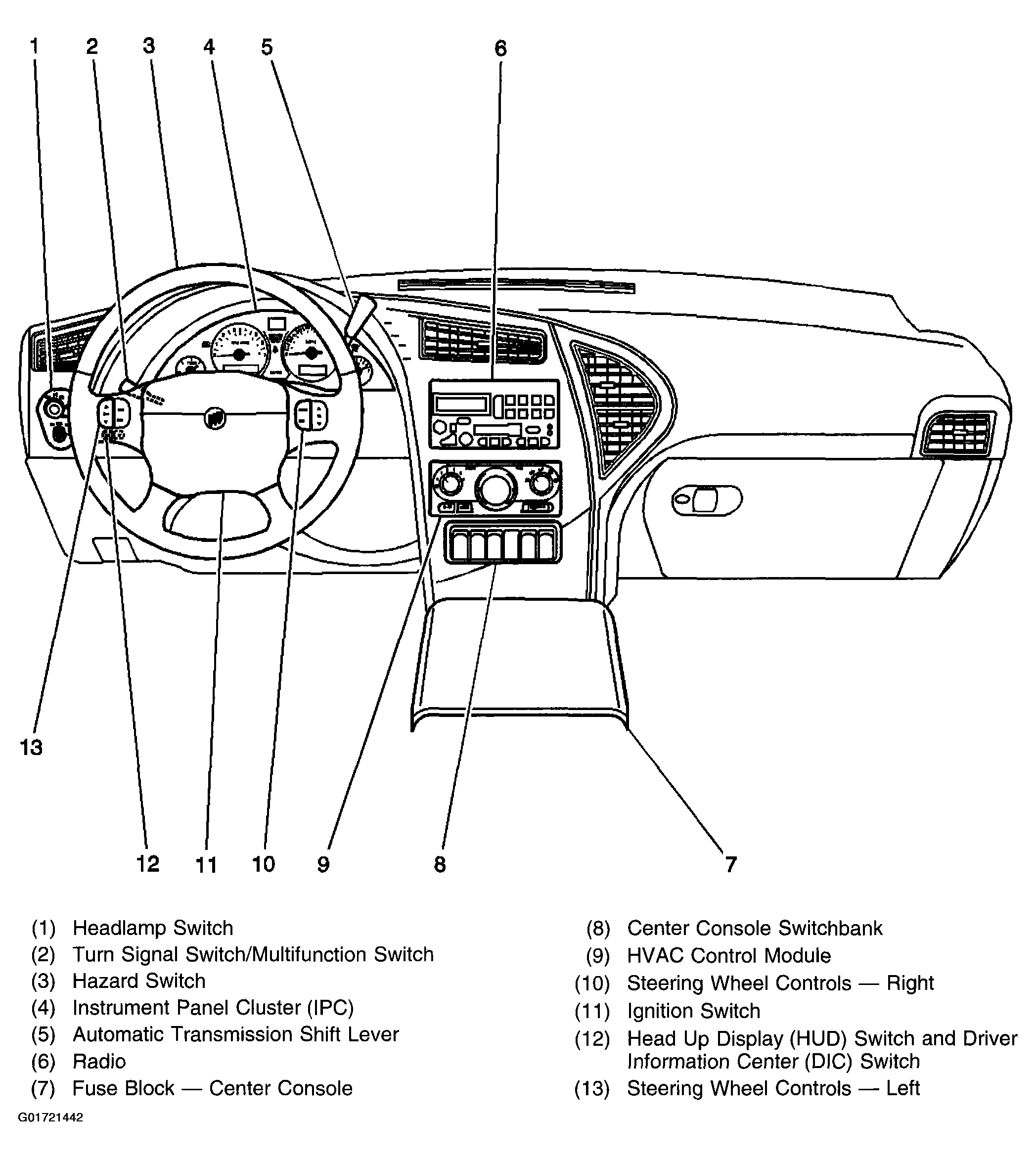

Fig 2: Instrument Panel Component Views - Buick
G01721442Courtesy of GENERAL MOTORS CORP.
