Installation Procedure

  1. Connect the security indicator lamp electrical connector to the security indicator lamp.
  2. Install the security indicator lamp (3) to the instrument panel upper trim:
    1. 2.1. Insert the lamp.
    2. 2.2. Rotate the lamp clockwise to approximately 1/4 turn.
  3. Install the instrument panel upper trim. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER (AZTEK) and TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER (RENDEZVOUS) in Instrument Panel, Gages, and Console.

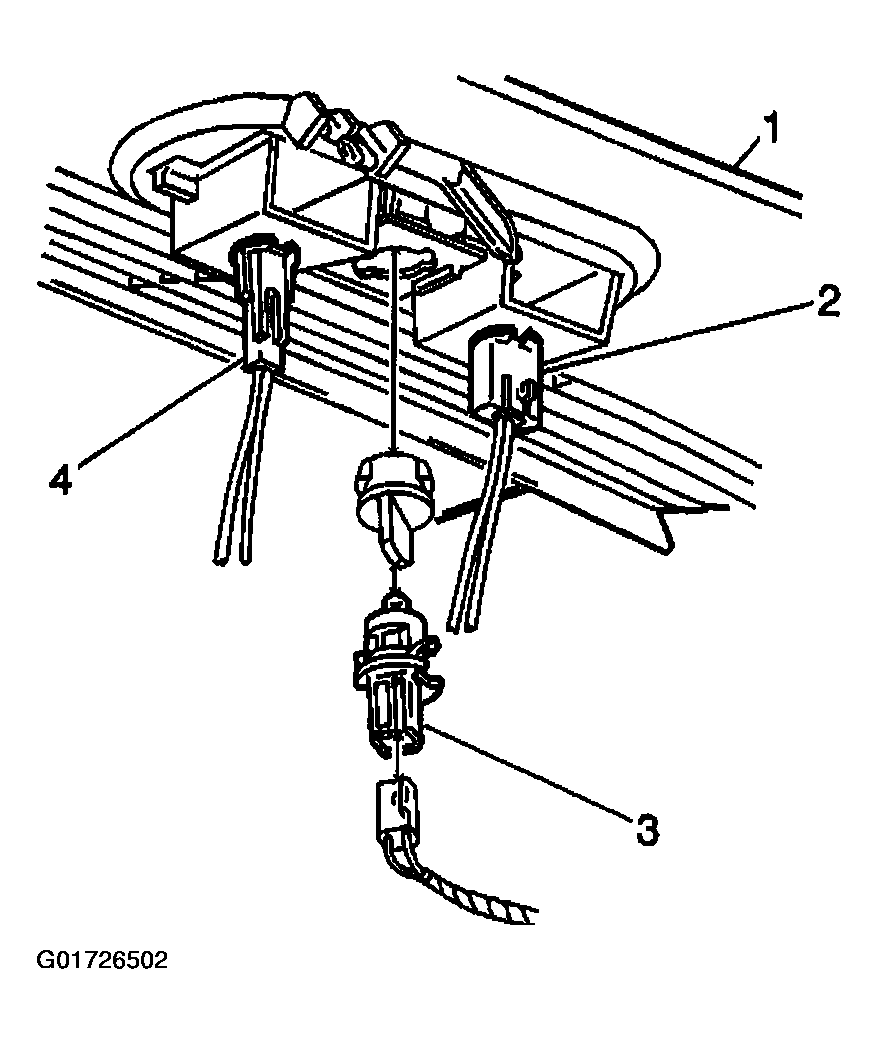

    Fig 1: View Of Security Indicator Lamp
    G01726502Courtesy of GENERAL MOTORS CORP.
