Electronic Brake Control Module

Electronic Brake Control Module (EBCM), Connector C1

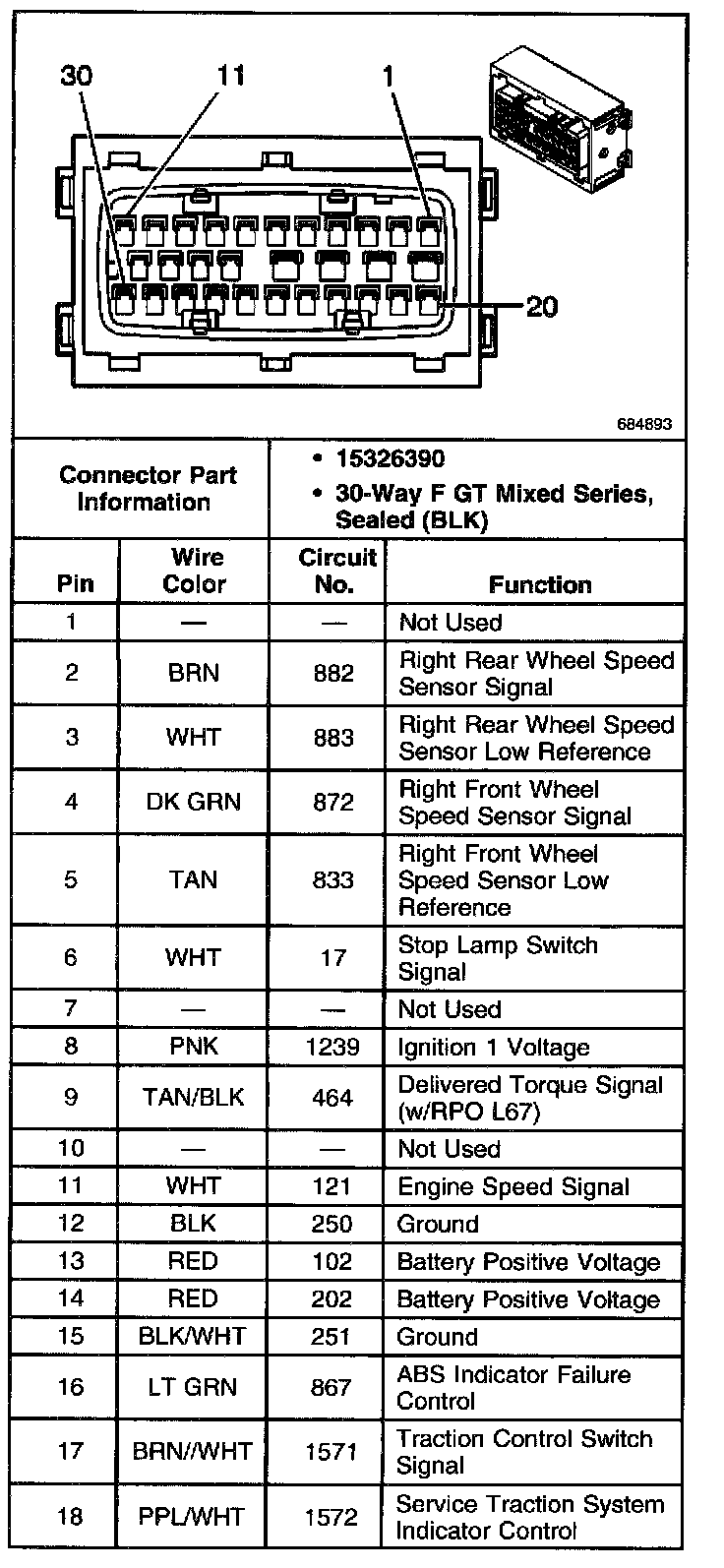

Part 1 of 2

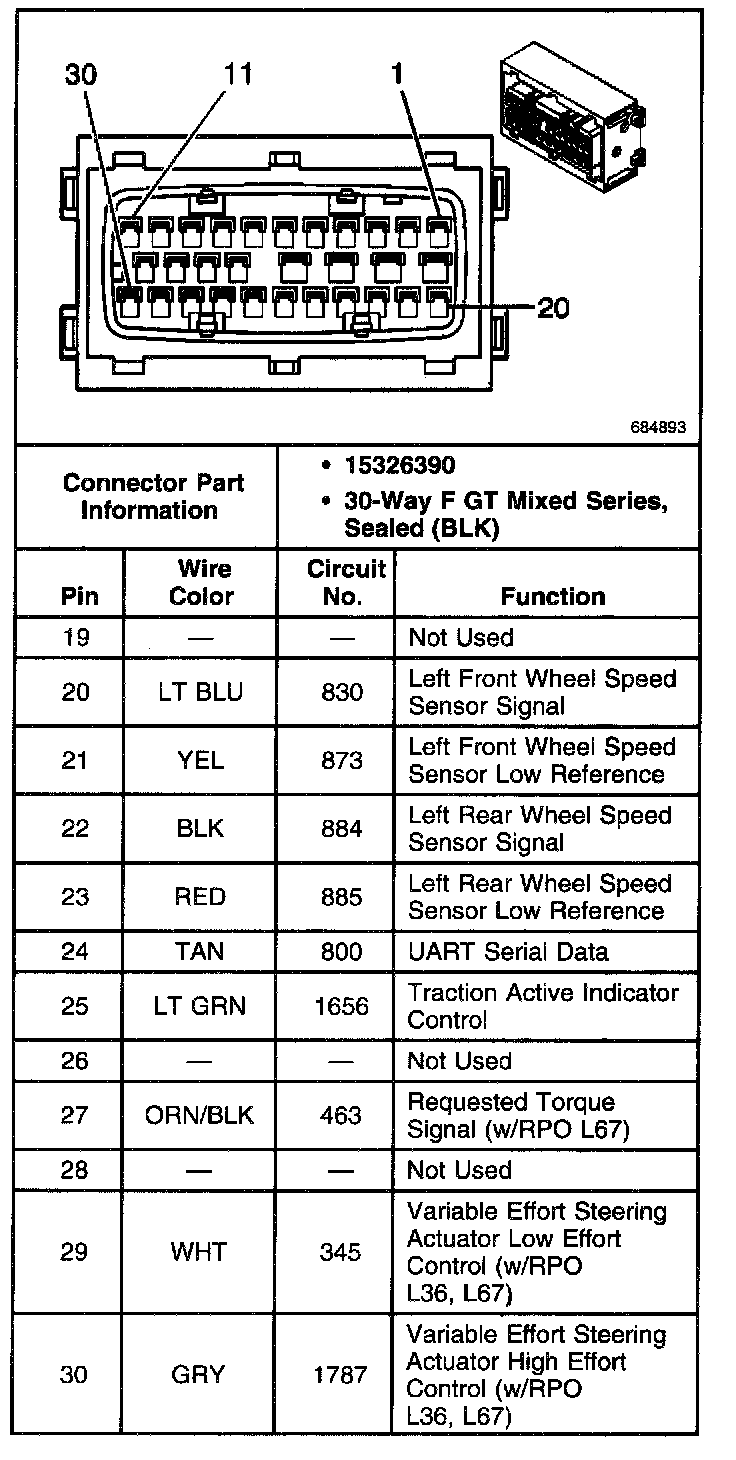

Part 2 of 2
