Daytime Running Lamp Control Unit
>>
Daytime Running Lamp (DRL) Control Module C2
Daytime Running Lamp (DRL) Control Module C2

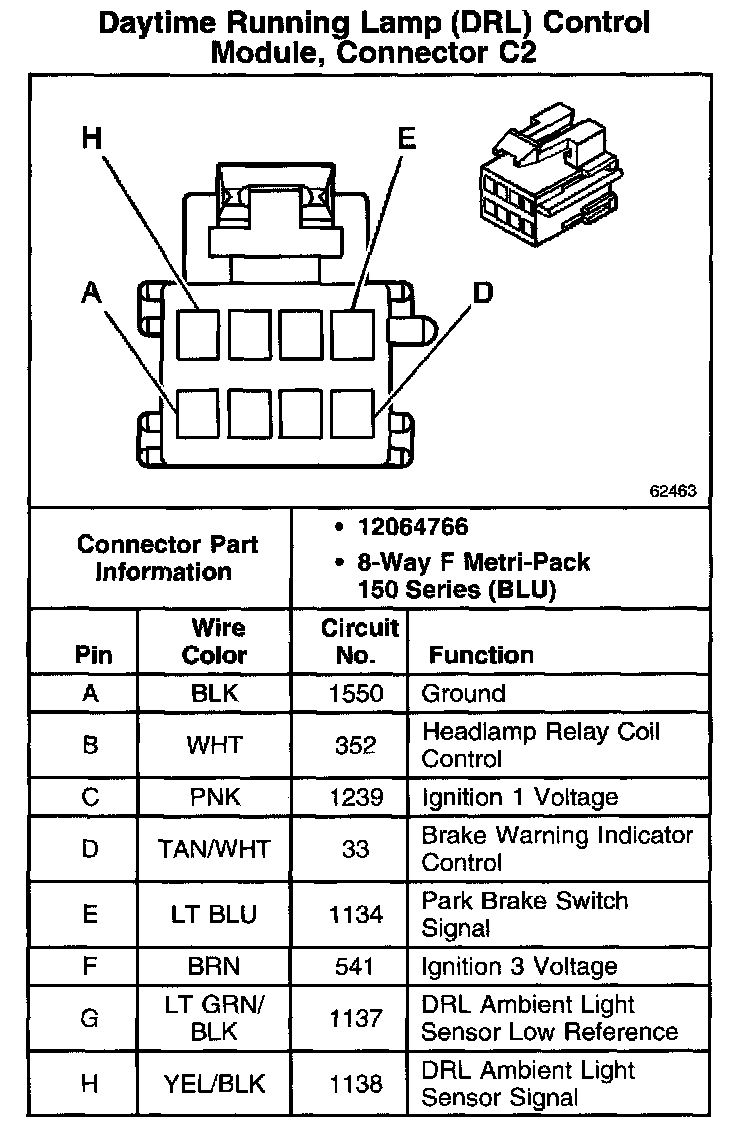

Daytime Running Lamp (DRL) Control Module, Connector C2:
