Home >> Pontiac >> 2001 >> Grand Prix V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Turn Signal/Hazard Flasher Module

Turn Signal/Hazard Flasher Module

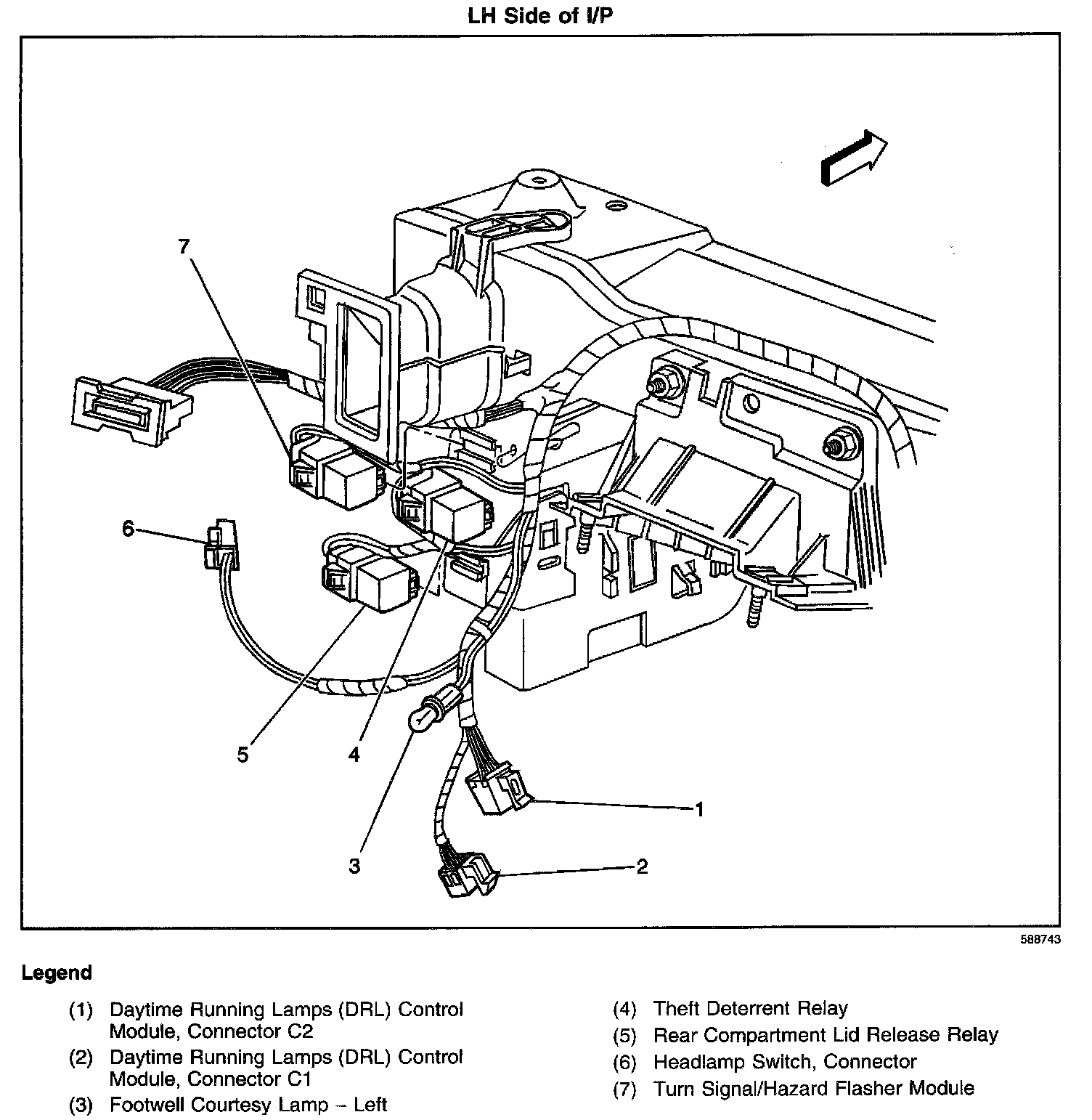

Locations View:

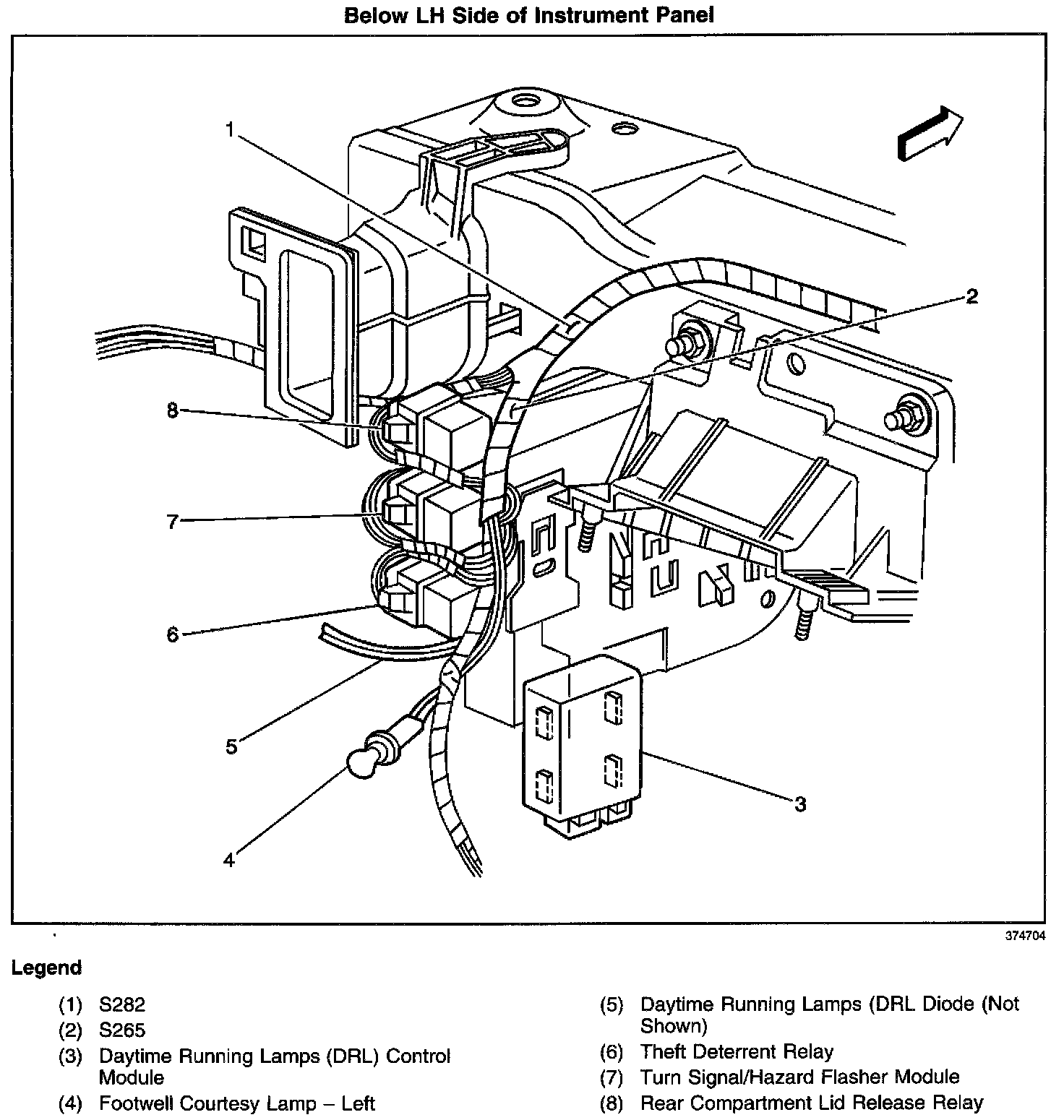

Locations View:




Locations View:




Below the left side of the IP, mounted to the leading face of the BCM mounting bracket
