Home >> Pontiac >> 2001 >> Grand Prix V6-3.1L VIN J >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems >> Theft Deterrent Control Module

Theft Deterrent Control Module

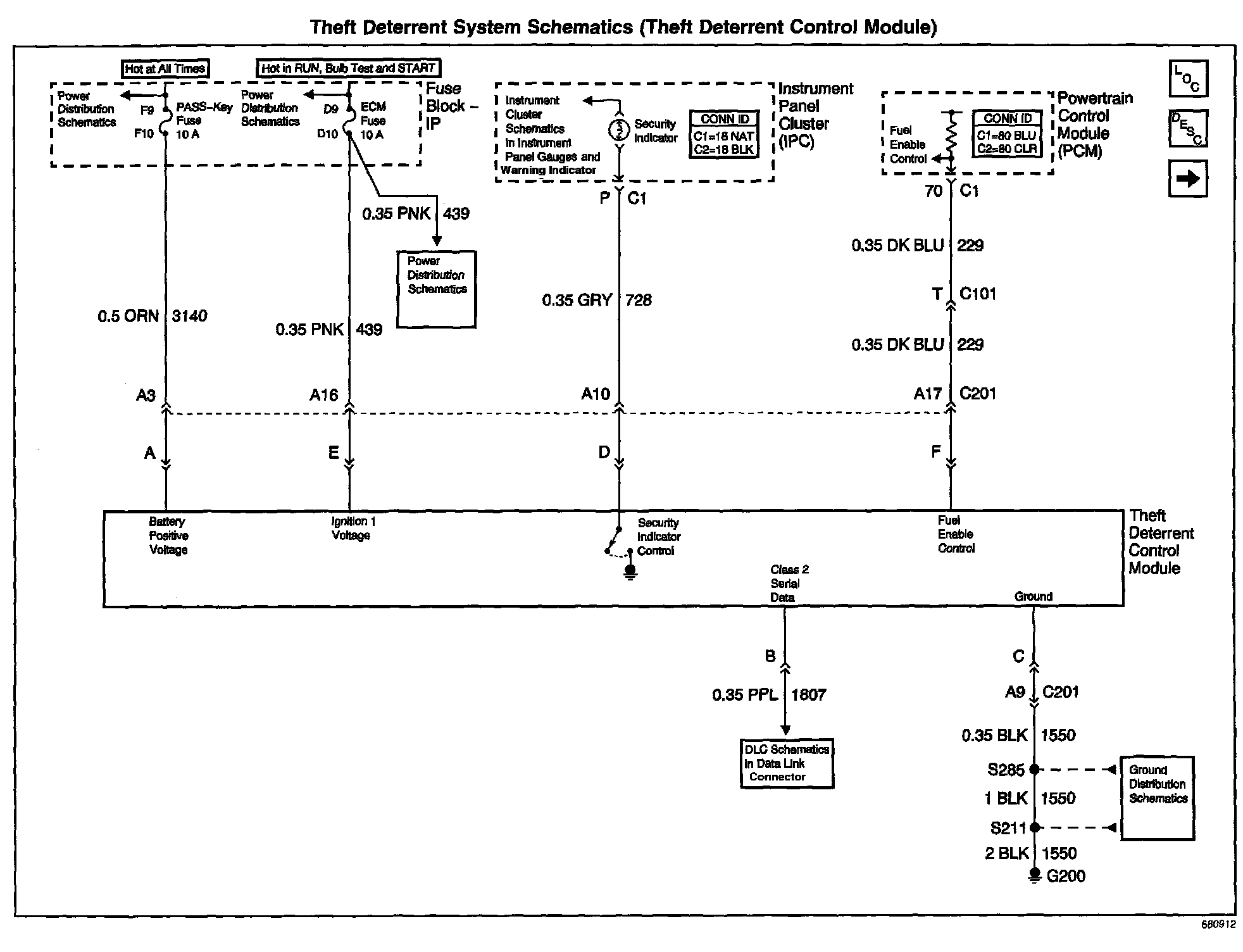

Theft Deterrent System Schematics: Theft Deterrent Control Module:
