Home >> Pontiac >> 2001 >> Firebird V8-5.7L VIN G >> Repair and Diagnosis >> Starting and Charging >> Diagrams >> Electrical Diagrams >> Battery, Generator and Powertrain Control Module

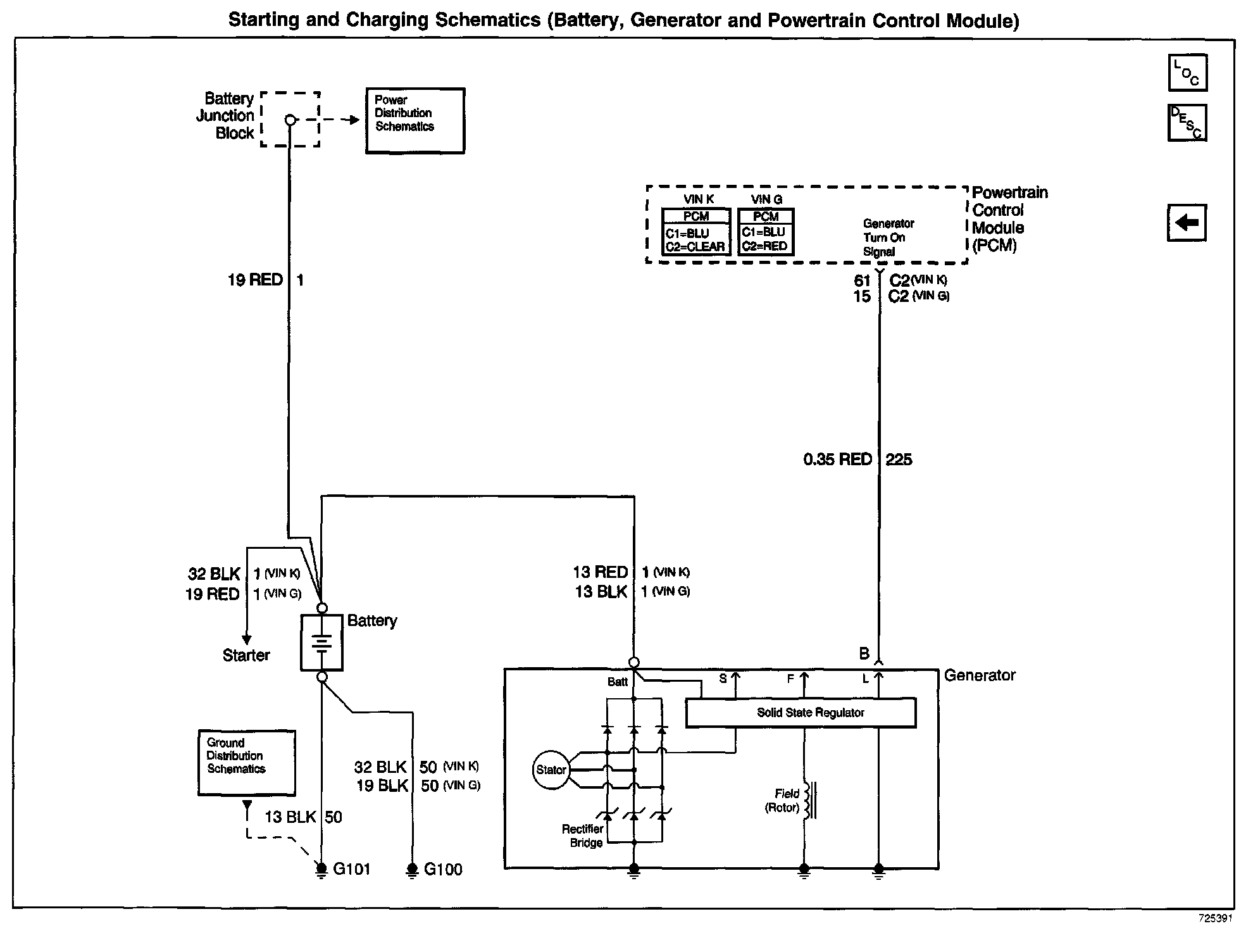

Battery, Generator and Powertrain Control Module

Starting And Charging Schematics: Battery, Generator And Powertrain Control Module:
