Steering Controls Connector End Views

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

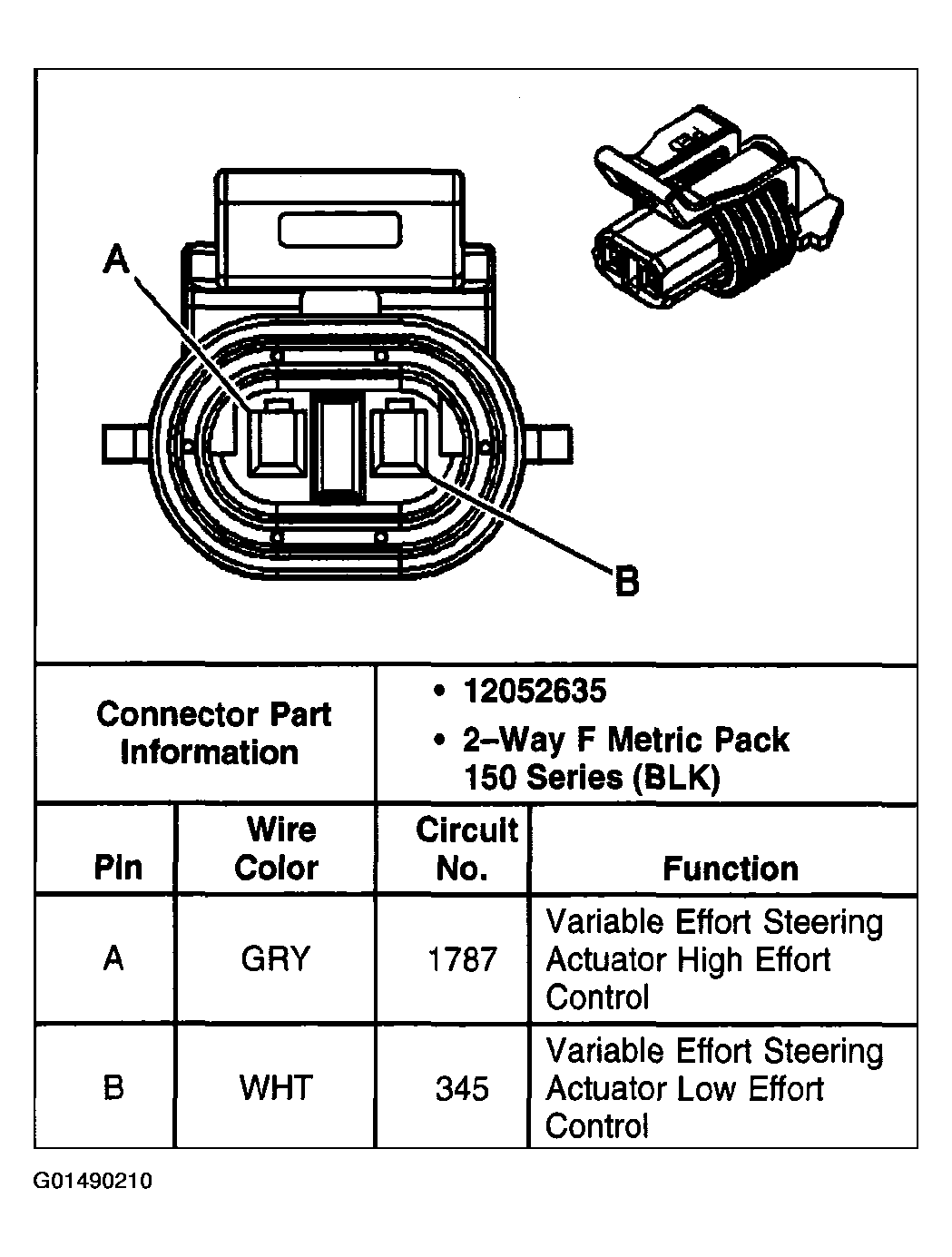

Fig 1: Magnasteer Actuator
G01490210Courtesy of GENERAL MOTORS CORP.
