Transaxle Reassembly: Notes
NOTE:

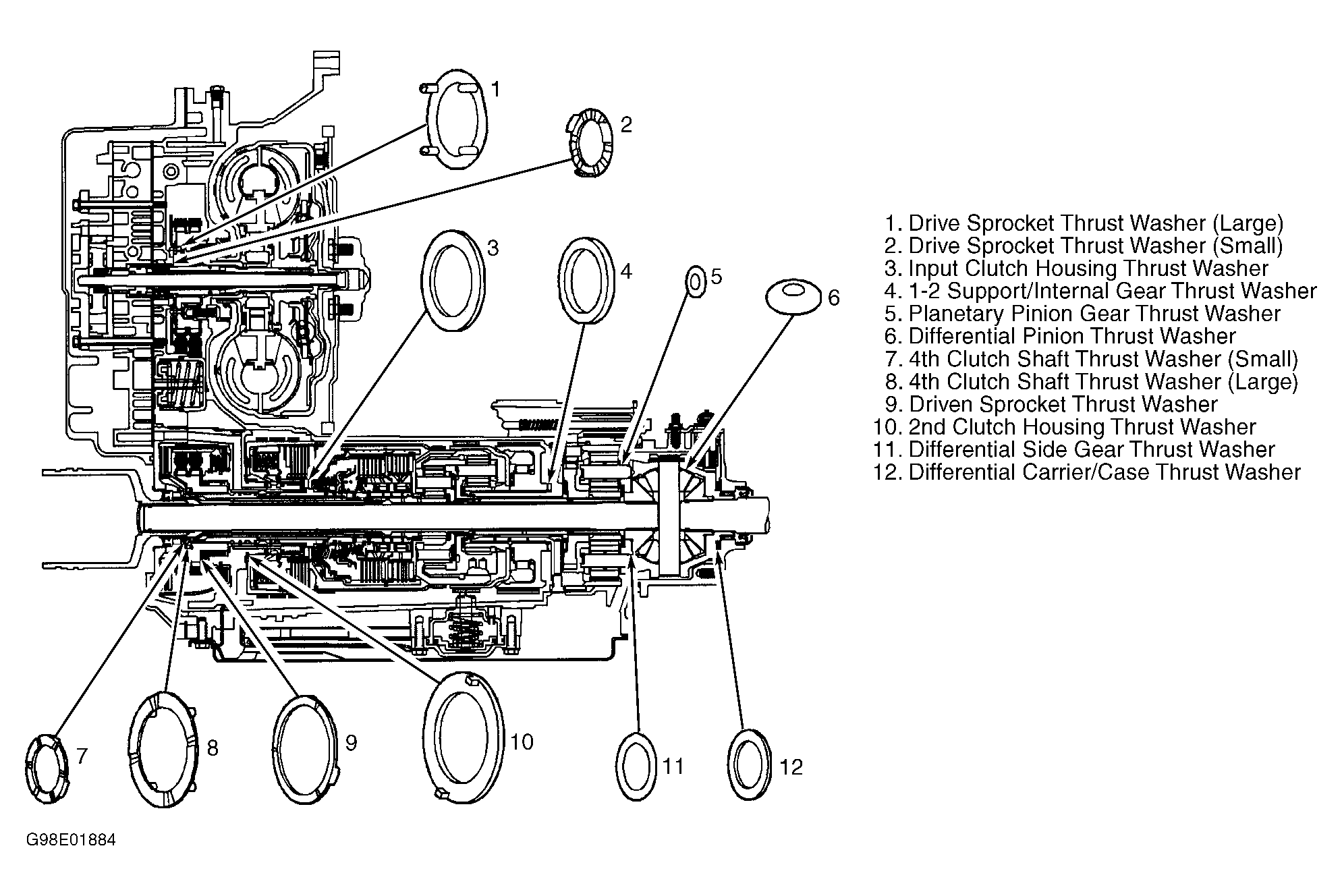

End play checks performed during TRANSAXLE DISASSEMBLY procedure must be rechecked at appropriate reassembly stage. For thrust washer, thrust bearing, bushing and seal installation direction and location during reassembly, refer to appropriate illustration. See Figure-Figure
.
