Automatic Transaxle Overhaul & Testing - 4T65-E: Identification: Transaxle

Transaxle has a metal identification plate or Service Replacement Transmission Assembly (SRTA) plate attached to rear face of transaxle. See Fig 1. Transaxle RPO codes are MN3, MN7, M15 or M76. The MN3 and MN7 are heavy duty models and have 10.2" (258 mm) torque converters. The M15 model has a 9.6" (245 mm) torque converter. The M76 model is used in All Wheel Drive (AWD) applications. For model build information on each RPO code, see Fig 2-Fig 9 .

Fig 1: Locating Transaxle ID Plate & SRTA Plate Information

G98I01961

Courtesy of GENERAL MOTORS CORP.

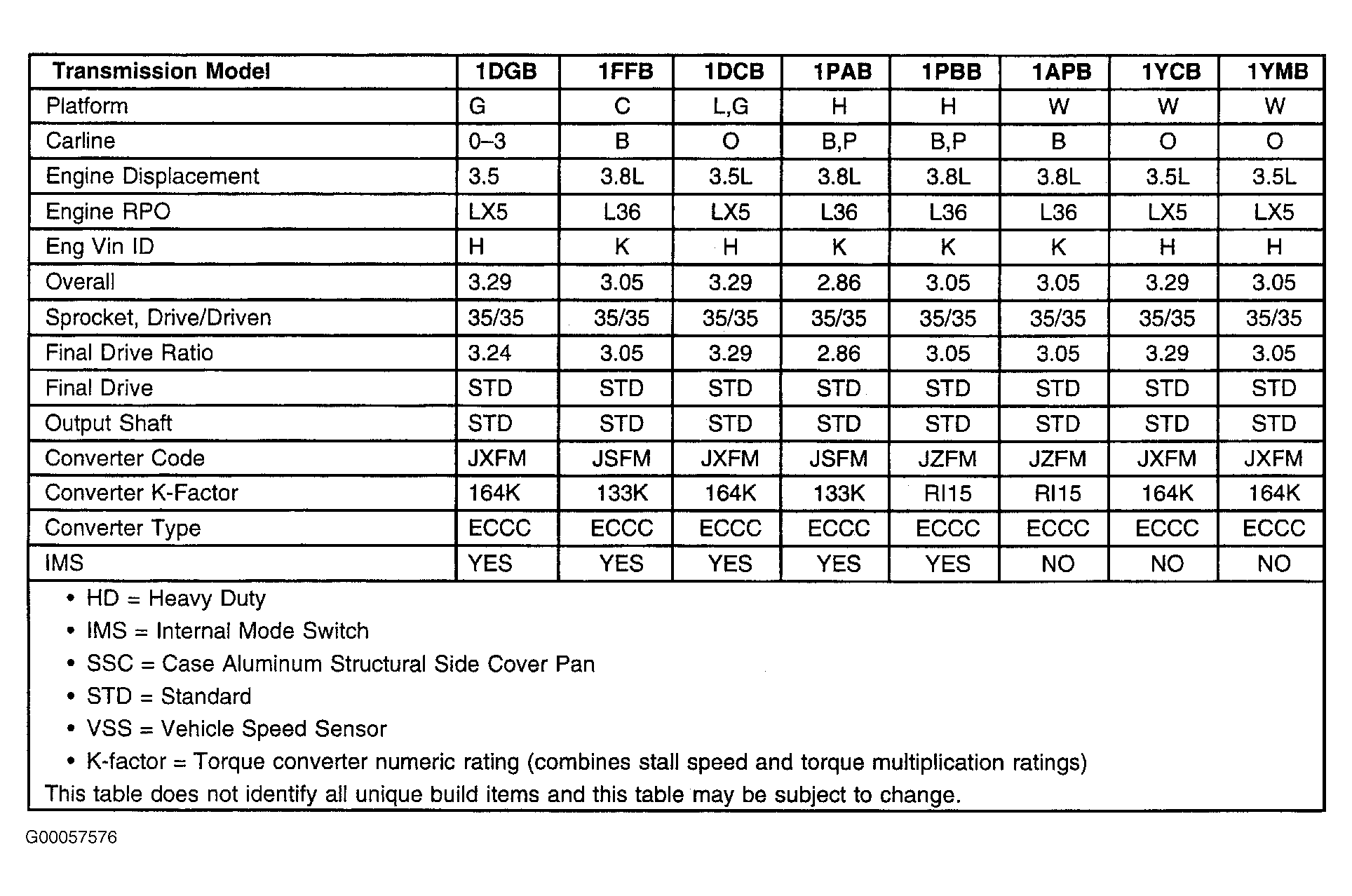

Fig 2: Identifying Model Build Information (2001 - MN3)

G00057576

Courtesy of GENERAL MOTORS CORP.

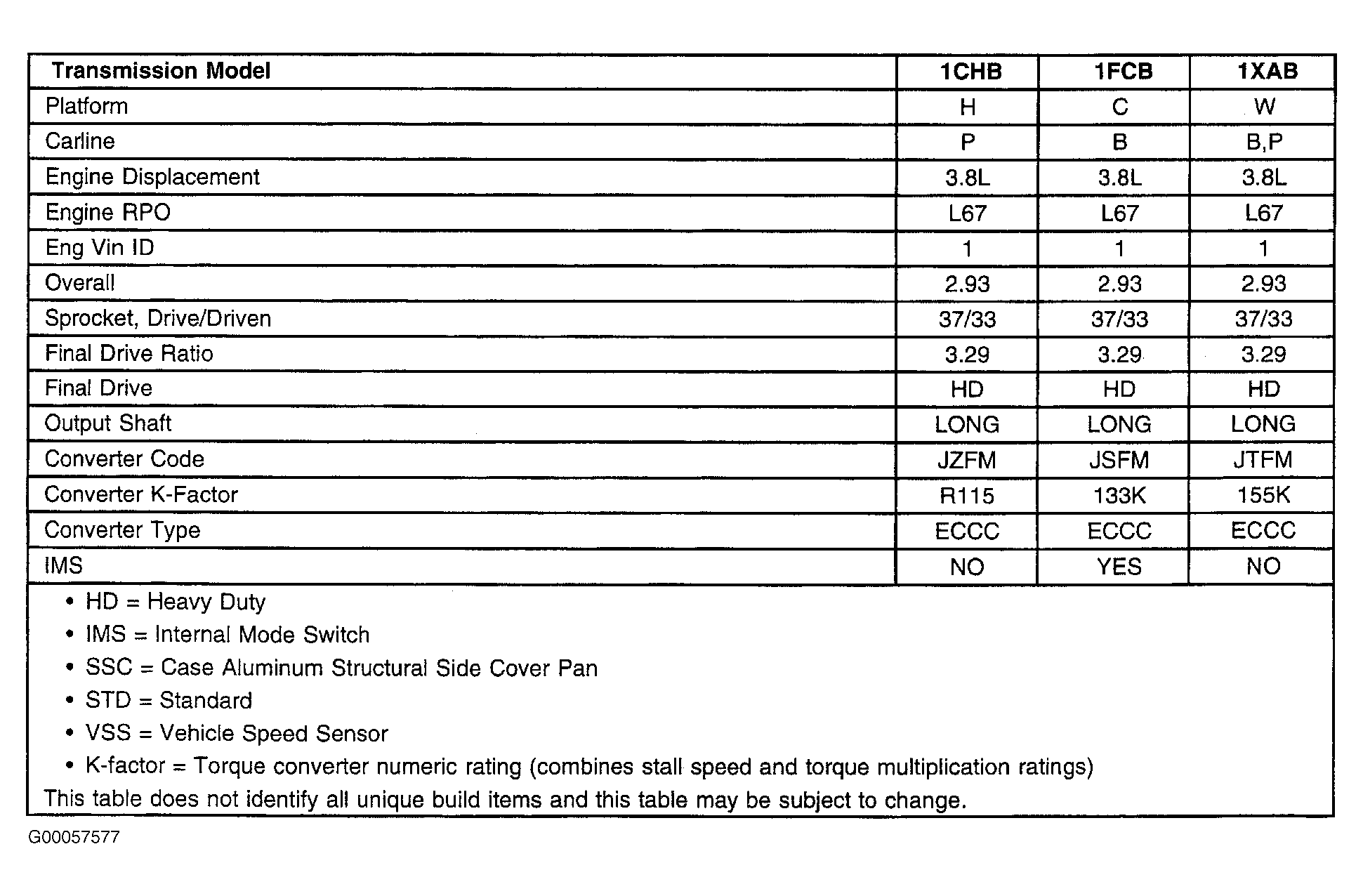

Fig 3: Identifying Model Build Information (2001 - MN7)

G00057577

Courtesy of GENERAL MOTORS CORP.

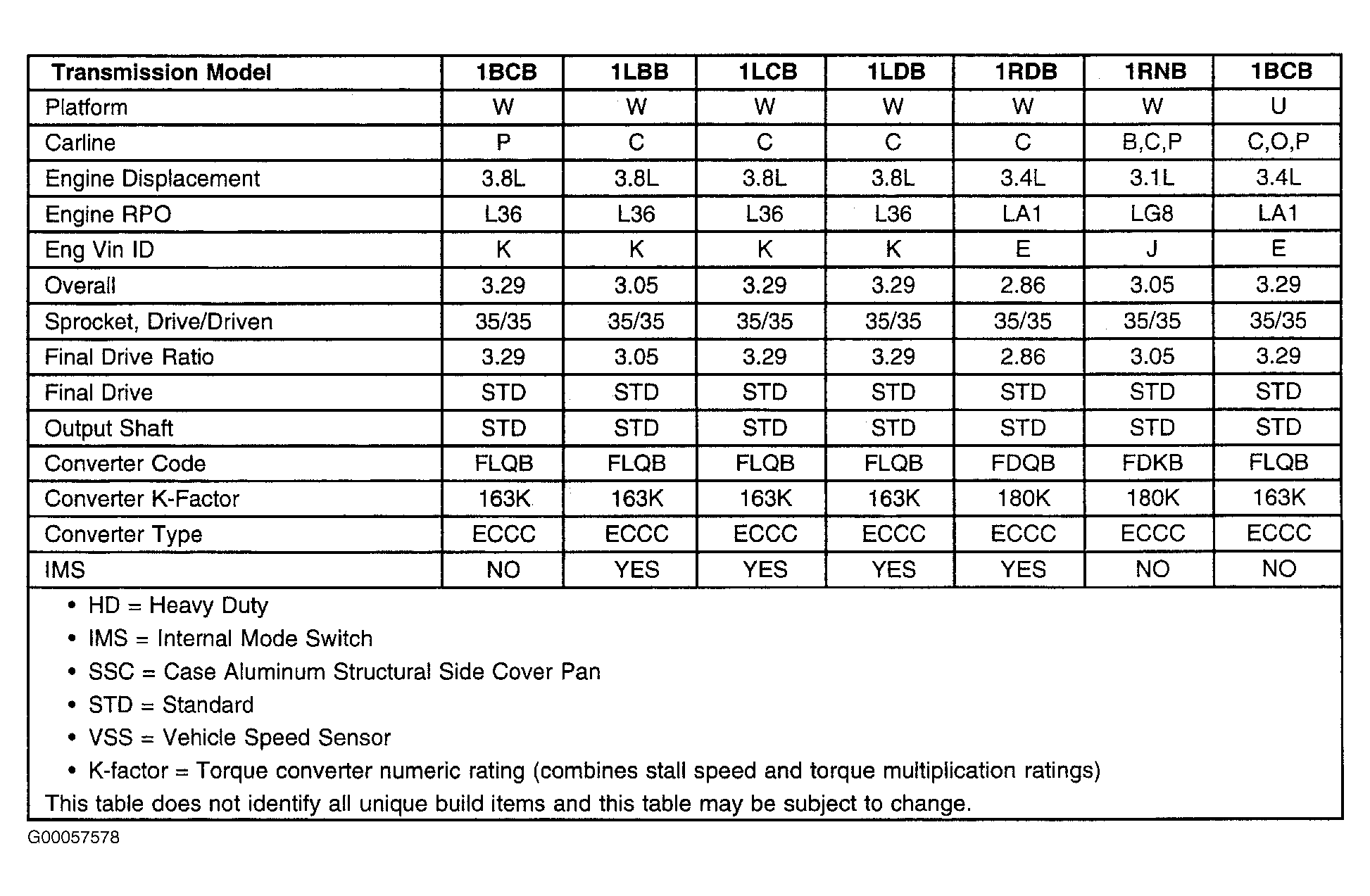

Fig 4: Identifying Model Build Information (2001 - M15)

G00057578

Courtesy of GENERAL MOTORS CORP.

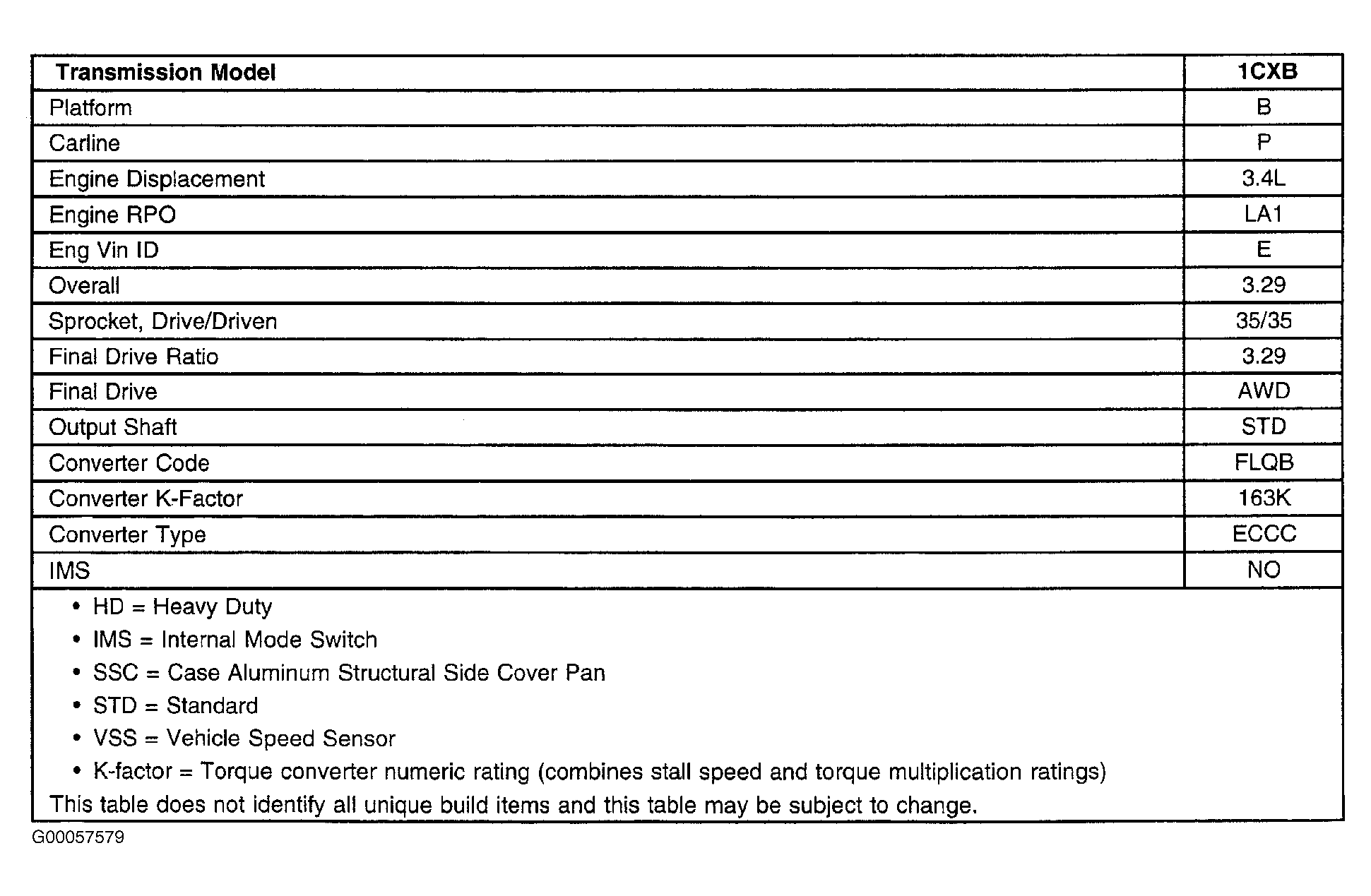

Fig 5: Identifying Model Build Information (2001 - M76)

G00057579

Courtesy of GENERAL MOTORS CORP.

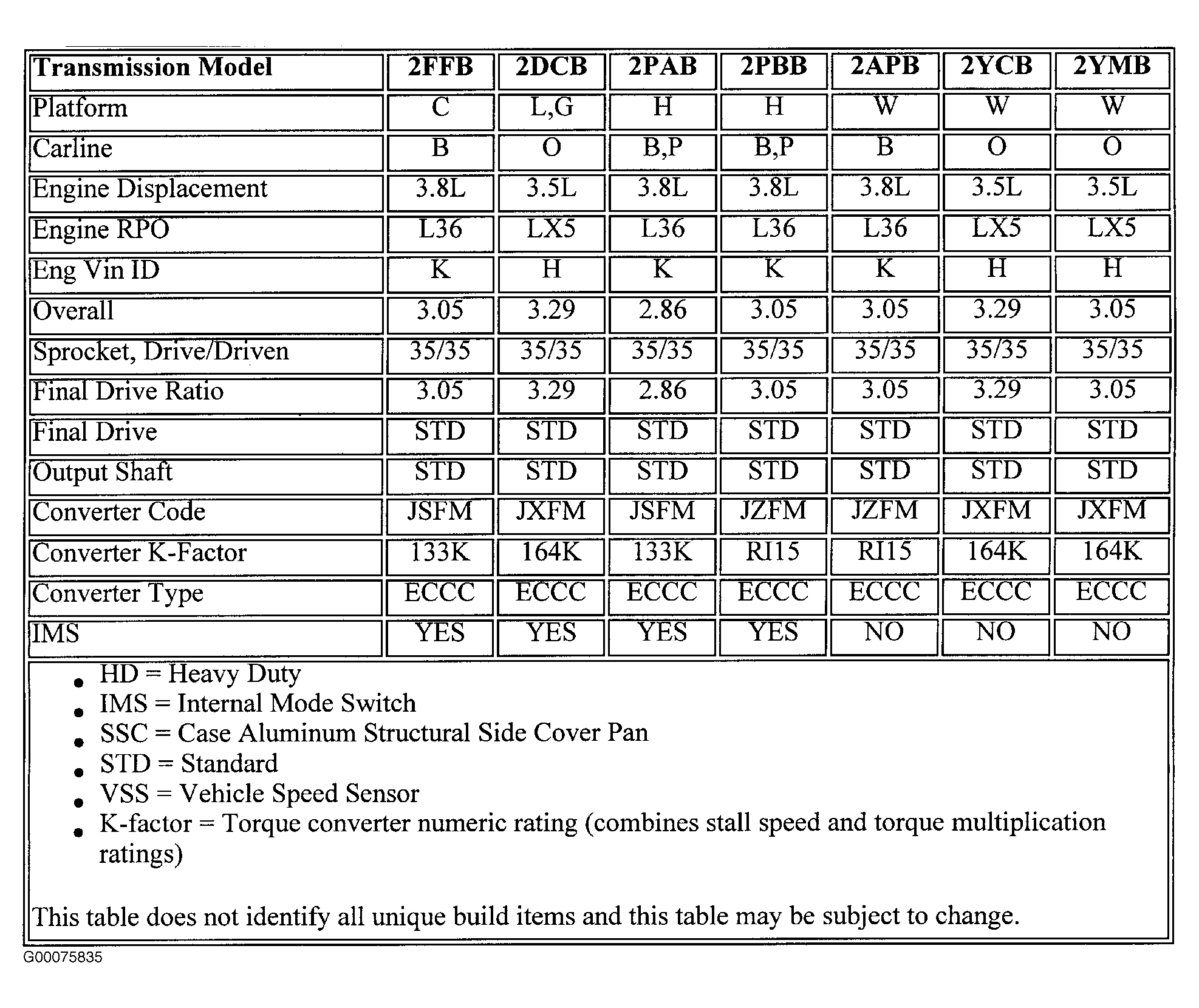

Fig 6: Identifying Model Build Information (2002 - MN3)

G00075835

Courtesy of GENERAL MOTORS CORP.

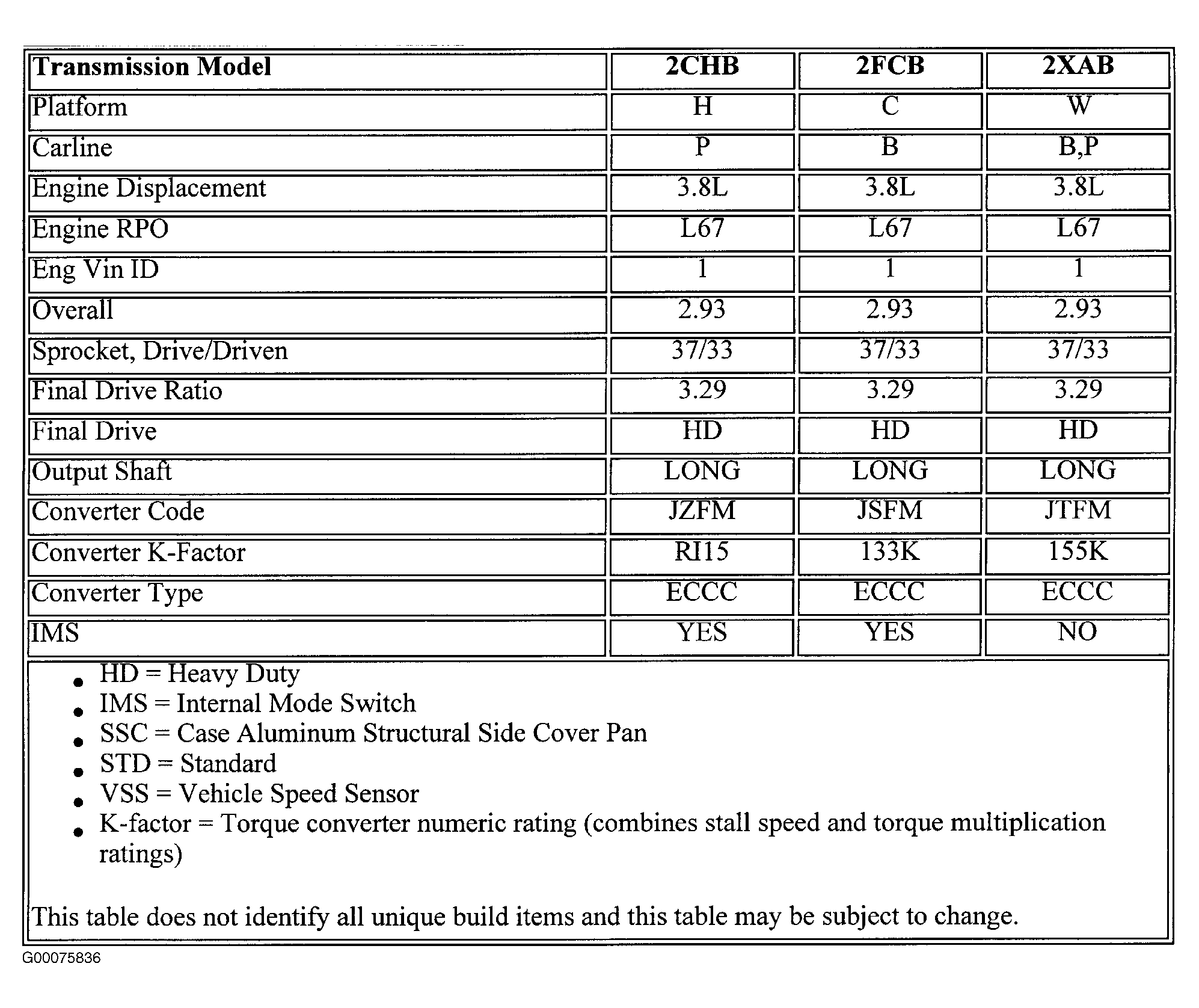

Fig 7: Identifying Model Build Information (2002 - MN7)

G00075836

Courtesy of GENERAL MOTORS CORP.

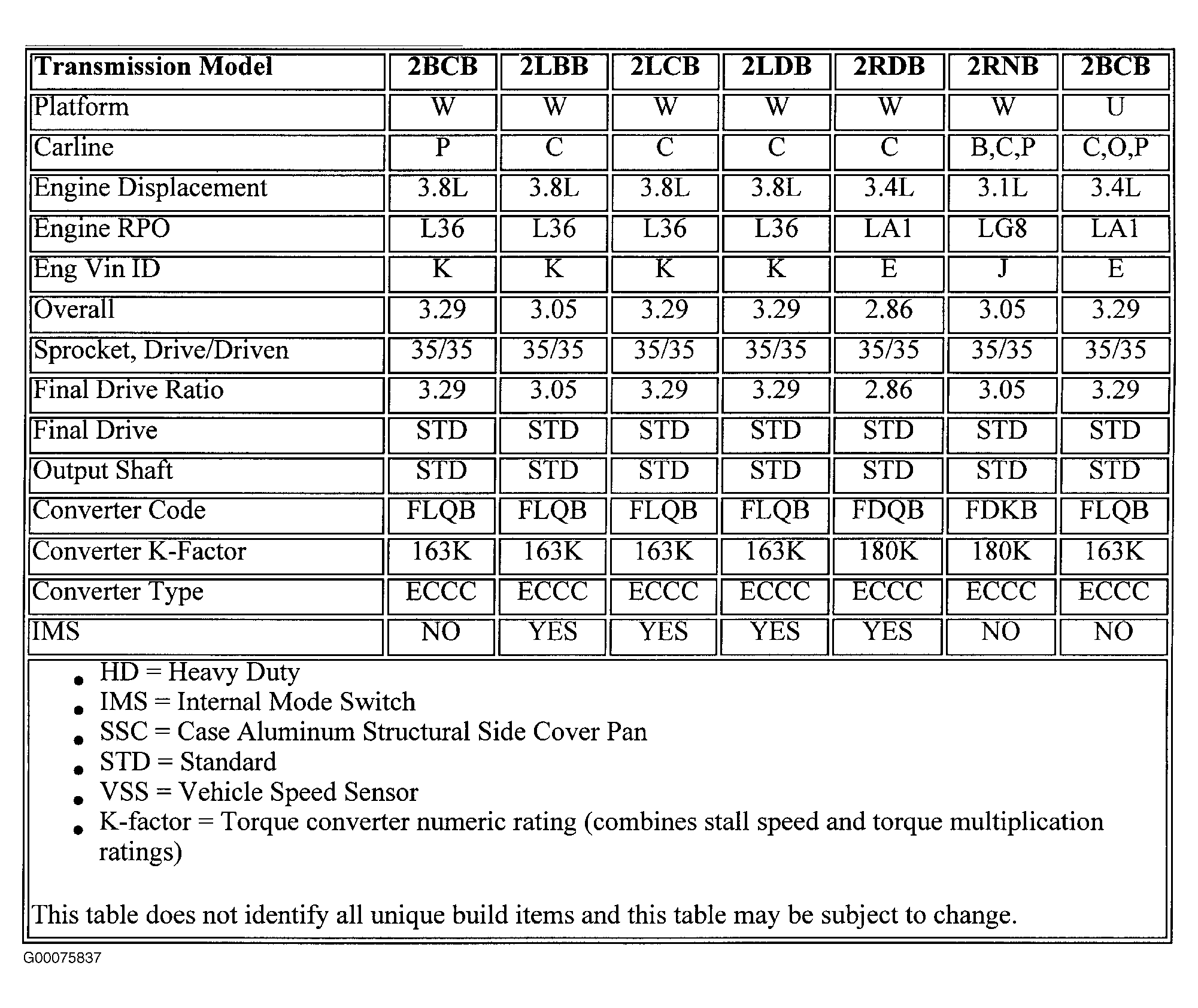

Fig 8: Identifying Model Build Information (2002 - M15)

G00075837

Courtesy of GENERAL MOTORS CORP.

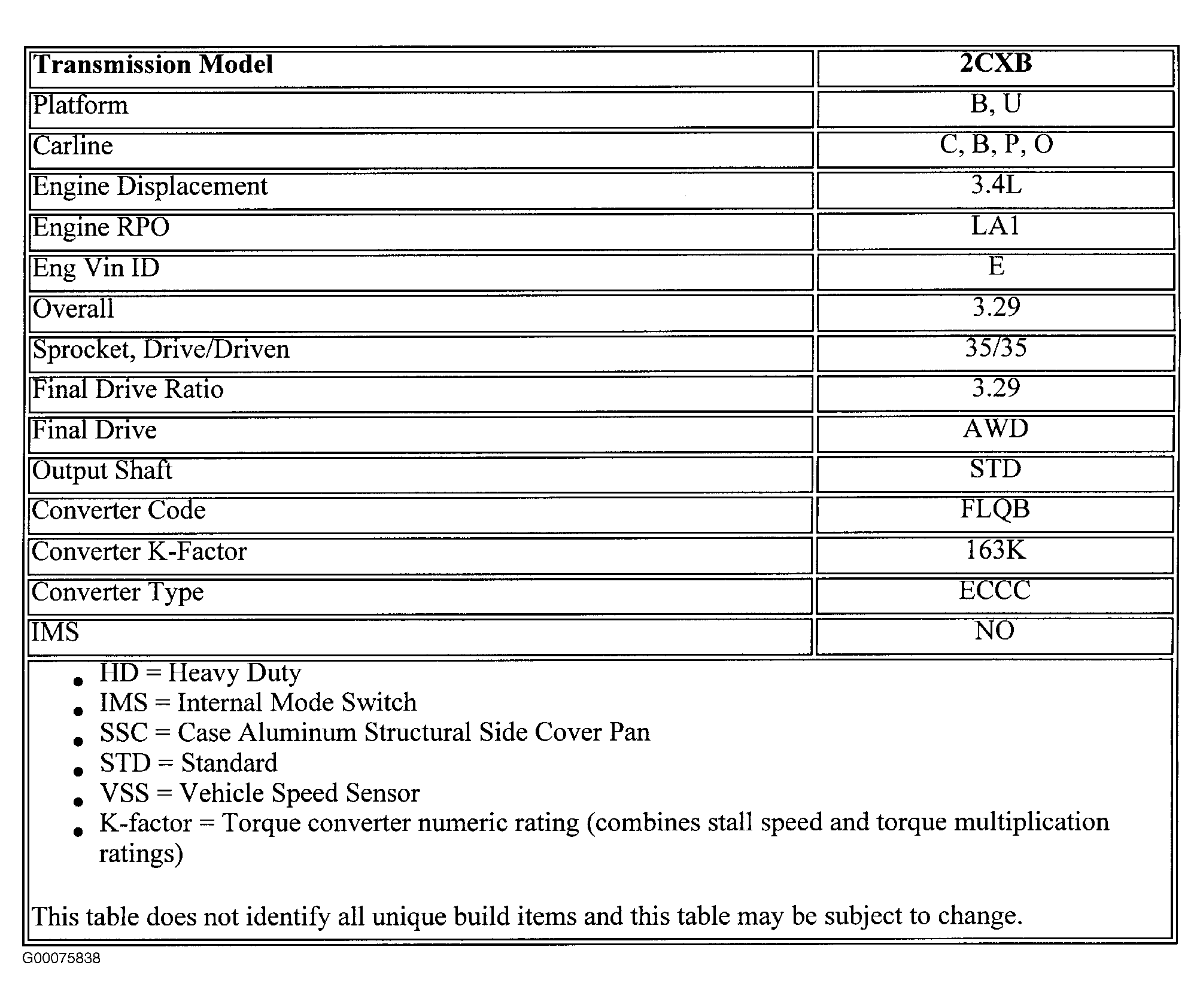

Fig 9: Identifying Model Build Information (2002 - M76)

G00075838

Courtesy of GENERAL MOTORS CORP.

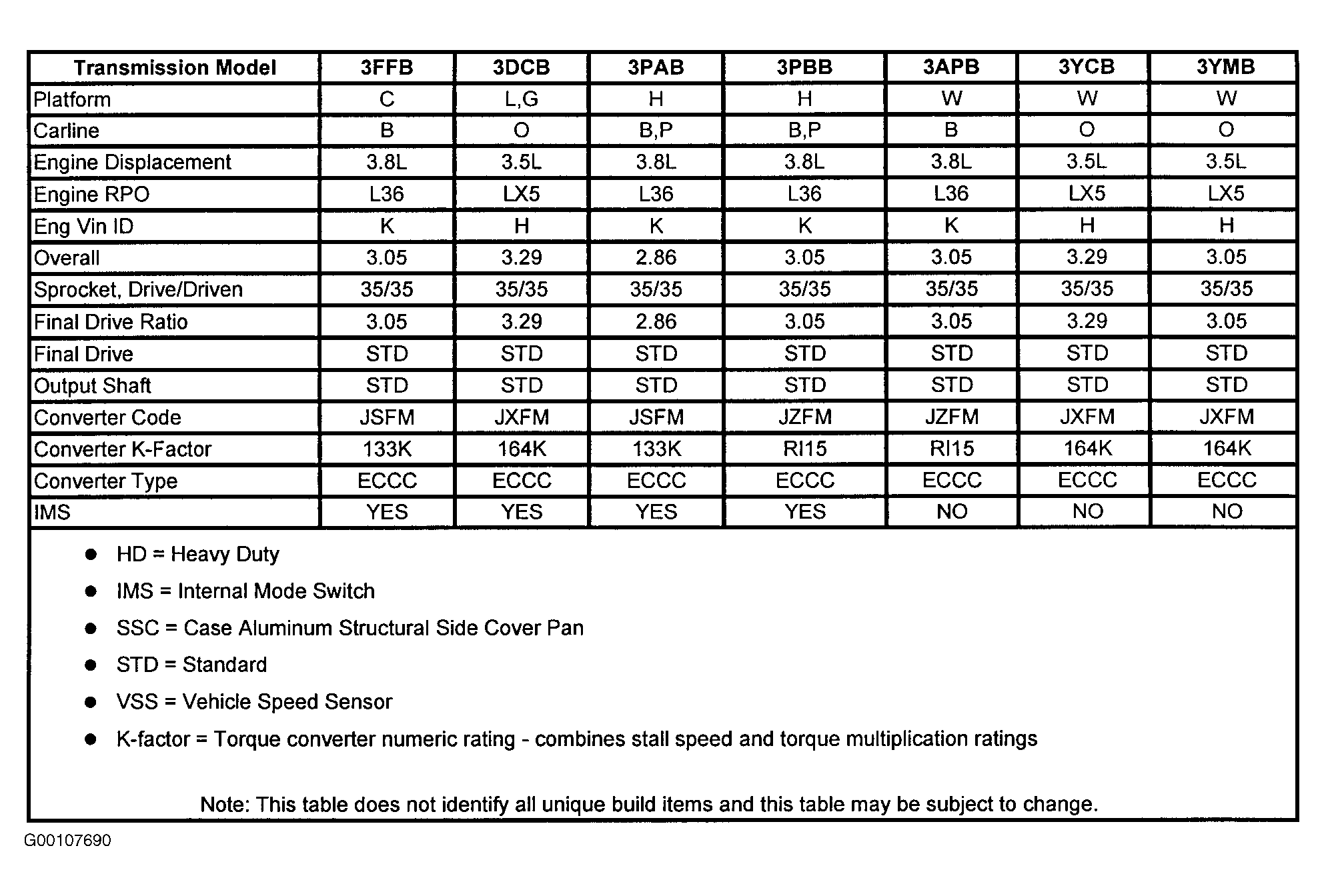

Fig 10: Identifying Model Build Information (2003 - MN3)

G00107690

Courtesy of GENERAL MOTORS CORP.

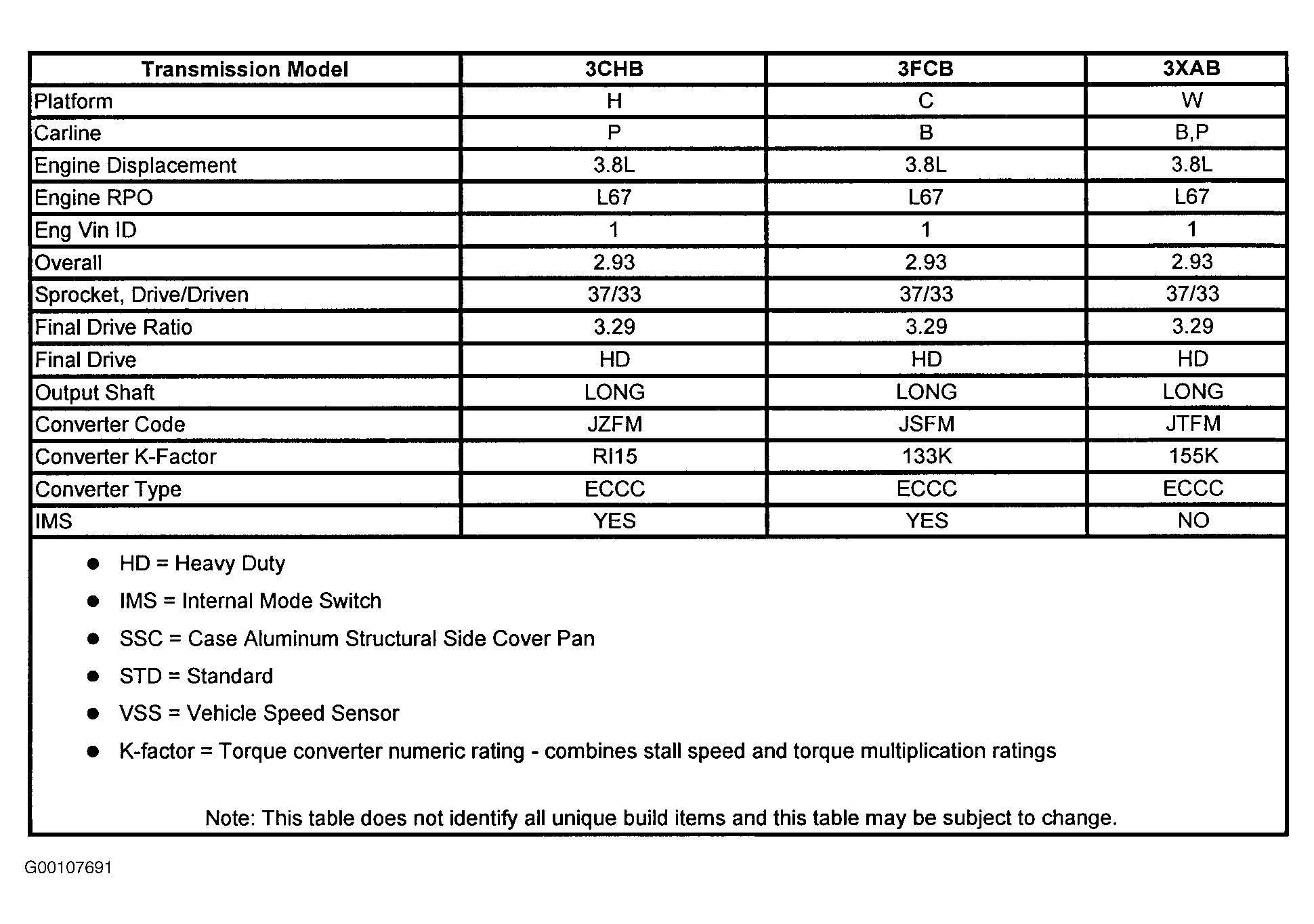

Fig 11: Identifying Model Build Information (2003 - MN7)

G00107691

Courtesy of GENERAL MOTORS CORP.

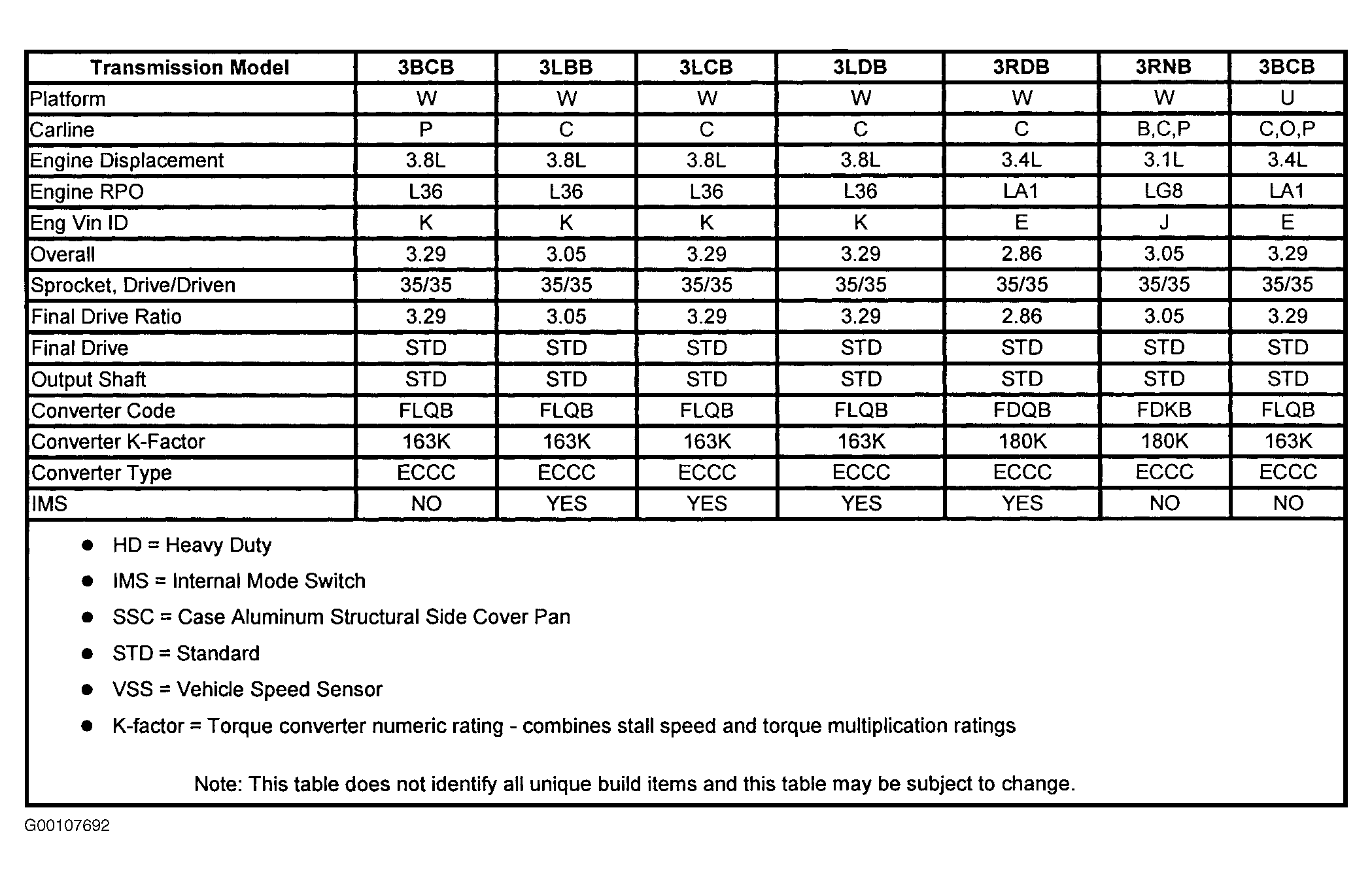

Fig 12: Identifying Model Build Information (2003 - M15)

G00107692

Courtesy of GENERAL MOTORS CORP.

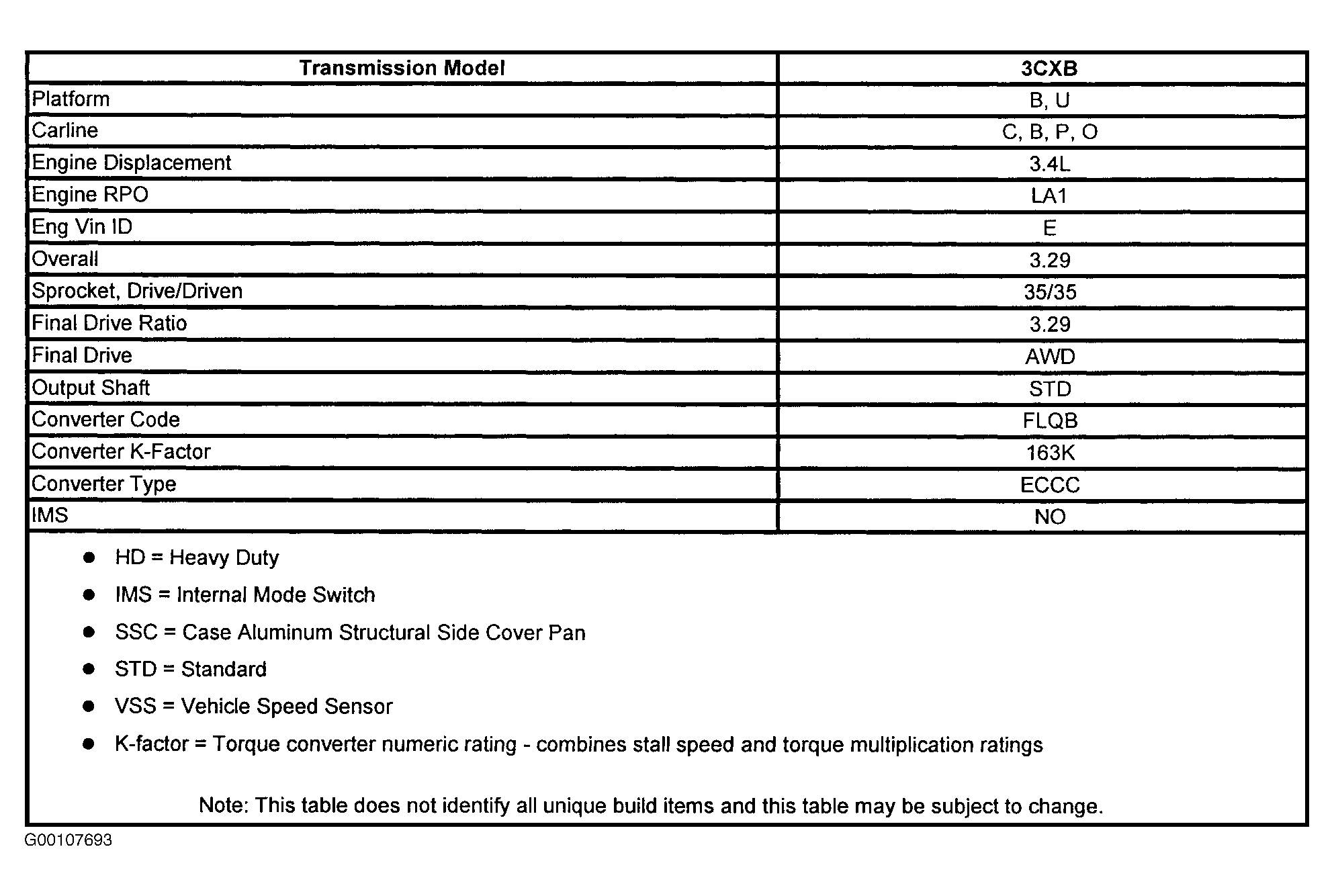

Fig 13: Identifying Model Build Information (2003 - M76)

G00107693

Courtesy of GENERAL MOTORS CORP.
