Home >> Pontiac >> 2000 >> Grand Prix V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Application and ID >> Fuse Block - IP >> Application Table

Application Table

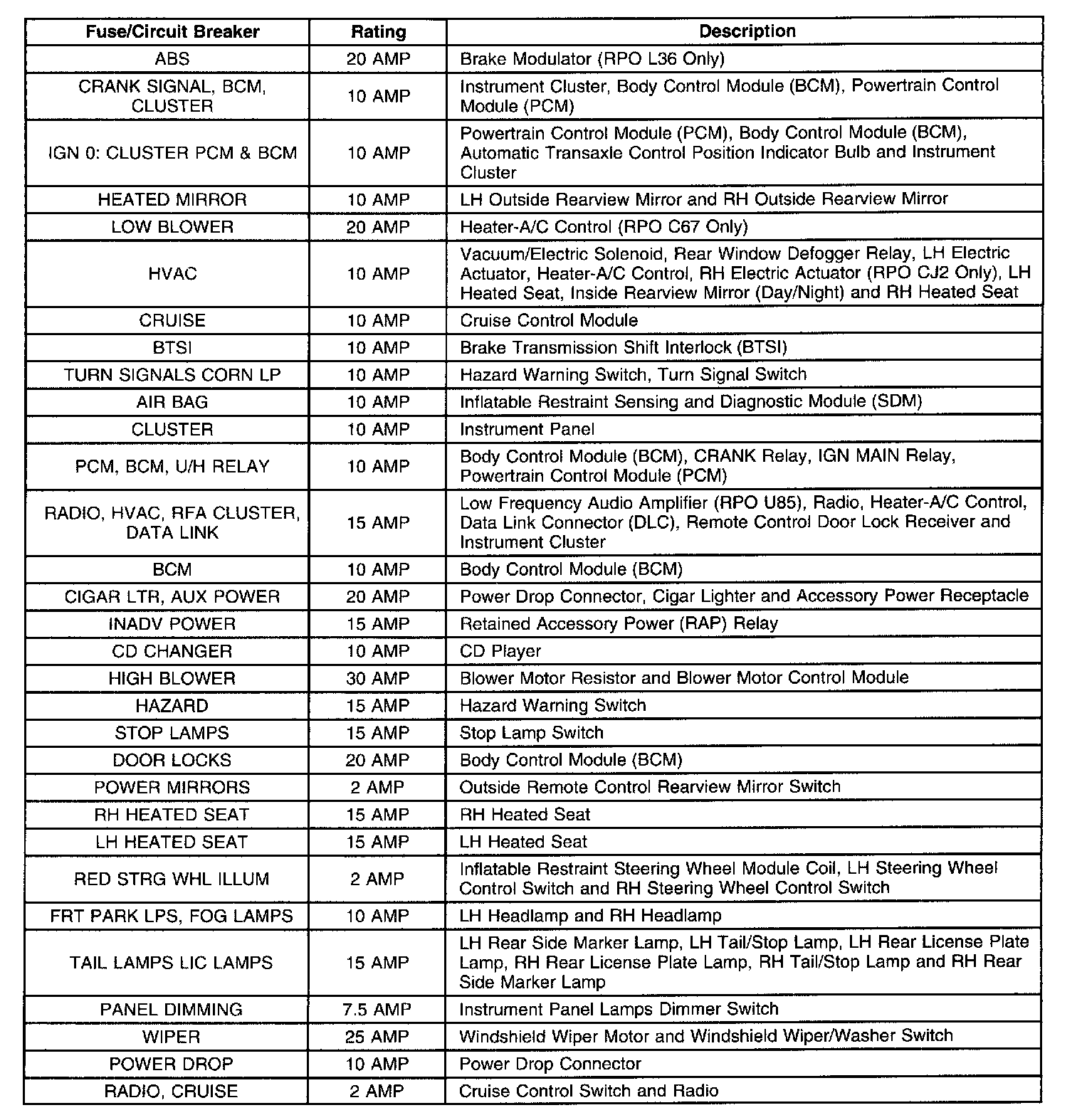

Instrument Panel Fuse Block, Fuse Application Table:
