Home >> Pontiac >> 2000 >> Grand Prix V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Crankshaft and Components

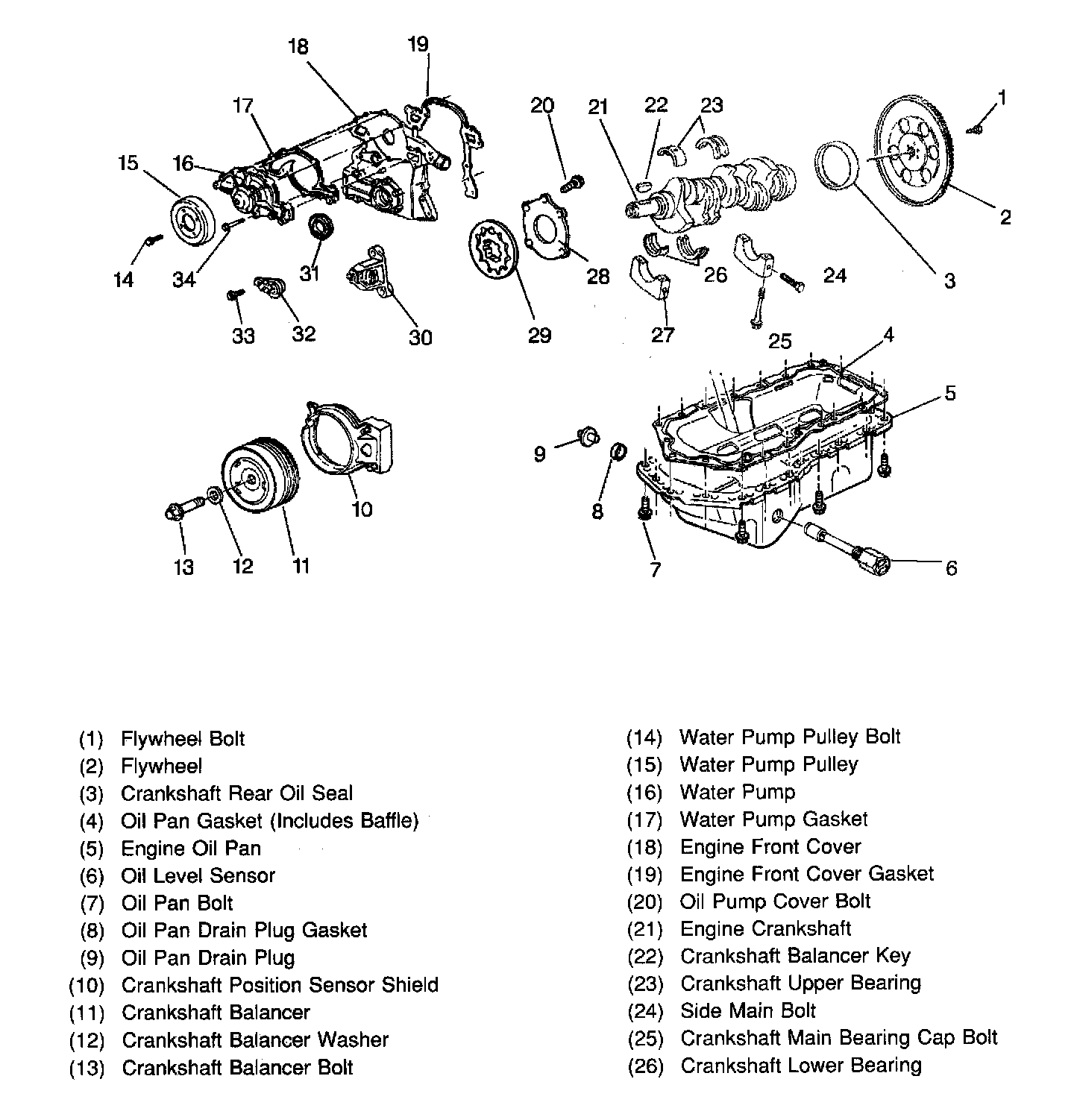

Crankshaft and Components





Part 1 of 2





Part 2 of 2
