Home >> Pontiac >> 2000 >> Grand Prix V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems >> System Diagram >> Body Control Module

Body Control Module

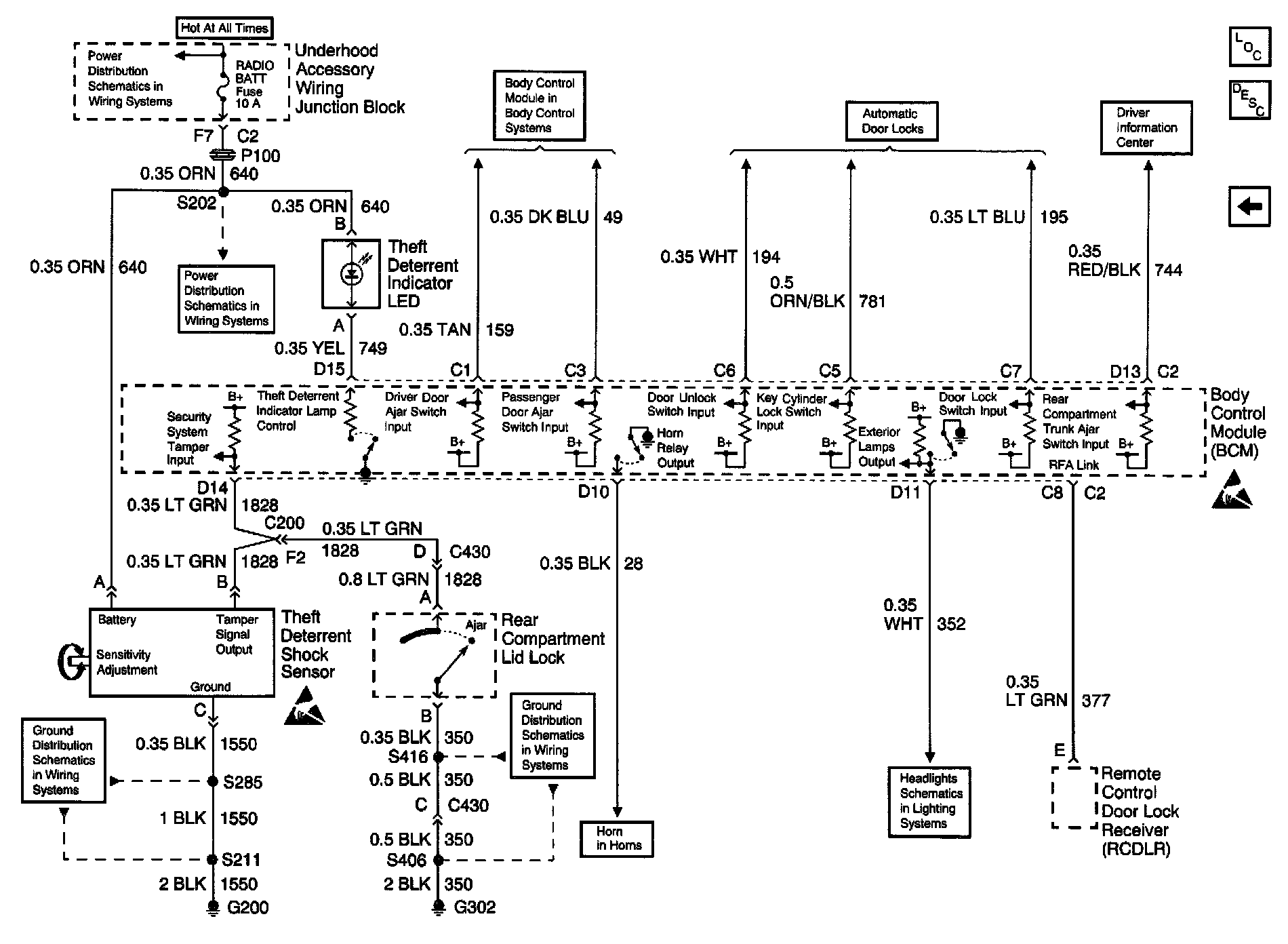

Theft Deterrent System Schematics: Body Control Module:
