Home >> Pontiac >> 2000 >> Grand Prix V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Accessory Delay Module

Accessory Delay Module

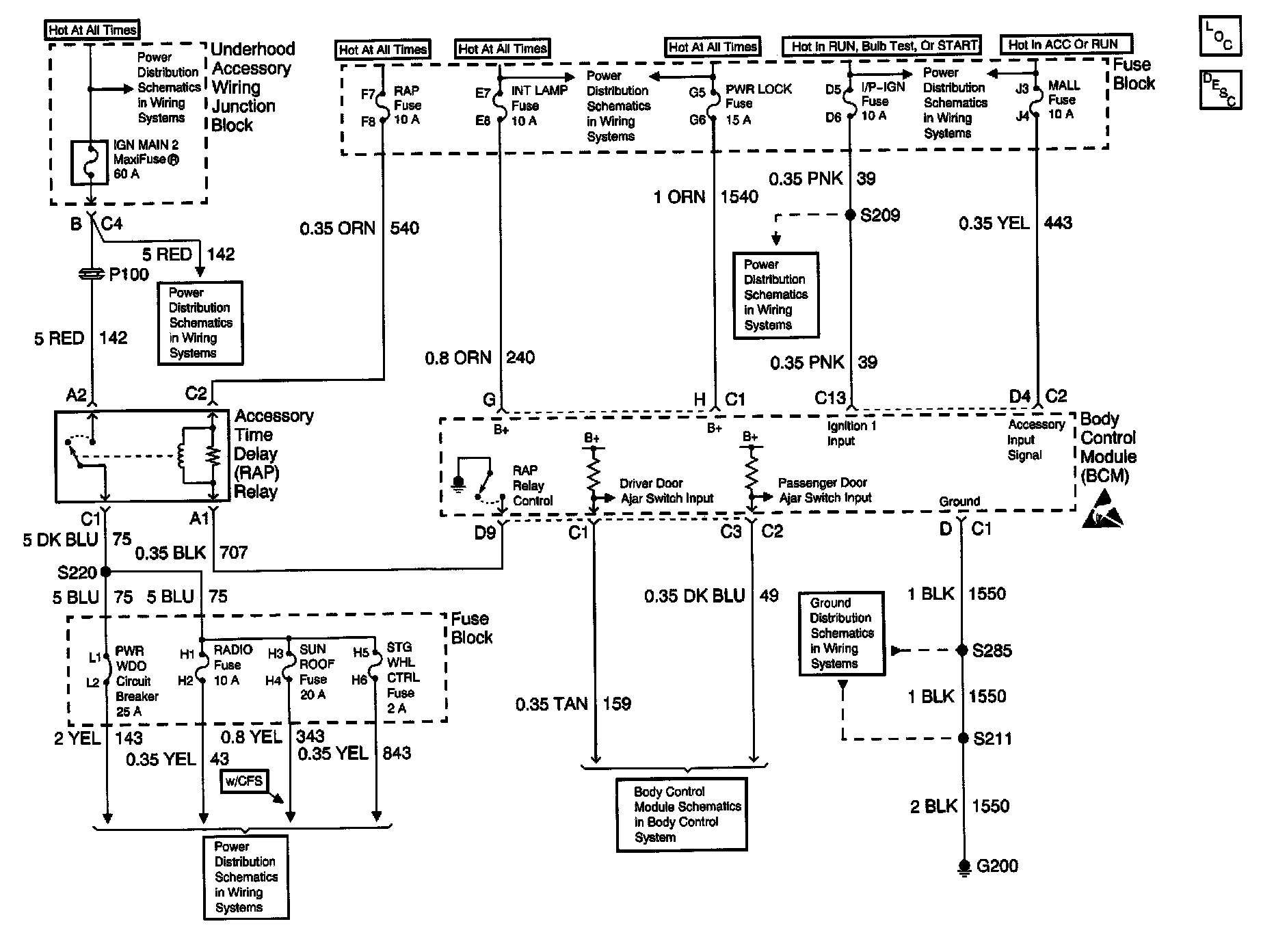

Retained Accessory Power (RAP) Schematics:
