Home
>>
Pontiac
>>
2000
>>
Grand Prix V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Control Module
Air Bag Control Module

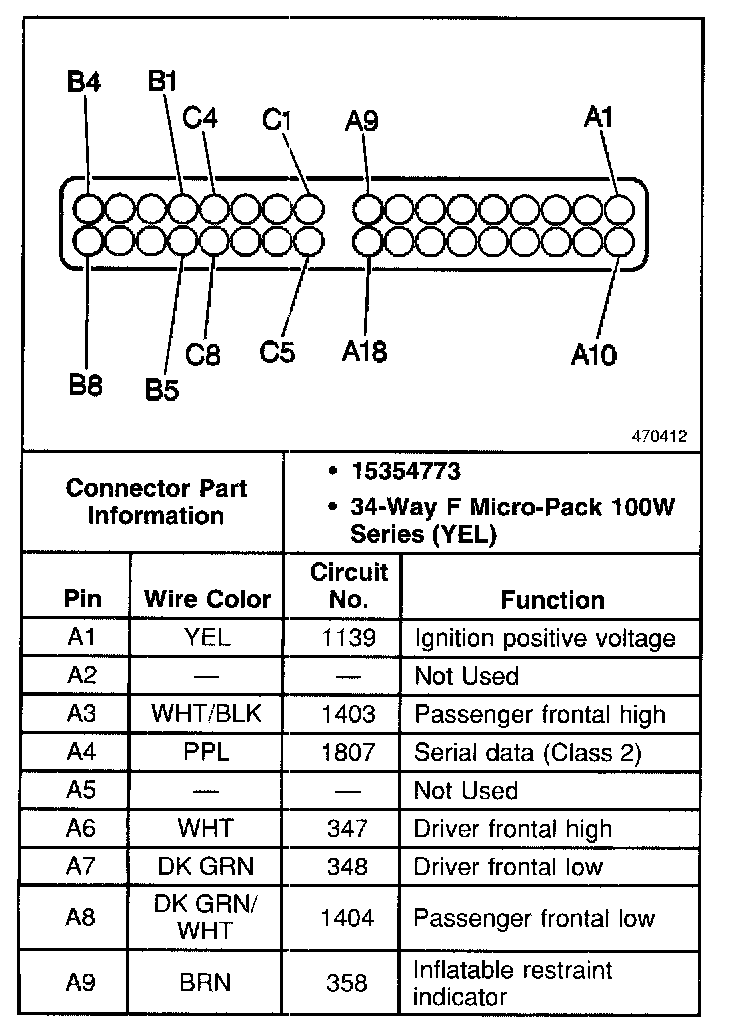

Inflatable Restraint Sensing And Diagnostic Module (SDM) Part 1 Of 2:
Inflatable Restraint Sensing And Diagnostic Module (SDM) Part 2 Of 2:
