A/T Internal Connector End Views





Automatic Transmission Fluid Pressure Manual Valve Position Switch Connector, Wiring Harness Side

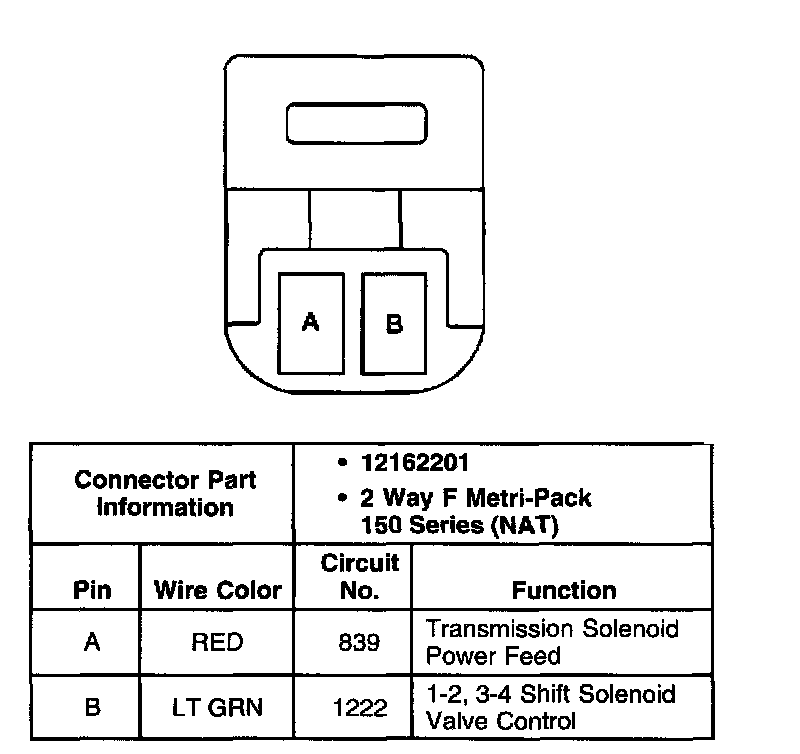

1-2, 3-4 Shift Solenoid Valve Connector, Wiring Harness Side

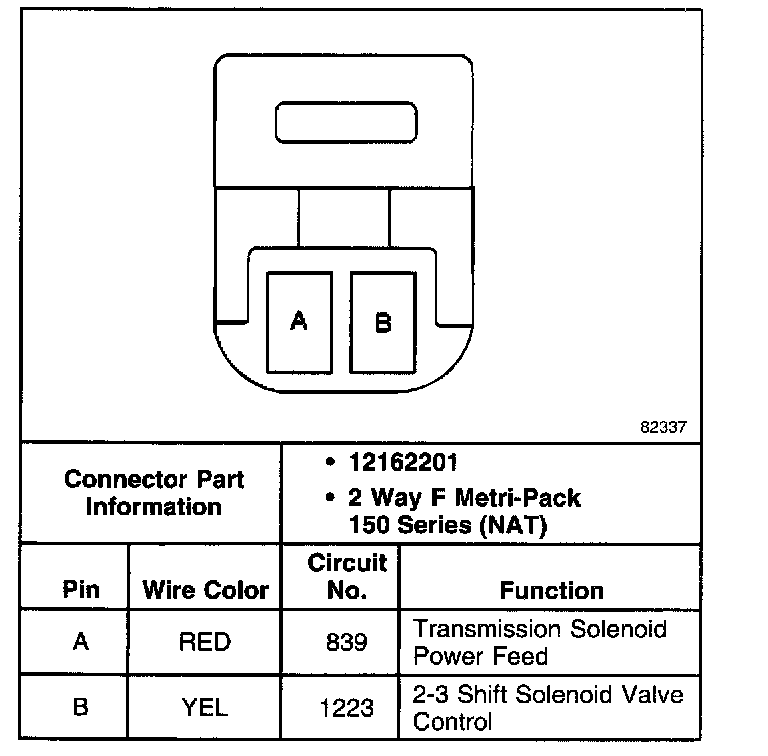

2-3 Shift Solenoid Valve Connector, Wiring Harness Side

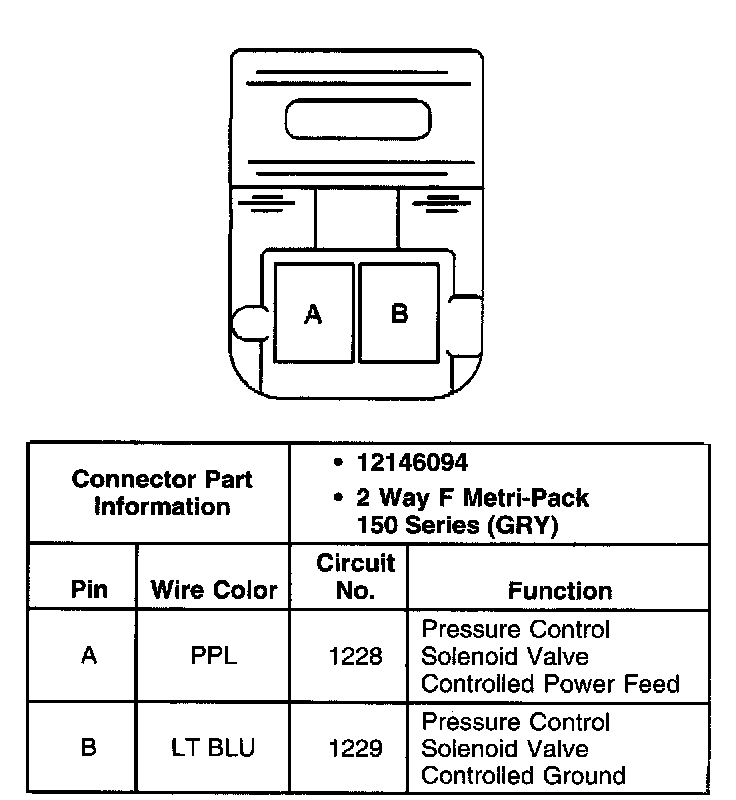

Pressure Control Solenoid Valve Connector, Wiring Harness Side
