Window Channel Replacement - Front Side Rear

REMOVAL PROCEDURE




1. Remove the door trim panel.
2. Remove the run channel weather strip from the window (1).
3. Remove the front window.

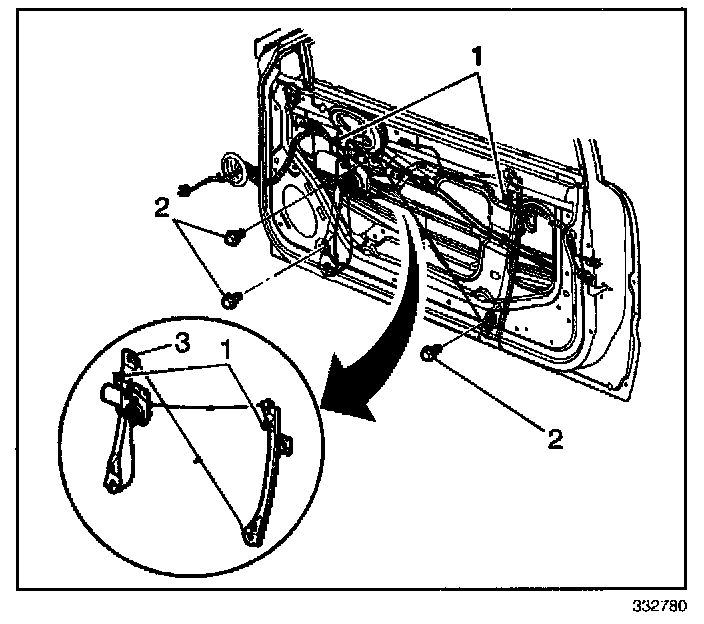

4. Remove the rear run channel bolt (2). Remove the channel (1).

INSTALLATION PROCEDURE




1. Install the rear run channel (1). Secure with the channel bolt (2).
2. Install the front window.
3. Install the run channel weather strip to the window (1).
4. Install the door trim panel.
