Cylinder Head Flatness

CYLINDER HEAD FLATNESS

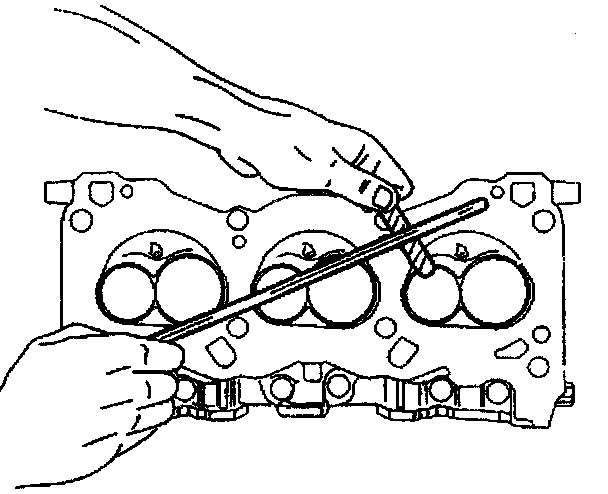

Inspect the cylinder head mating surfaces for flatness. Recondition the cylinder head mating surface, if necessary, by milling. Replace the cylinder head if you must remove more than 0.25 mm (0.010 inch).
