Home >> Pontiac >> 2000 >> Firebird V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering >> System Diagram

System Diagram

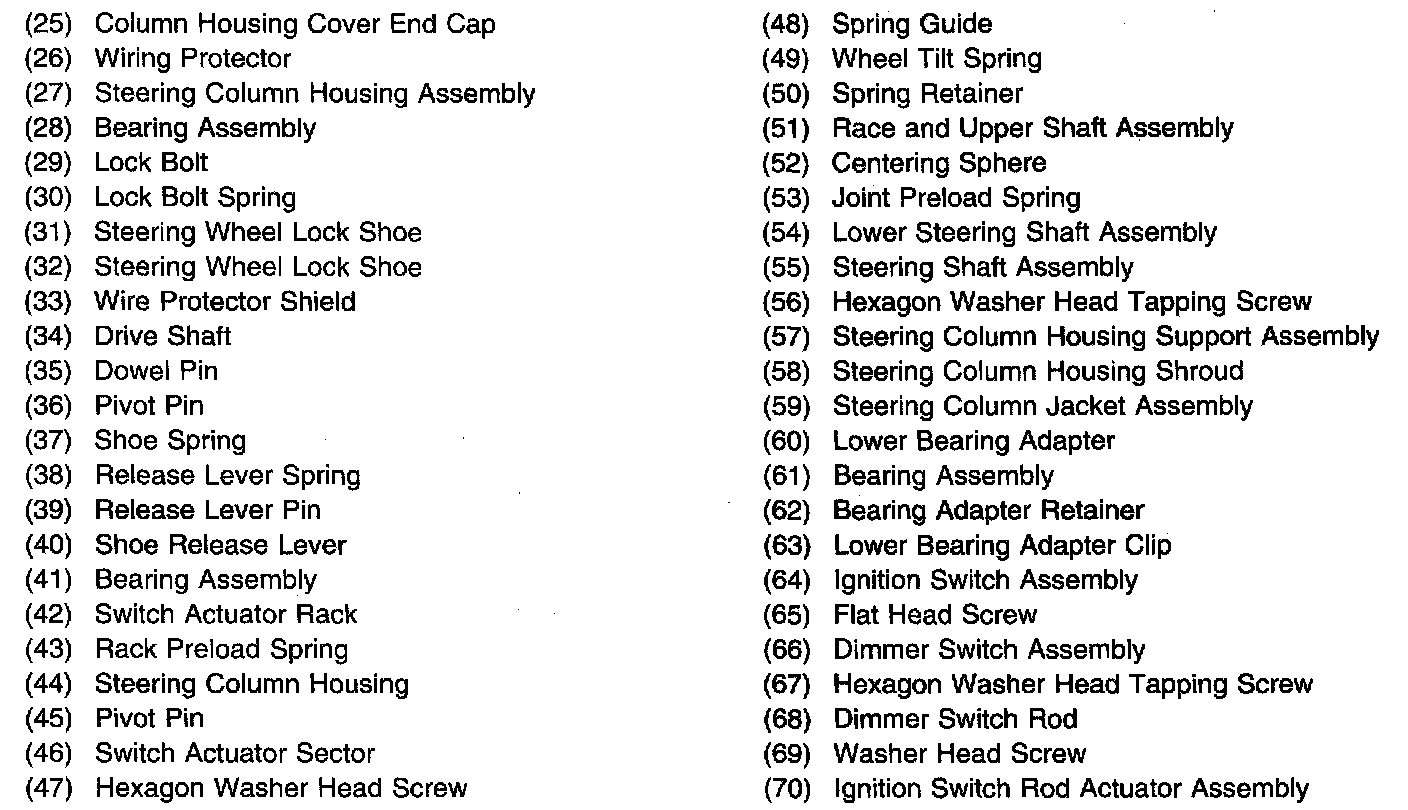

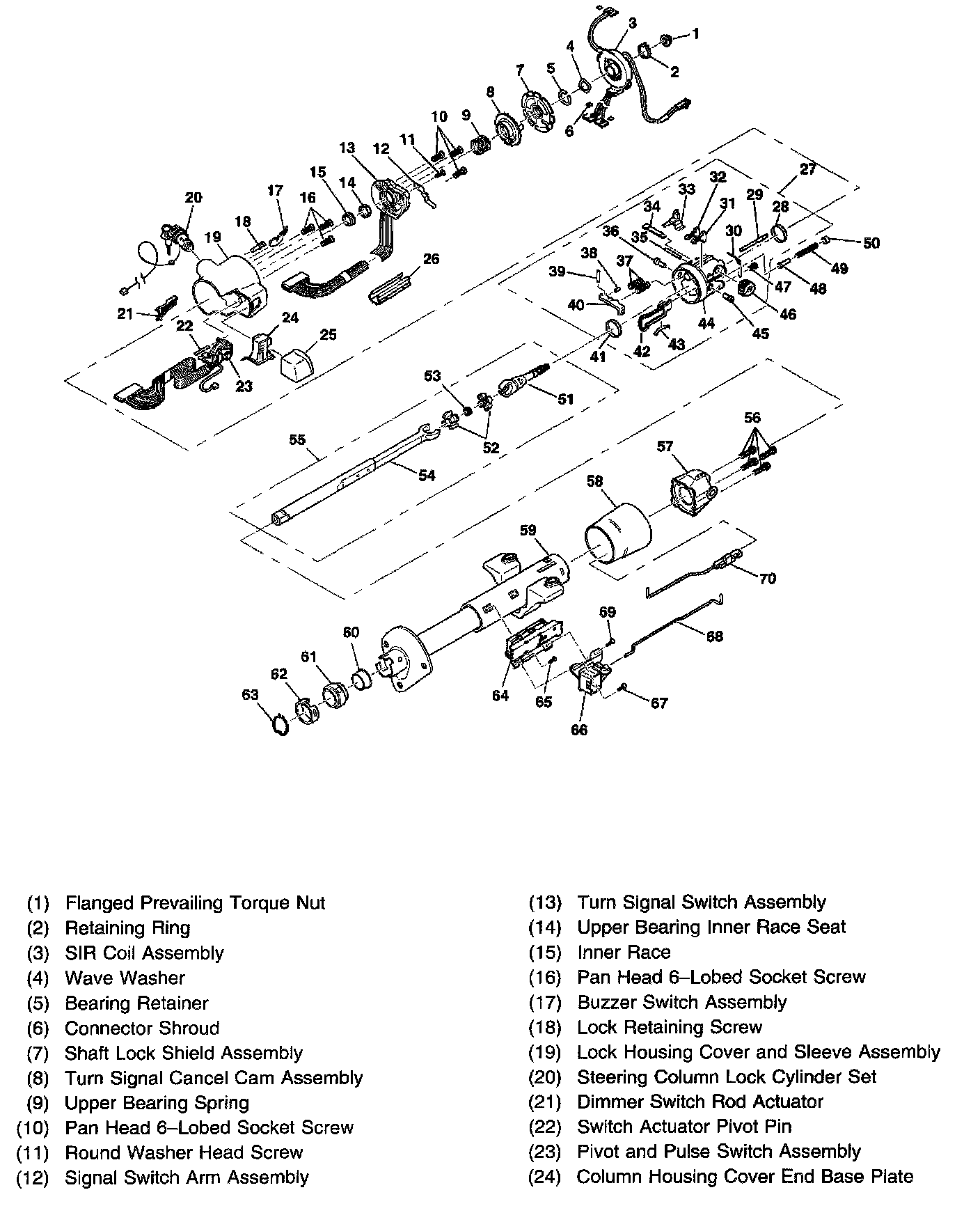

Tilt Steering Column
