Firebird V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

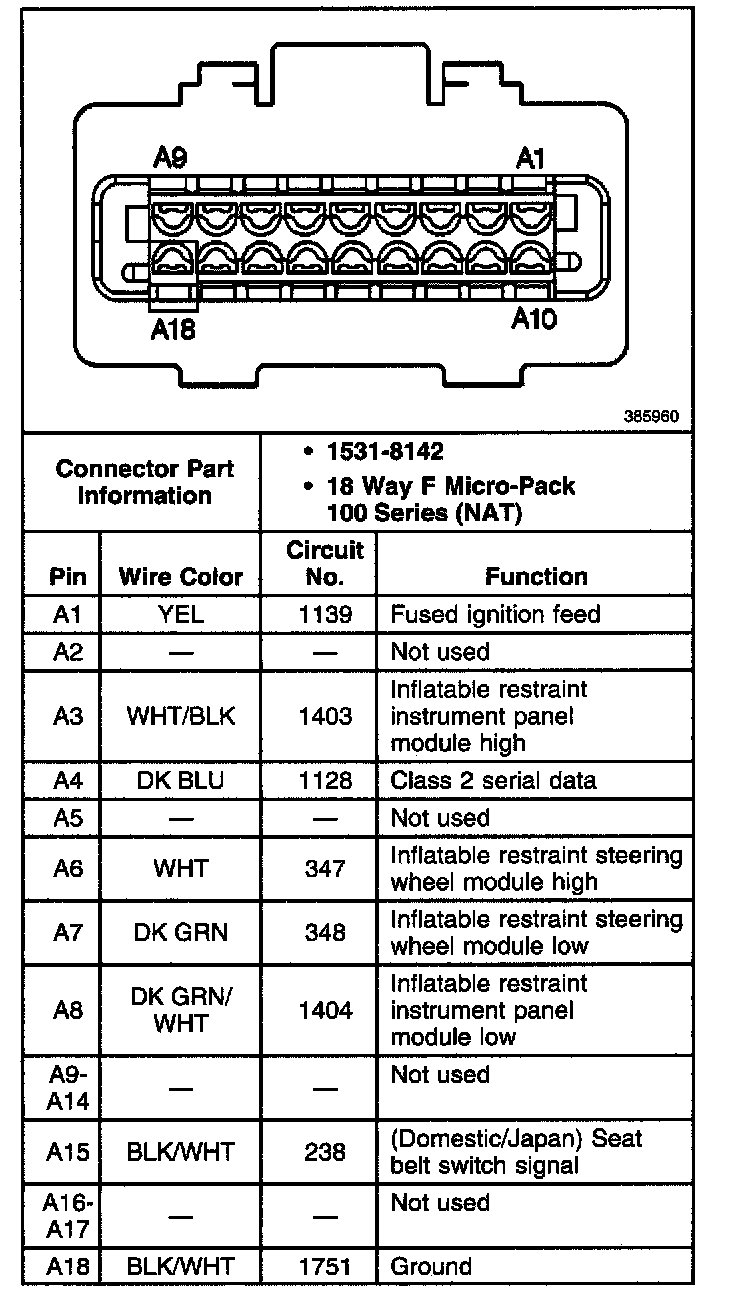

Air Bag Control Module
Air Bag Control Module
Inflatable Restraint Sensing And Diagnostic Module:
