C1 (Blue)
C1 (Blue)

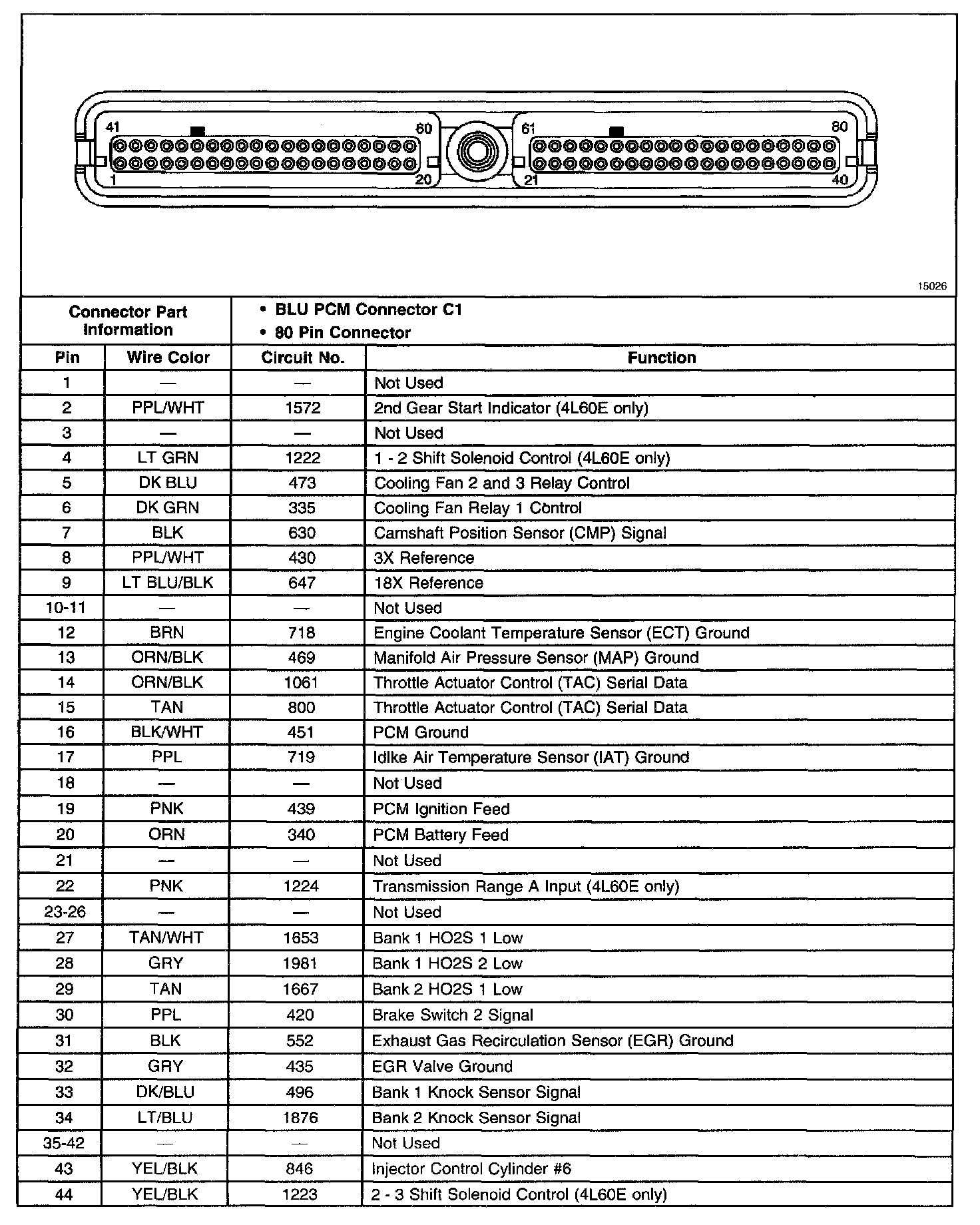

Powertrain Control Module Connector C1 (BLU) End View (Part 1 Of 2):

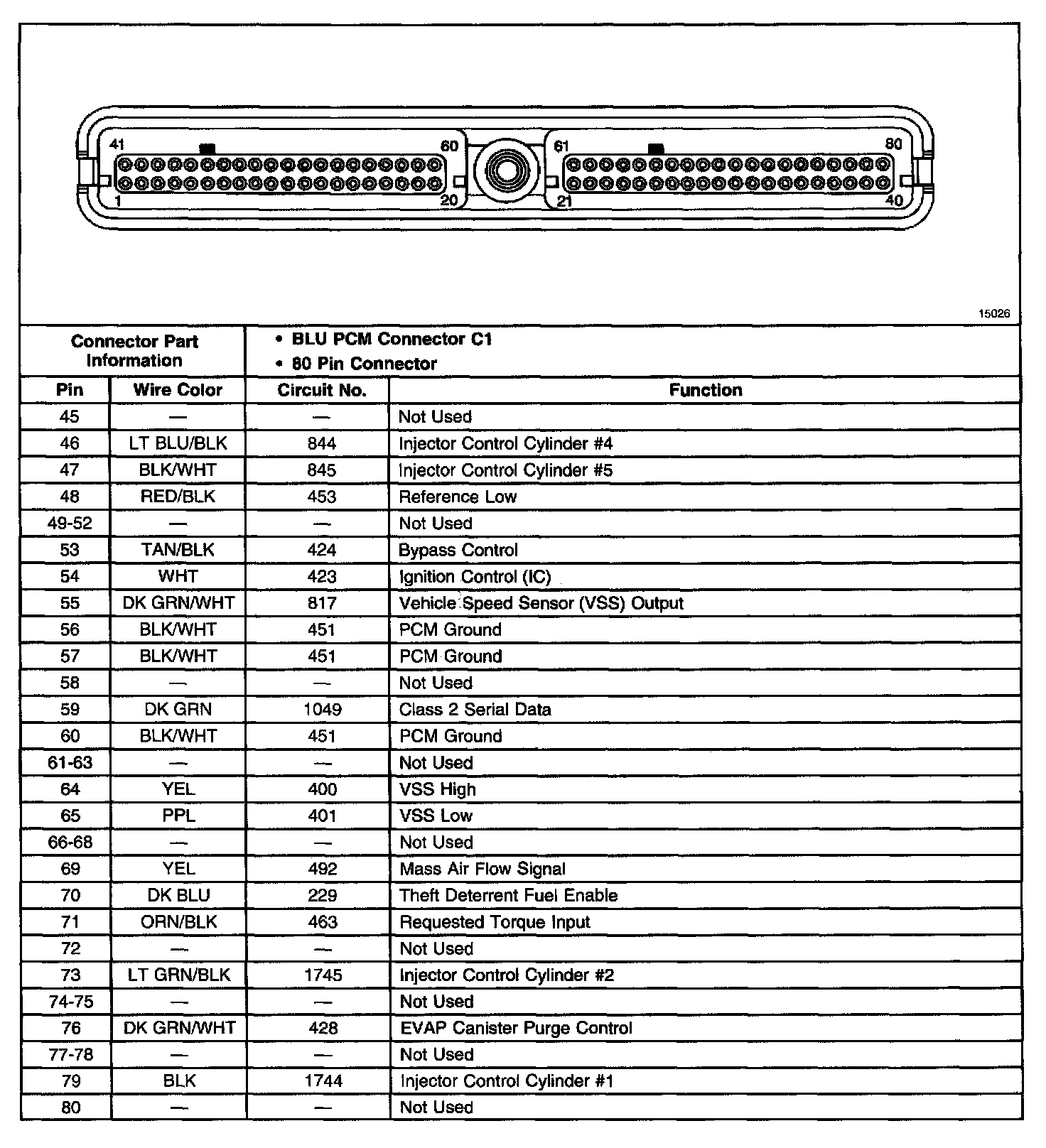

Powertrain Control Module Connector C1 (BLU) End View (Part 2 Of 2):
