Home >> Pontiac >> 1999 >> Firefly (CANADA) L4-1.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power Locks >> Power Door Lock Control Module

Power Door Lock Control Module

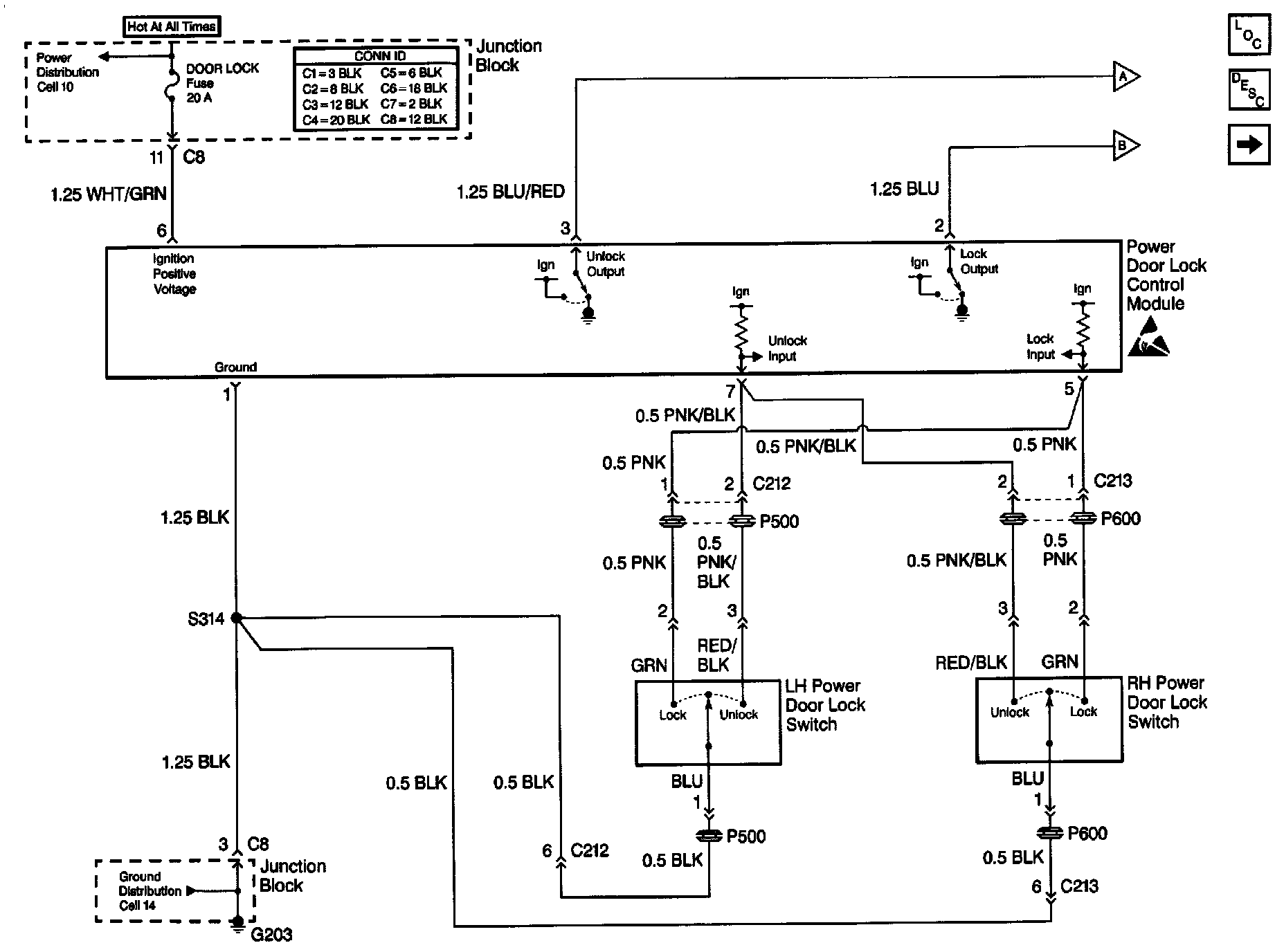

Door Locks Schematics: Power Door Lock Control Module:
