Home >> Pontiac >> 1998 >> Firefly (CANADA) L4-1.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block >> Relay Box

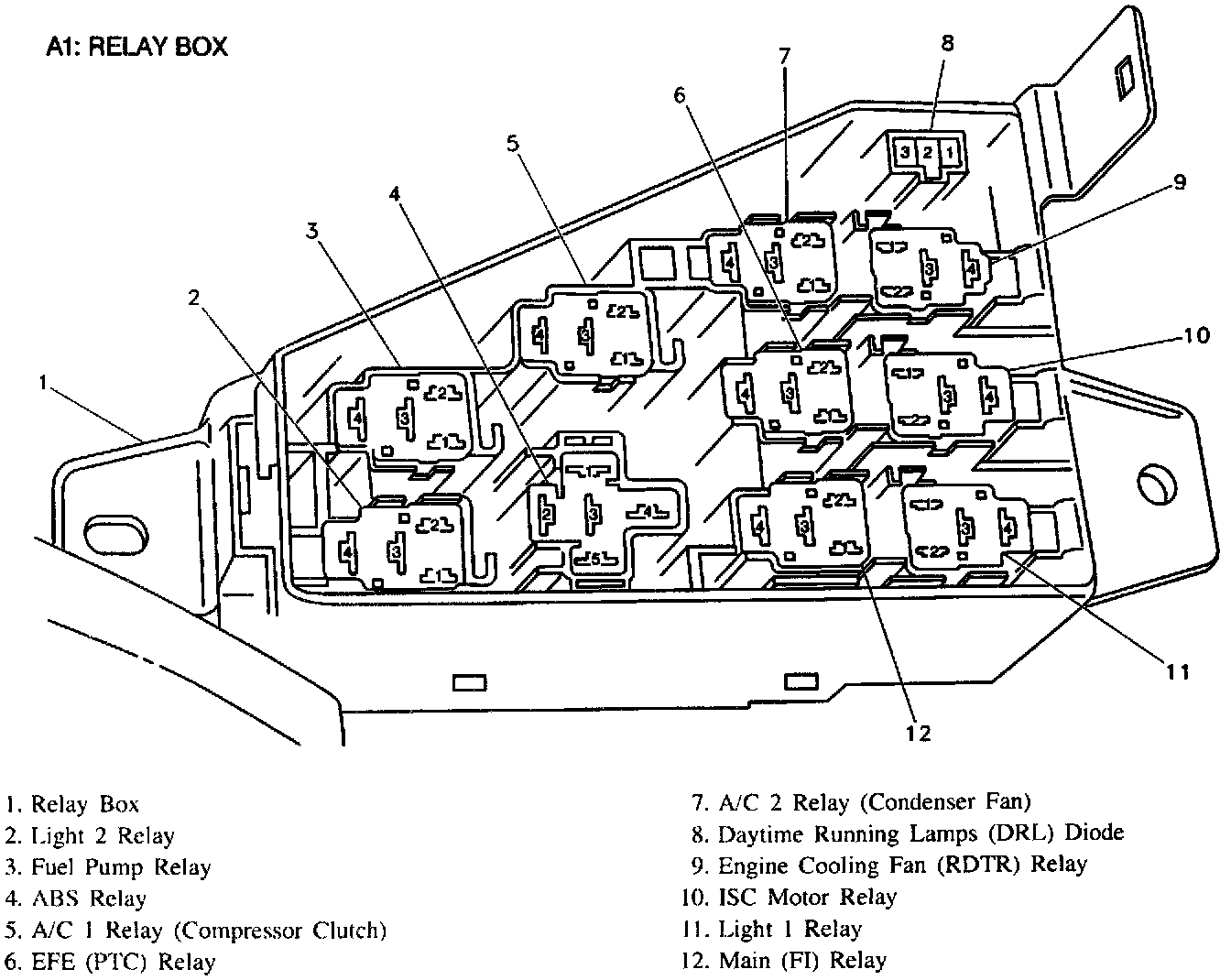

Relay Box

Relay Box:
