Home >> Pontiac >> 1998 >> Firefly (CANADA) L3-1.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module HVAC >> A/C Amplifier Connector

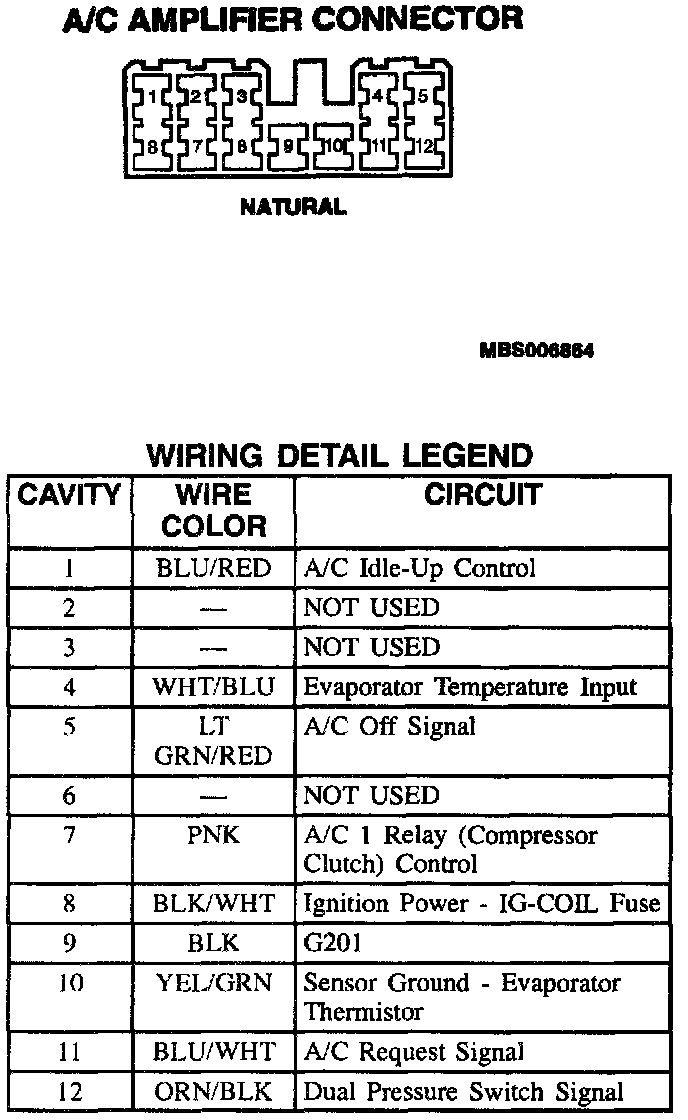

A/C Amplifier Connector

A/C Amplifier Connector:
