Headlamp Control Module

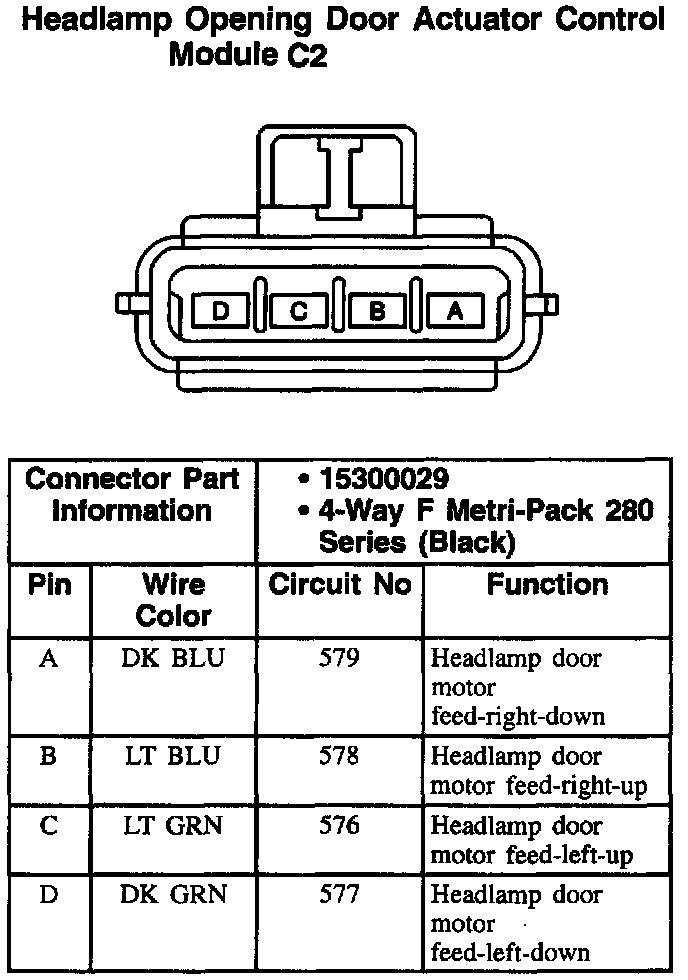

Headlamp Opening Door Actuator Control Module C2:

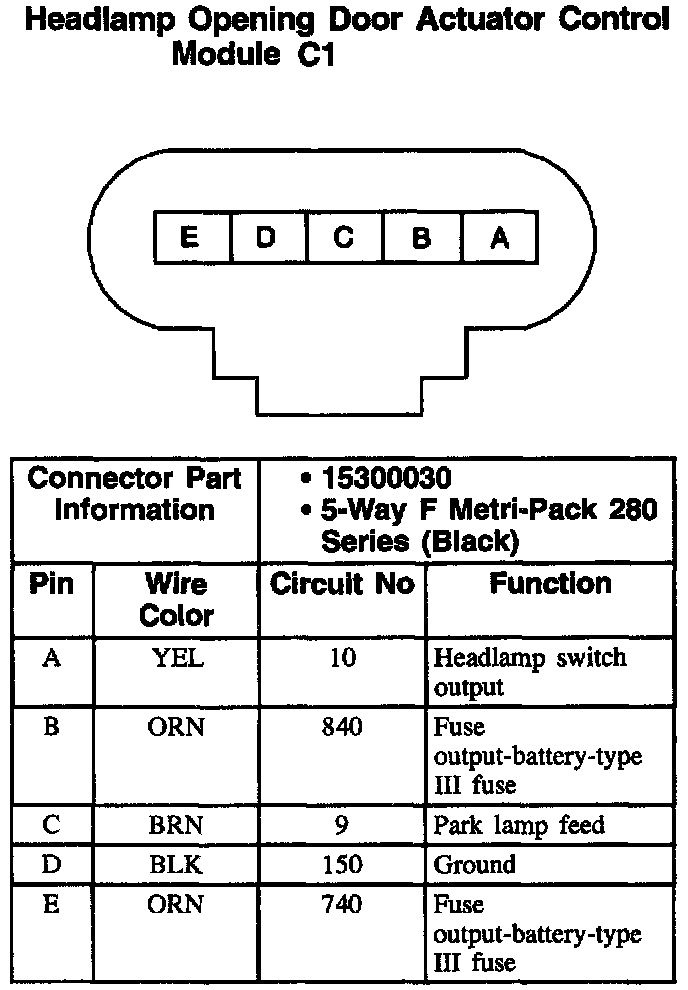

Headlmap Opening Door Actuator Control Module C1:
