Home >> Pontiac >> 1997 >> Trans Sport V6-3.4L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Compressor/Pump Relay, Suspension Control >> Auto Level Control (ALC) Air Compressor

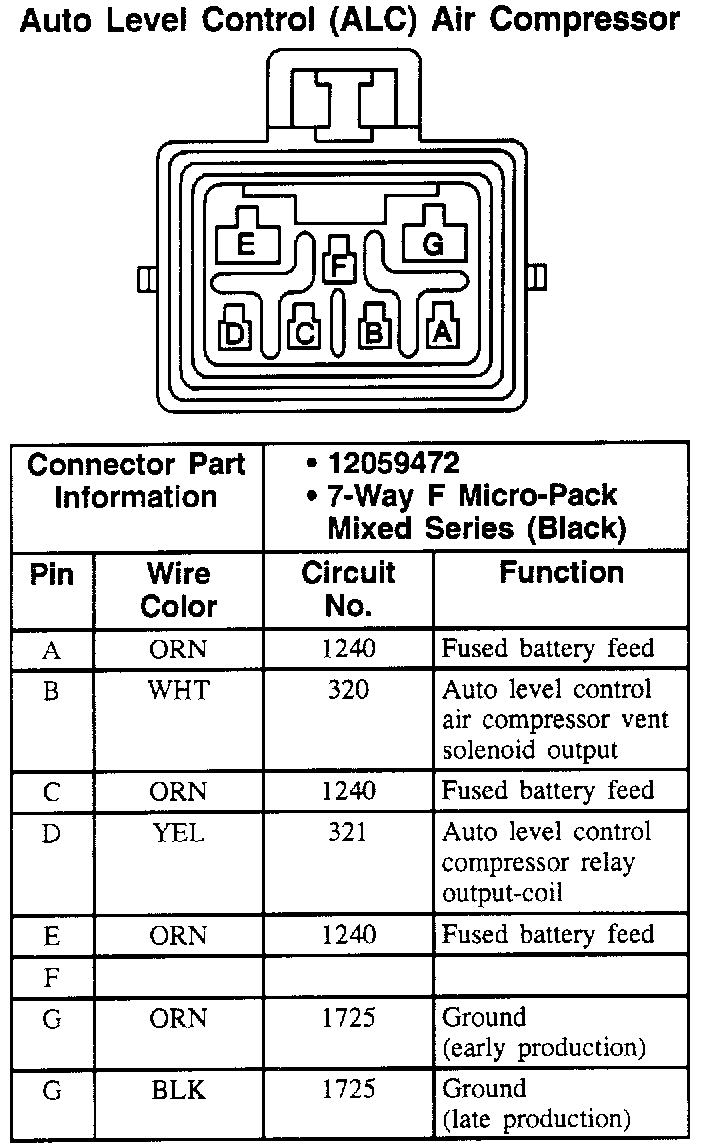

Auto Level Control (ALC) Air Compressor

Auto Level Control (ALC) Air Compressor:
