Home >> Pontiac >> 1997 >> Firefly (CANADA) L4-1.3L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Hydraulic Assembly, Traction Control

Hydraulic Assembly, Traction Control

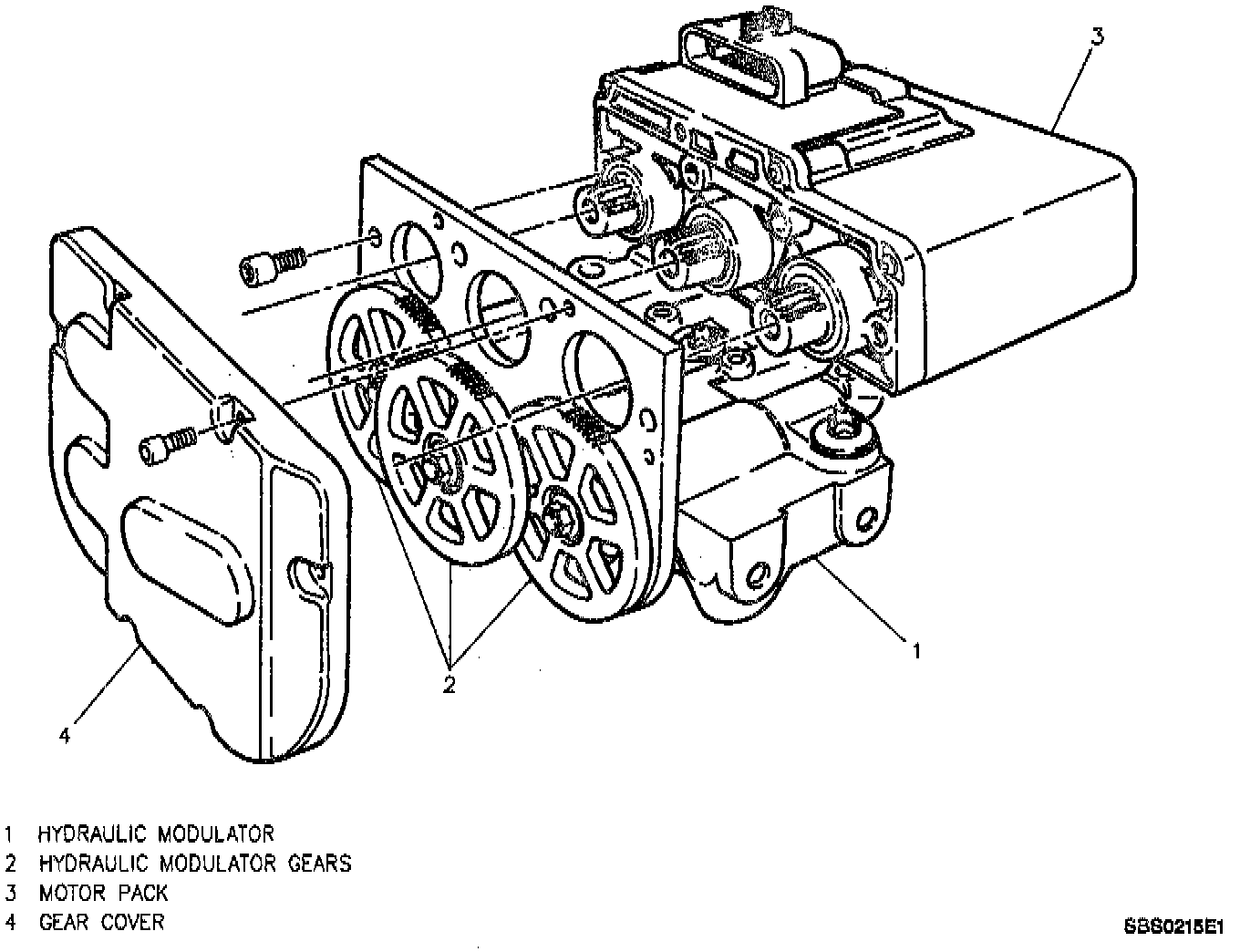

Hydraulic Modulator/Motor Pack Assembly:
