Home >> Pontiac >> 1997 >> Firefly (CANADA) L3-1.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuse Block

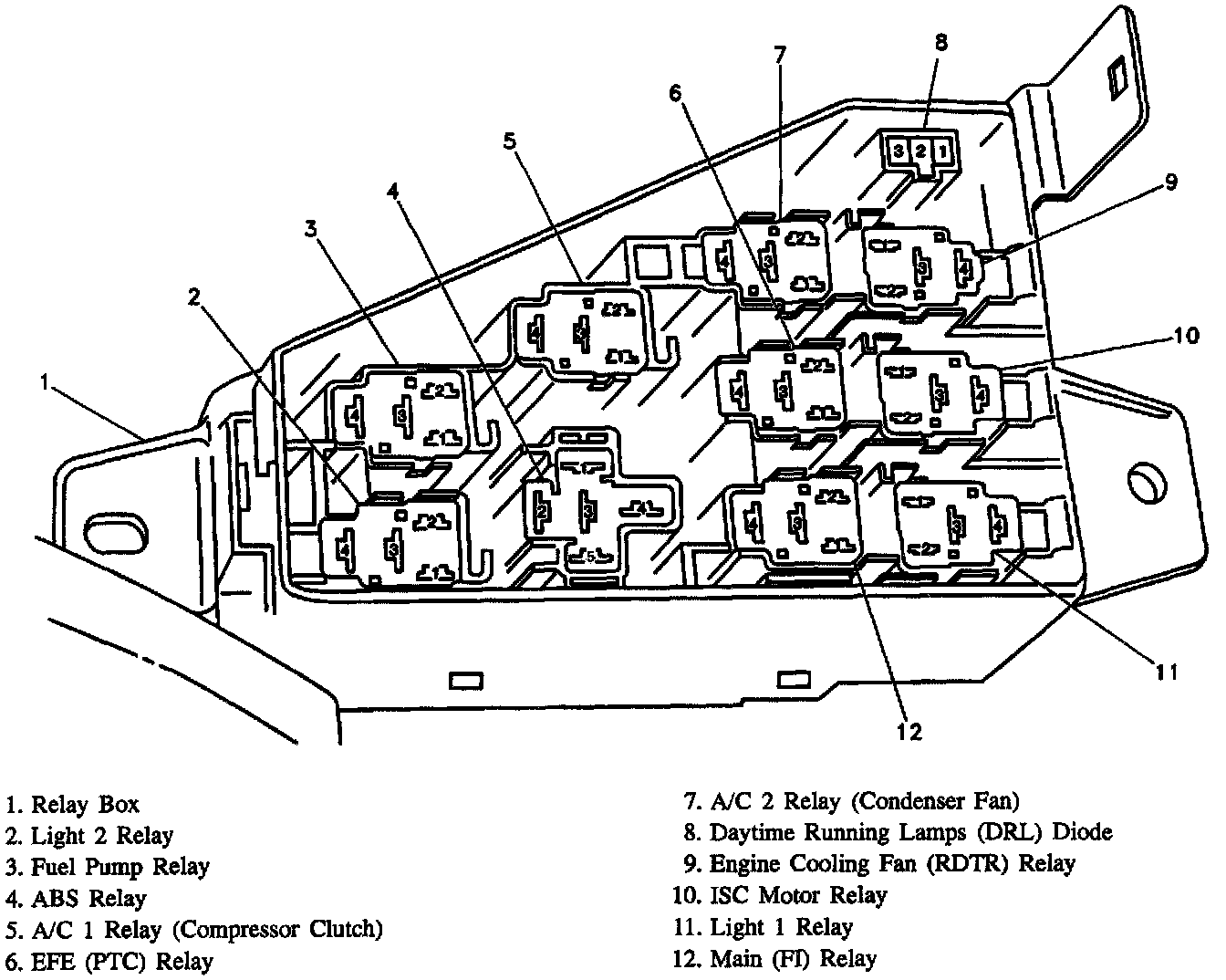

Fuse Block

A1: Relay Box:
