Auto Level Control Solenoid Valve

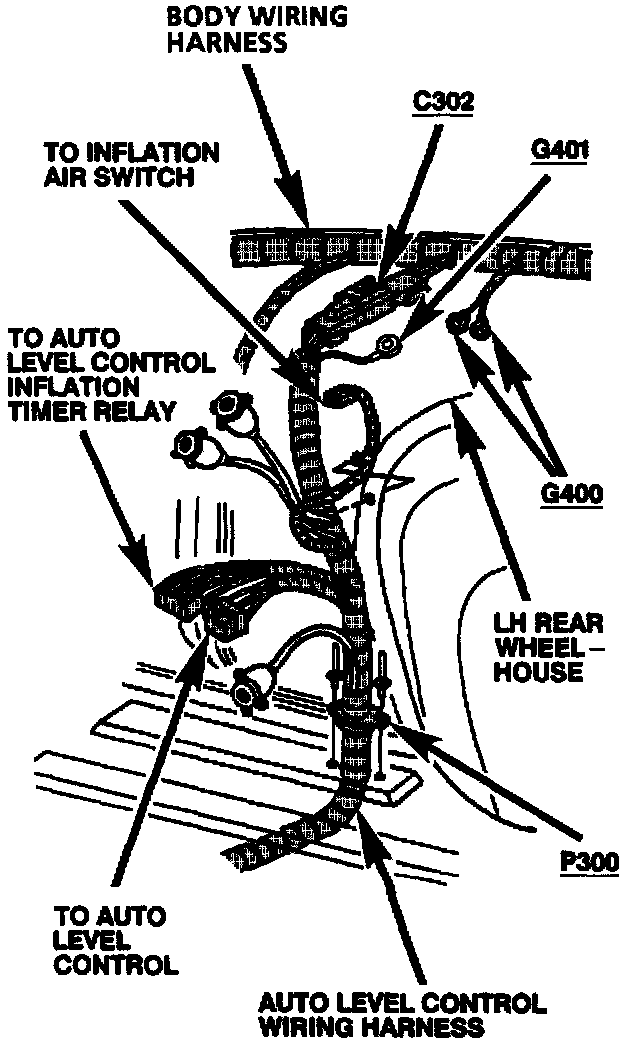

LH Rear Inner Quarter Panel (Behind Wheelhouse):

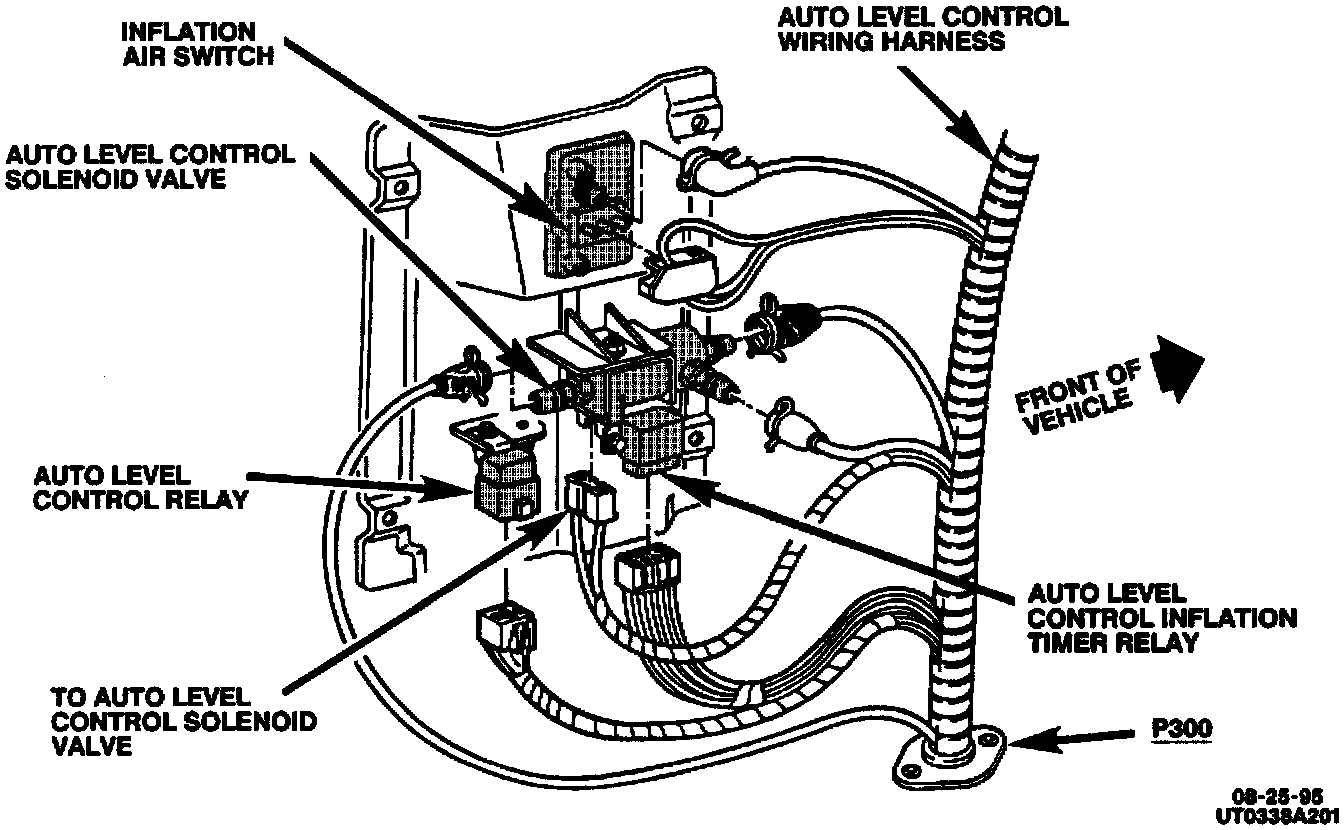

LH Rear Inner Quarter Panel (Behind Wheelhouse):
