Powertrain Control Module - PCM

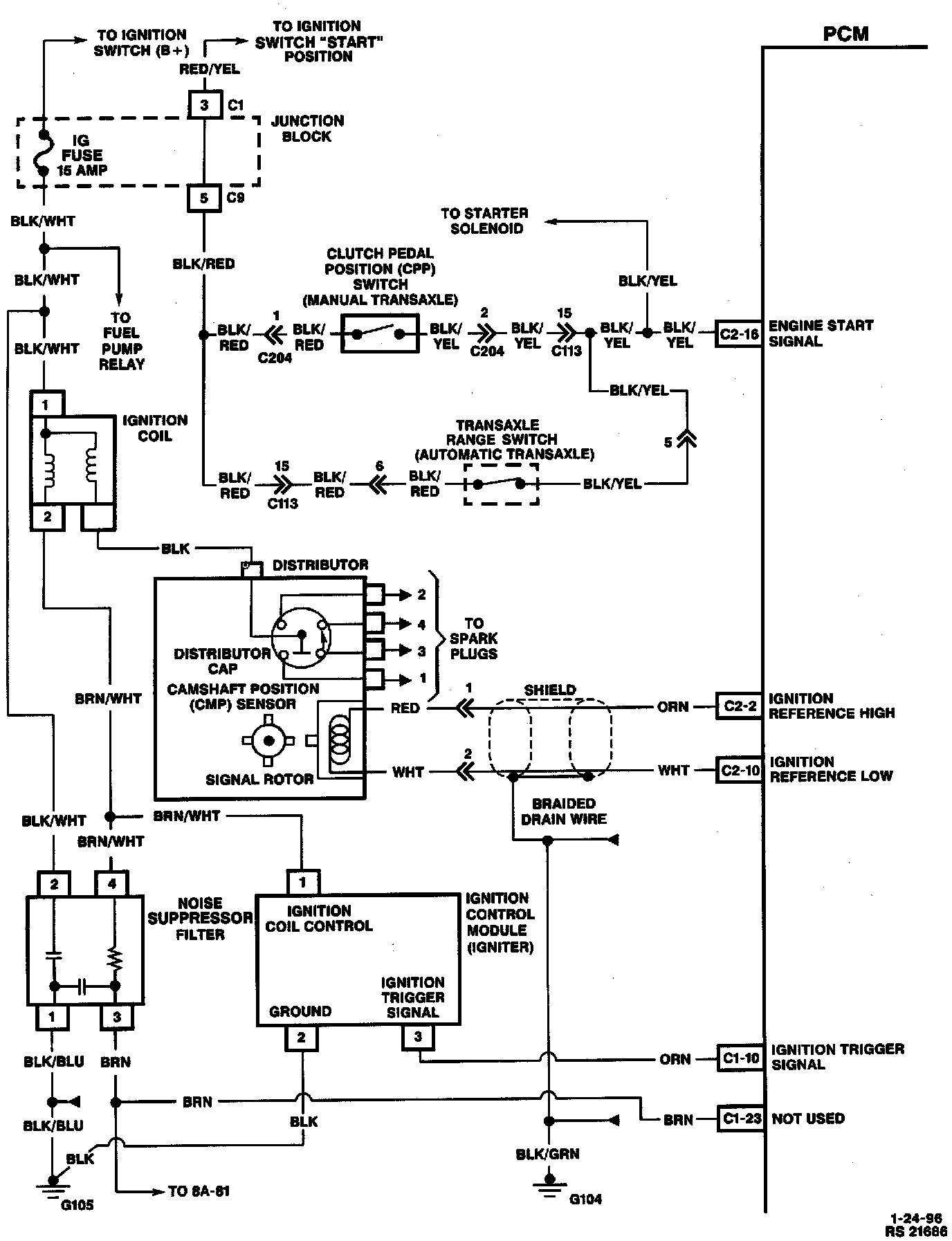

PCM Wiring Diagram (1 0f 7):

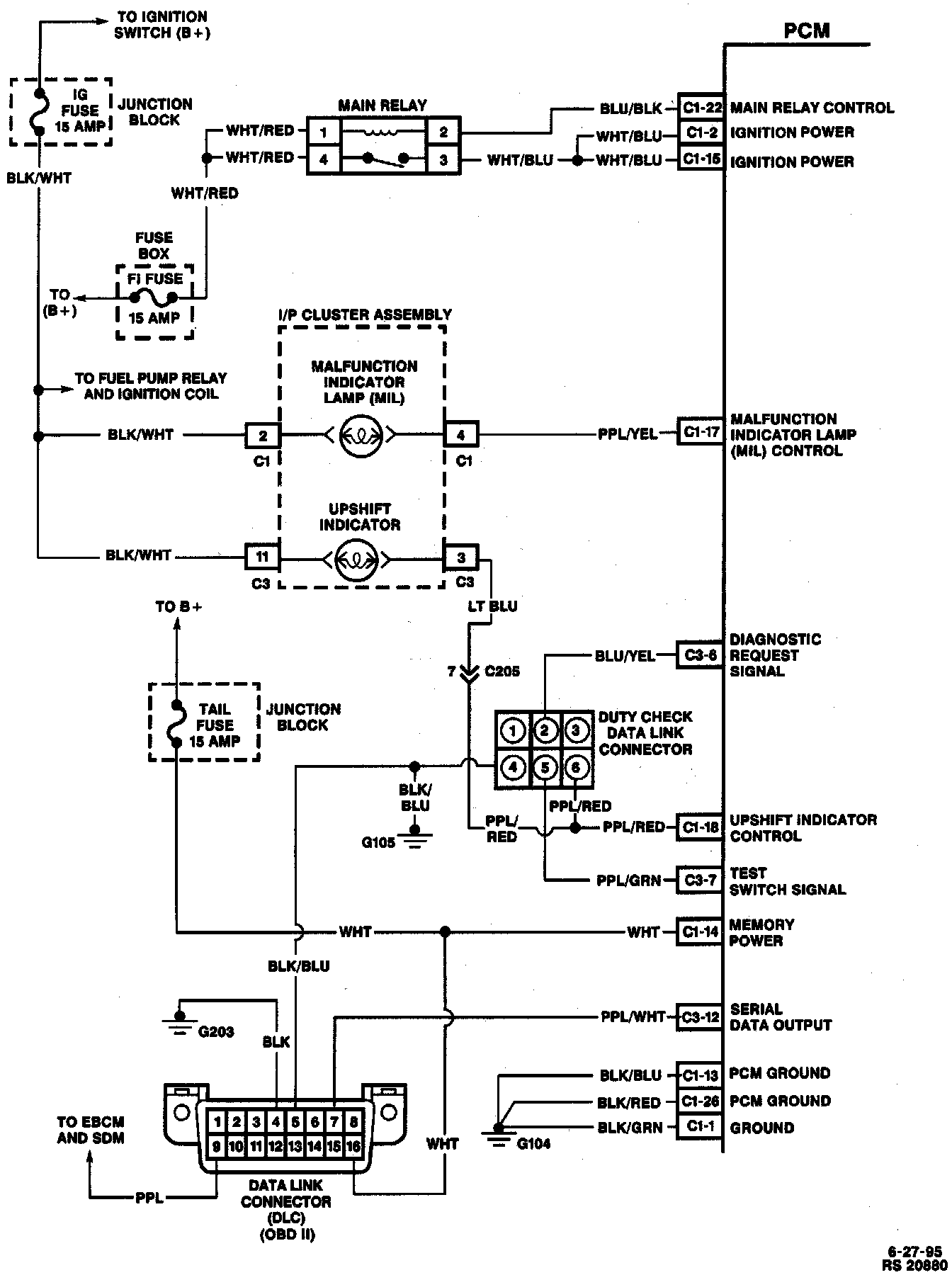

PCM Wiring Diagram (2 0f 7):

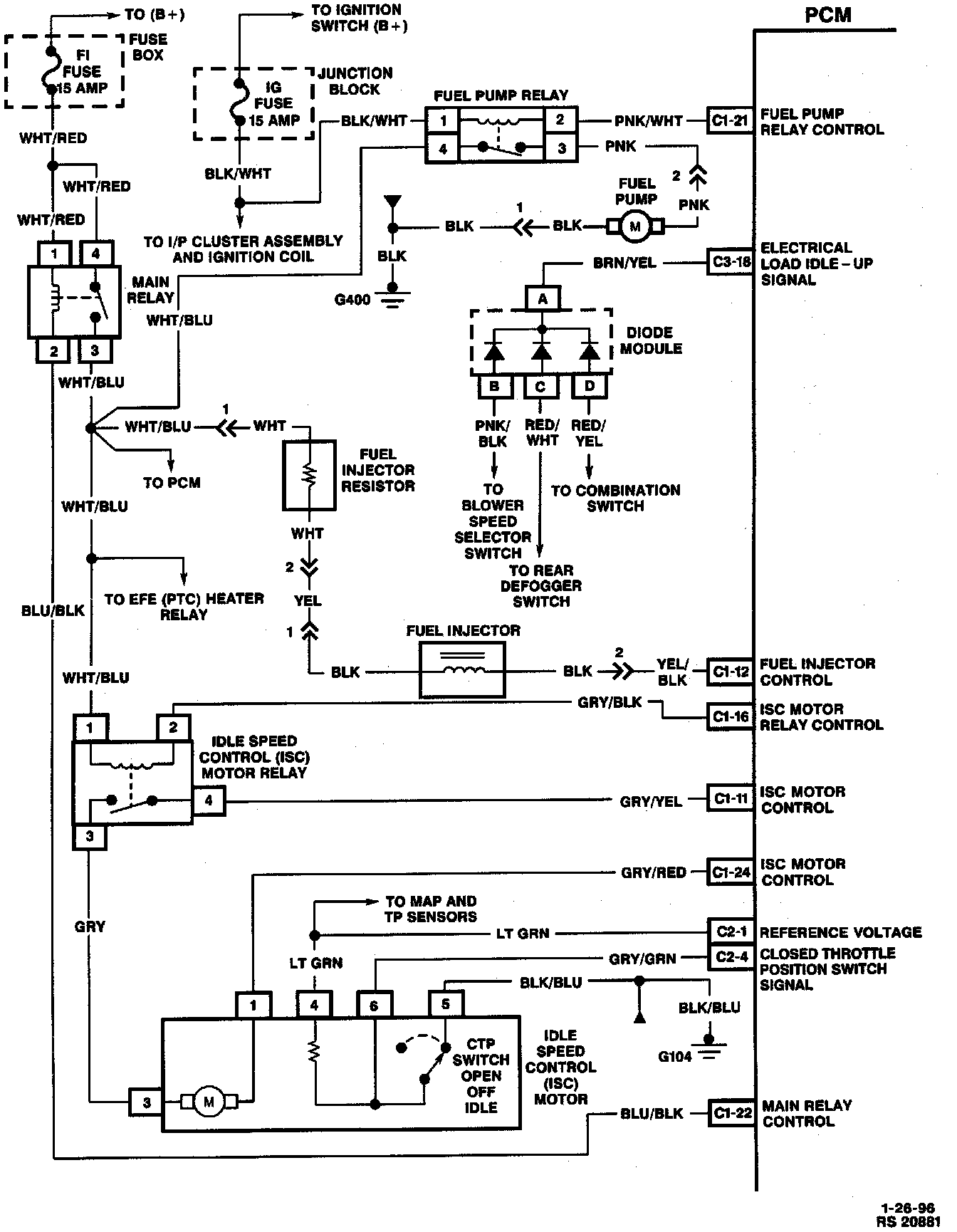

PCM Wiring Diagram (3 0f 7):

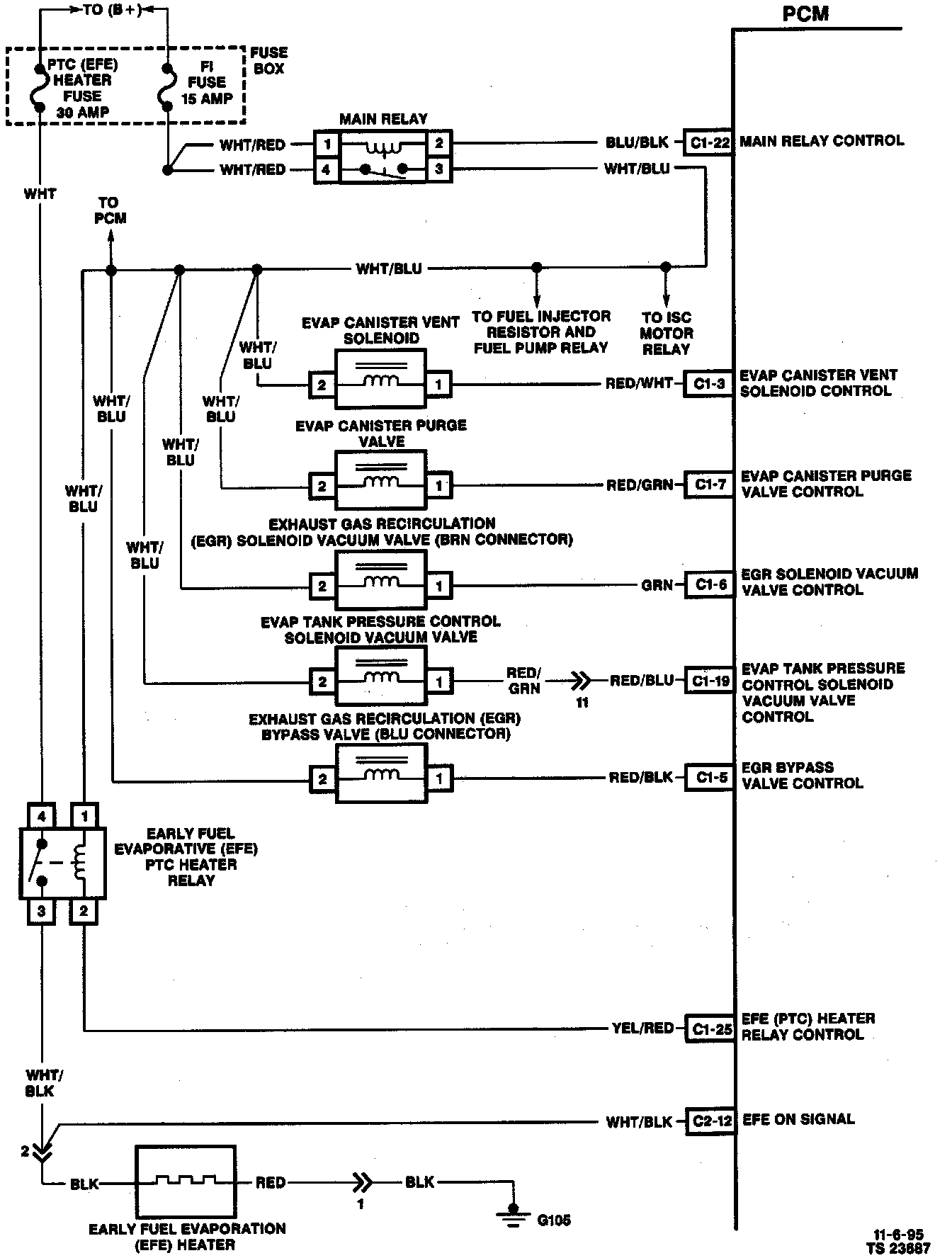

PCM Wiring Diagram (4 of 7):

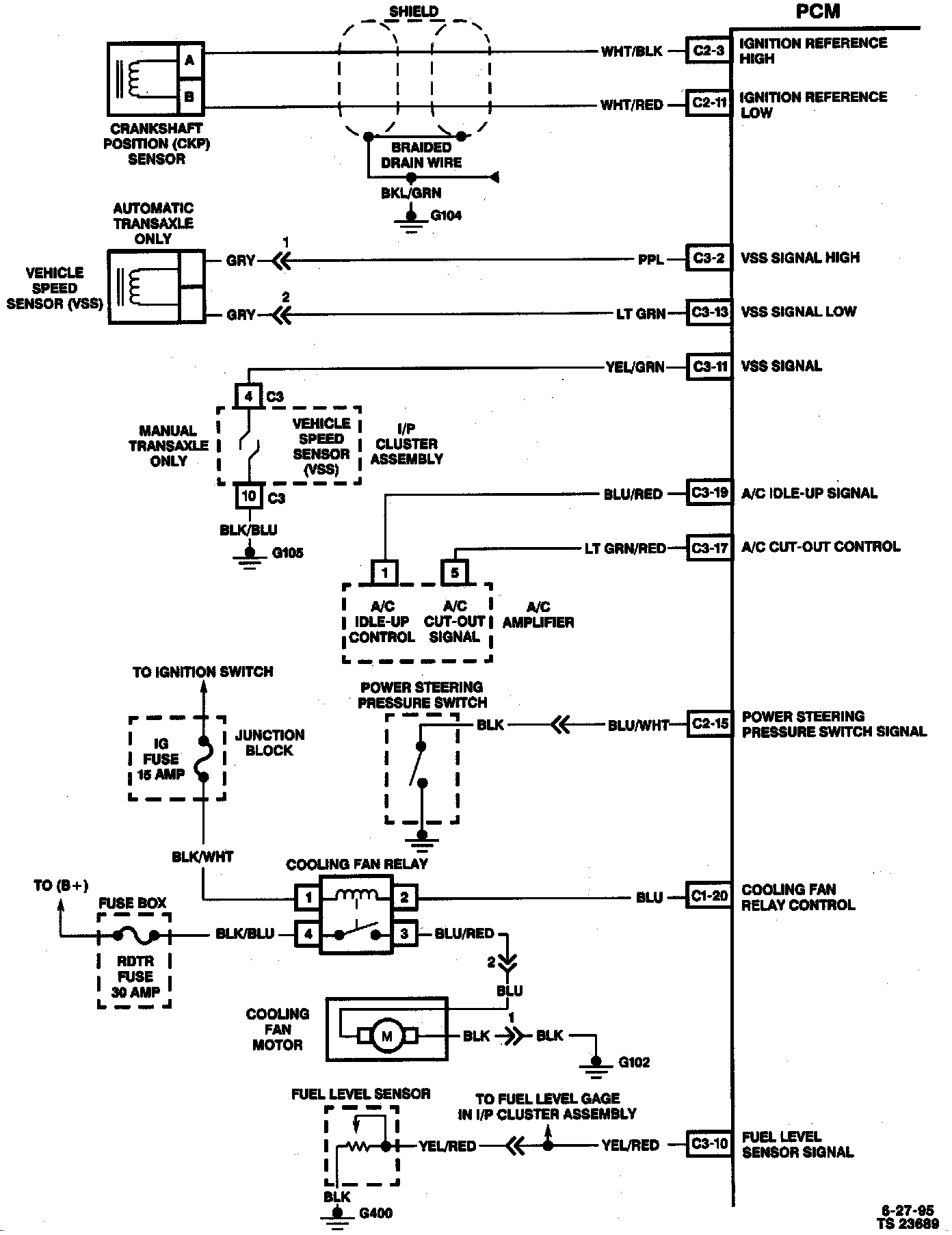

PCM Wiring Diagram (5 of 7):

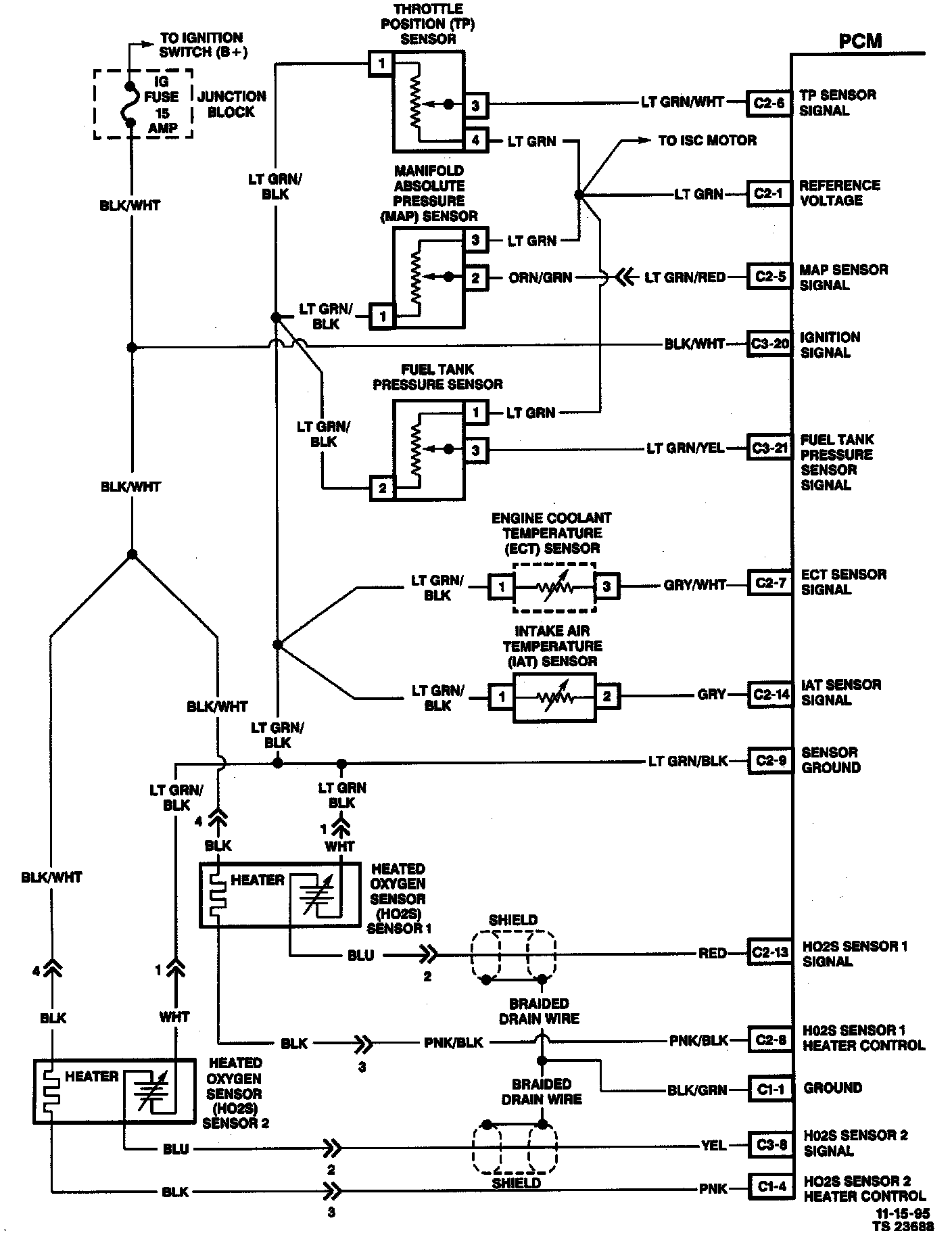

PCM Wiring Diagram (6 of 7):



PCM Wiring Diagram (7 of 7):
