Home >> Pontiac >> 1996 >> Firefly (CANADA) L4-1.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module >> Sensing and Diagnostic Module (SDM)

Sensing and Diagnostic Module (SDM)

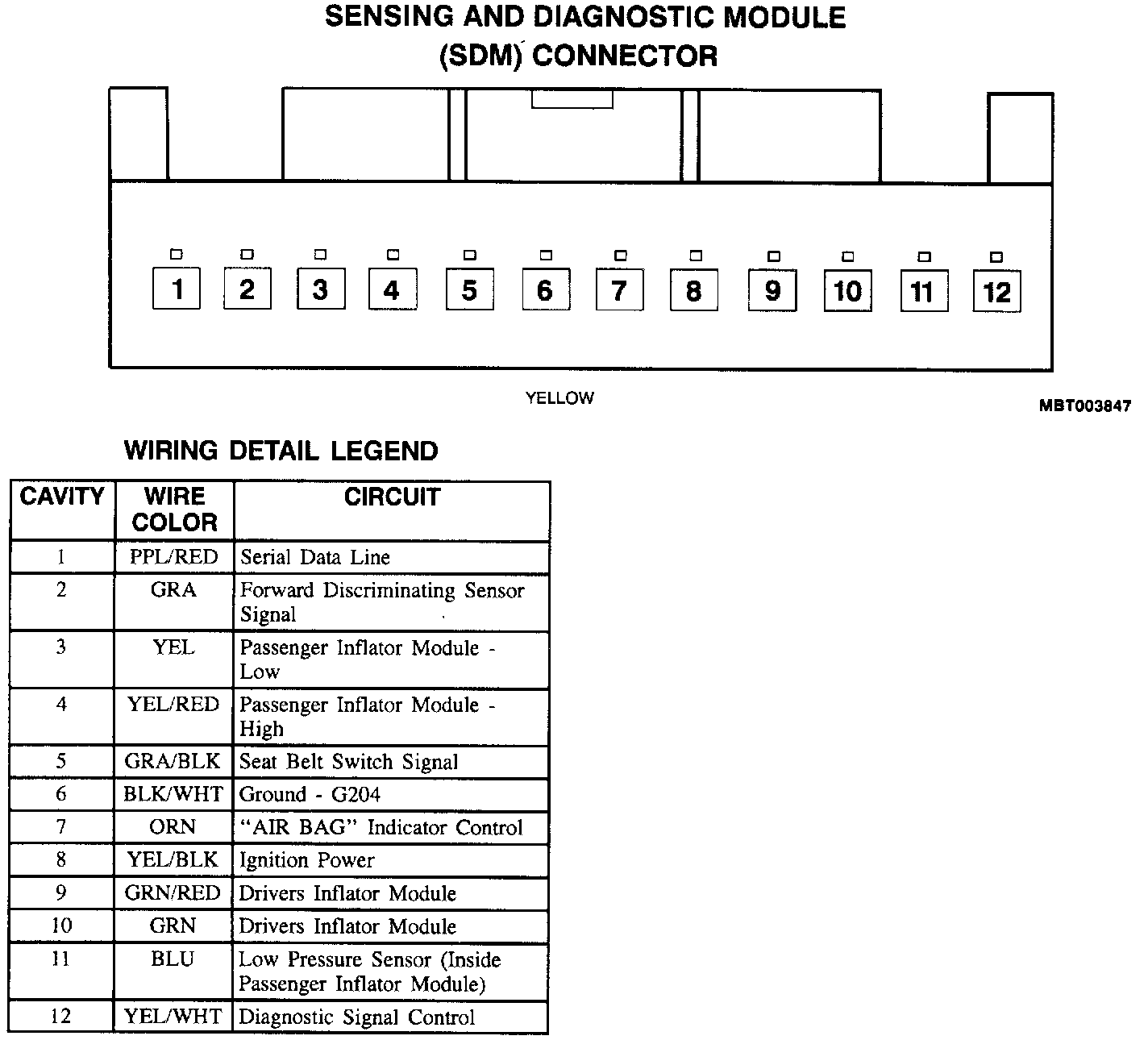

Sensing And Diagnostic Module (SDM) Connector:
