Home >> Pontiac >> 1995 >> Sunfire L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Diagnostic/Energy Reserve Module (DERM)

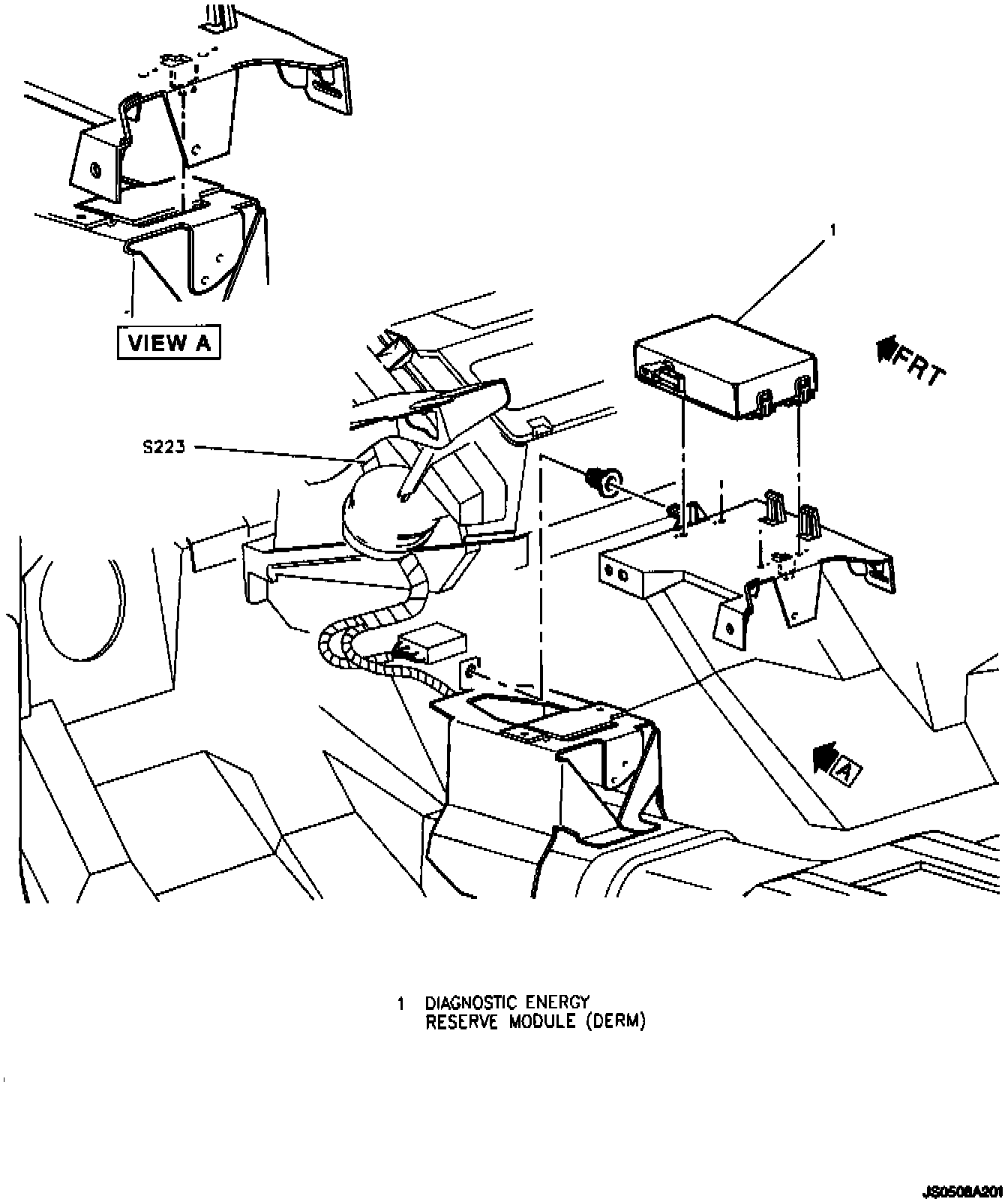

Diagnostic/Energy Reserve Module (DERM)

Center I/P Behind Console:
