LEMON Manuals: Even more car manuals for everyone
Home >> Pontiac >> 1994 >> J2000/Sunbird L4-121 2.0L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Engine Controls

Engine Controls

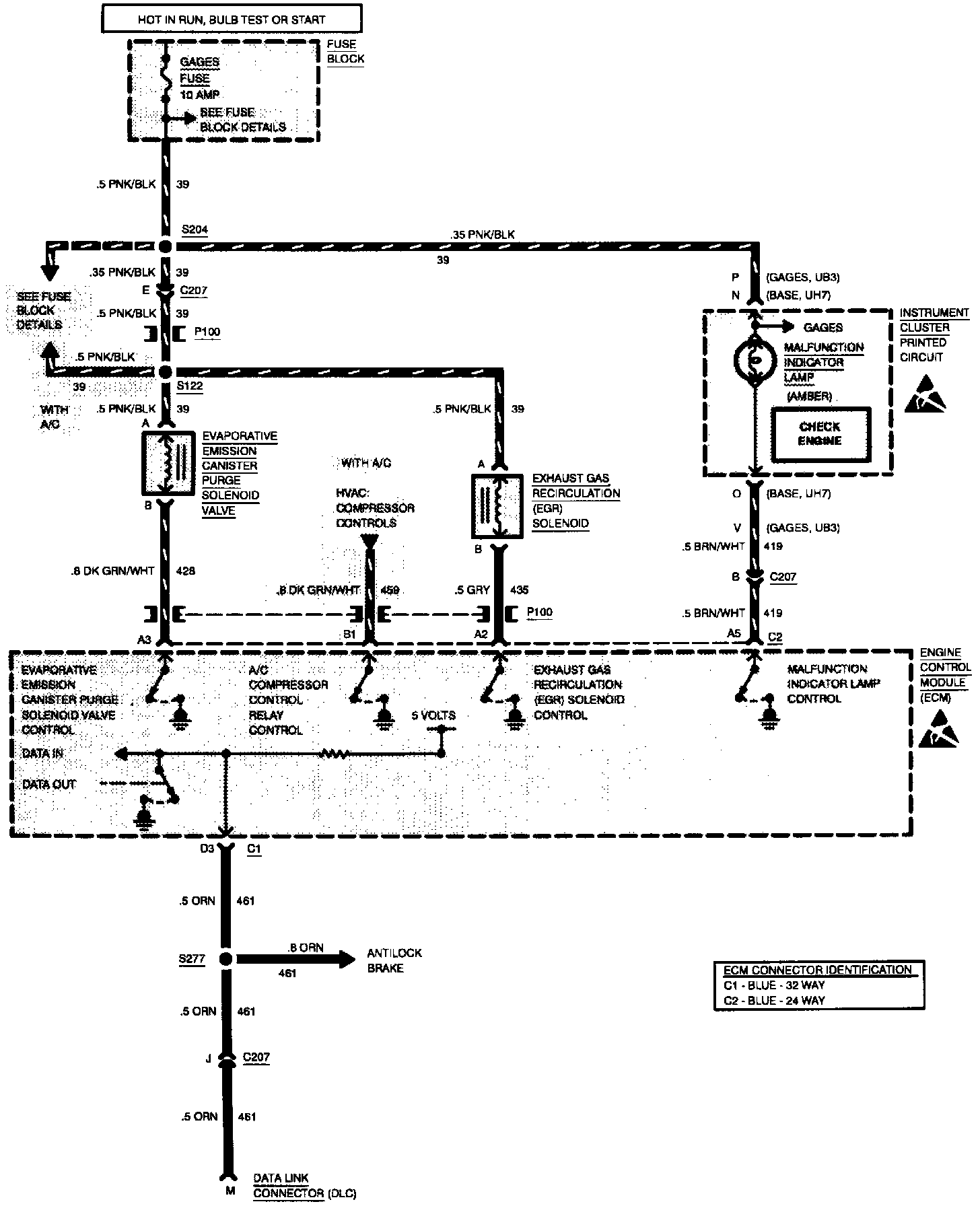

Engine Controls (Part 1 of 2):

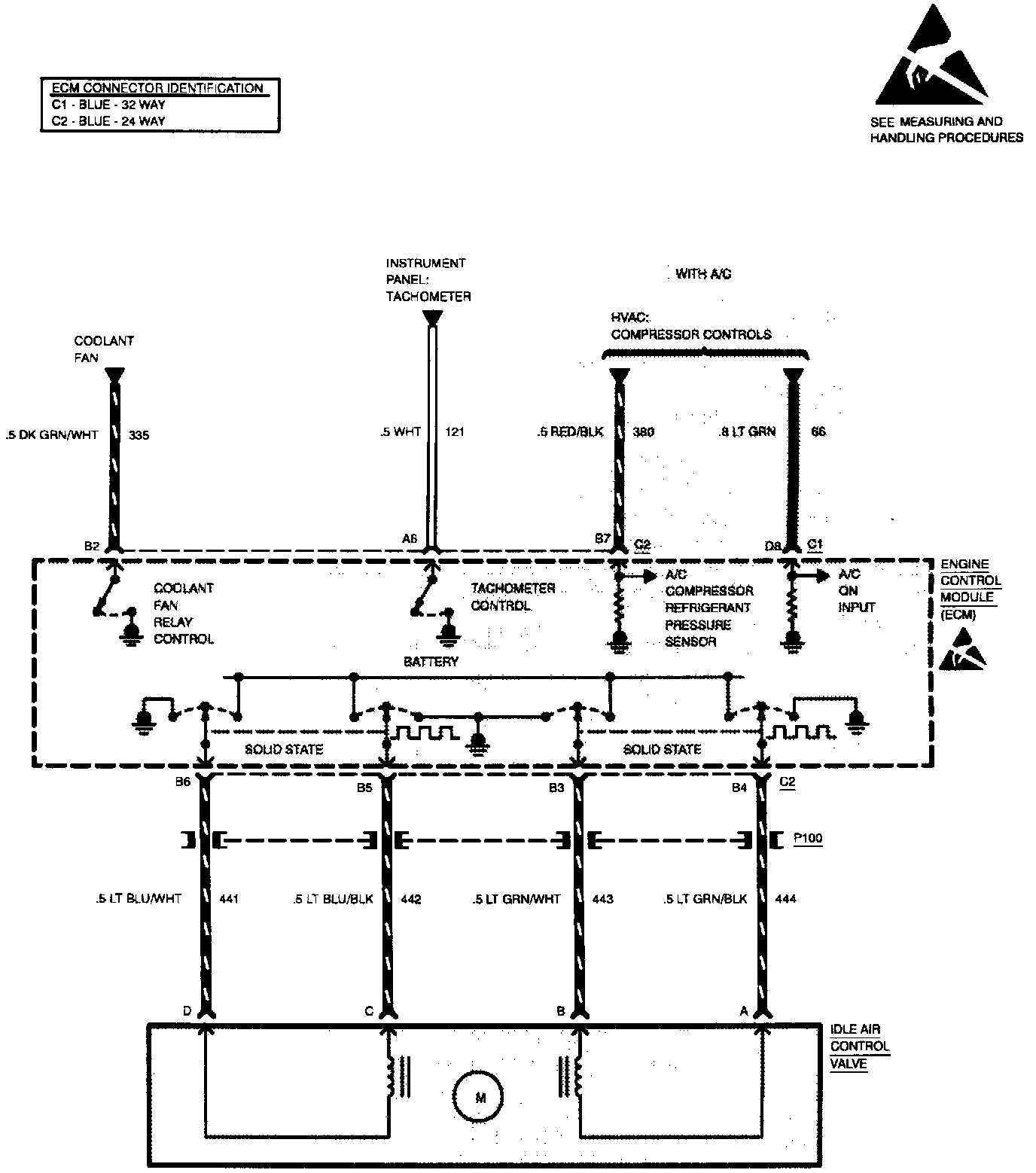

Engine Controls (Part 2 of 2):
