Home >> Pontiac >> 1993 >> Trans Sport V6-191 3.1L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Keyless Entry Module

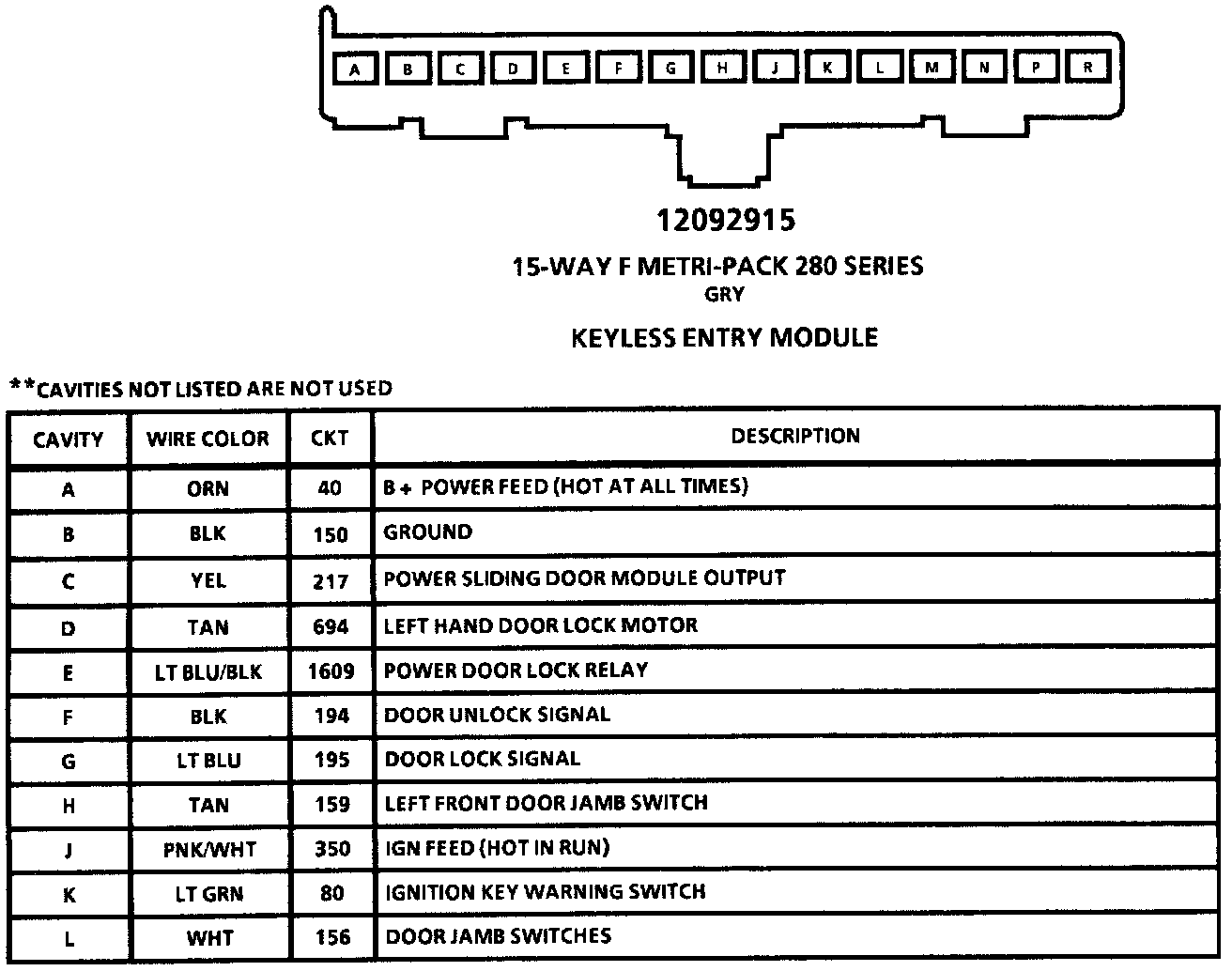

Keyless Entry Module

Connector Views: Keyless Entry Module:
