Power Window Switch

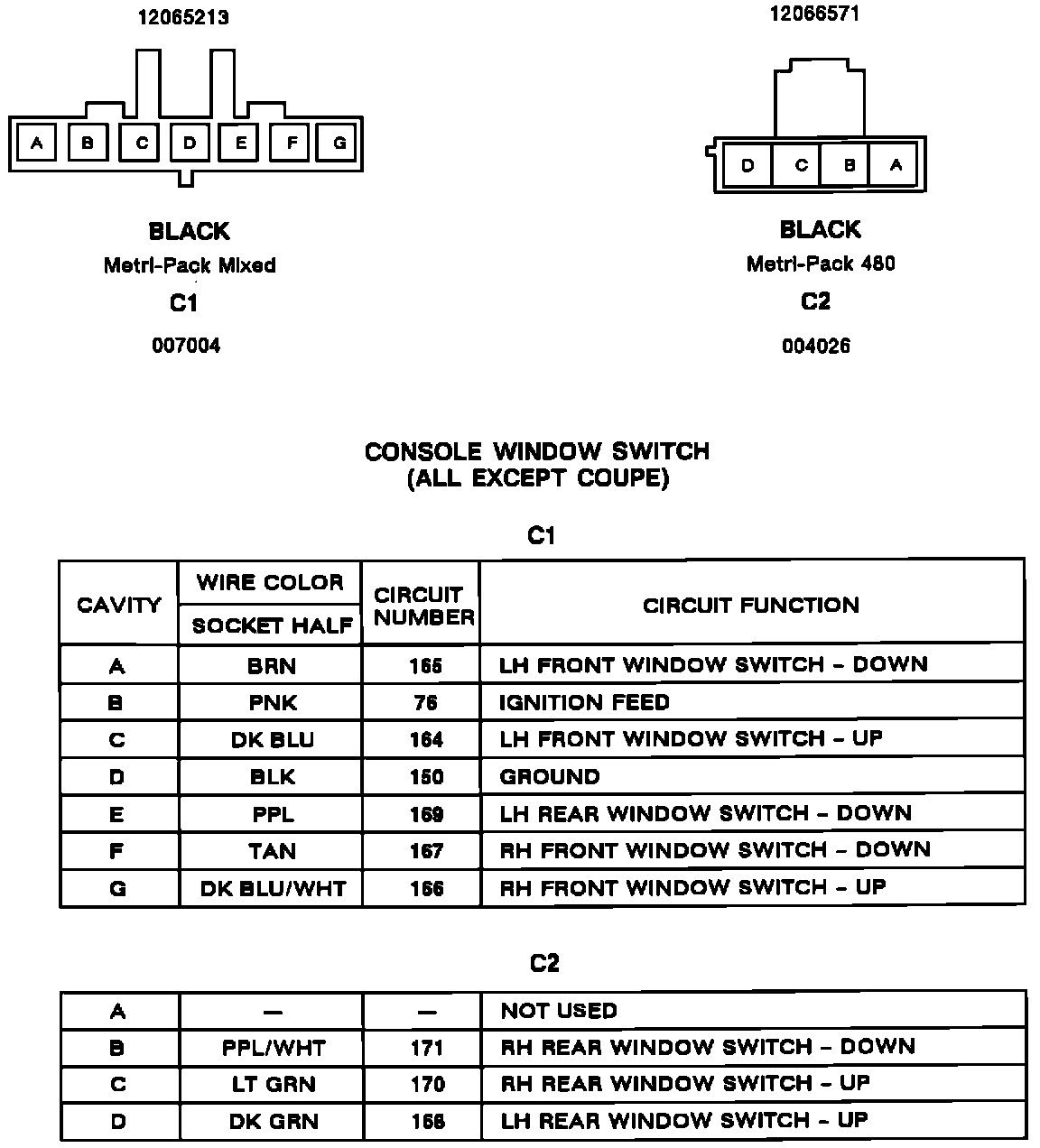

Console Window Switch Connector:

Console Window Switch Connector:

LH Rear Window Switch Connector:
