Home >> Pontiac >> 1993 >> Grand Prix V6-191 3.1L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch

Power Window Switch

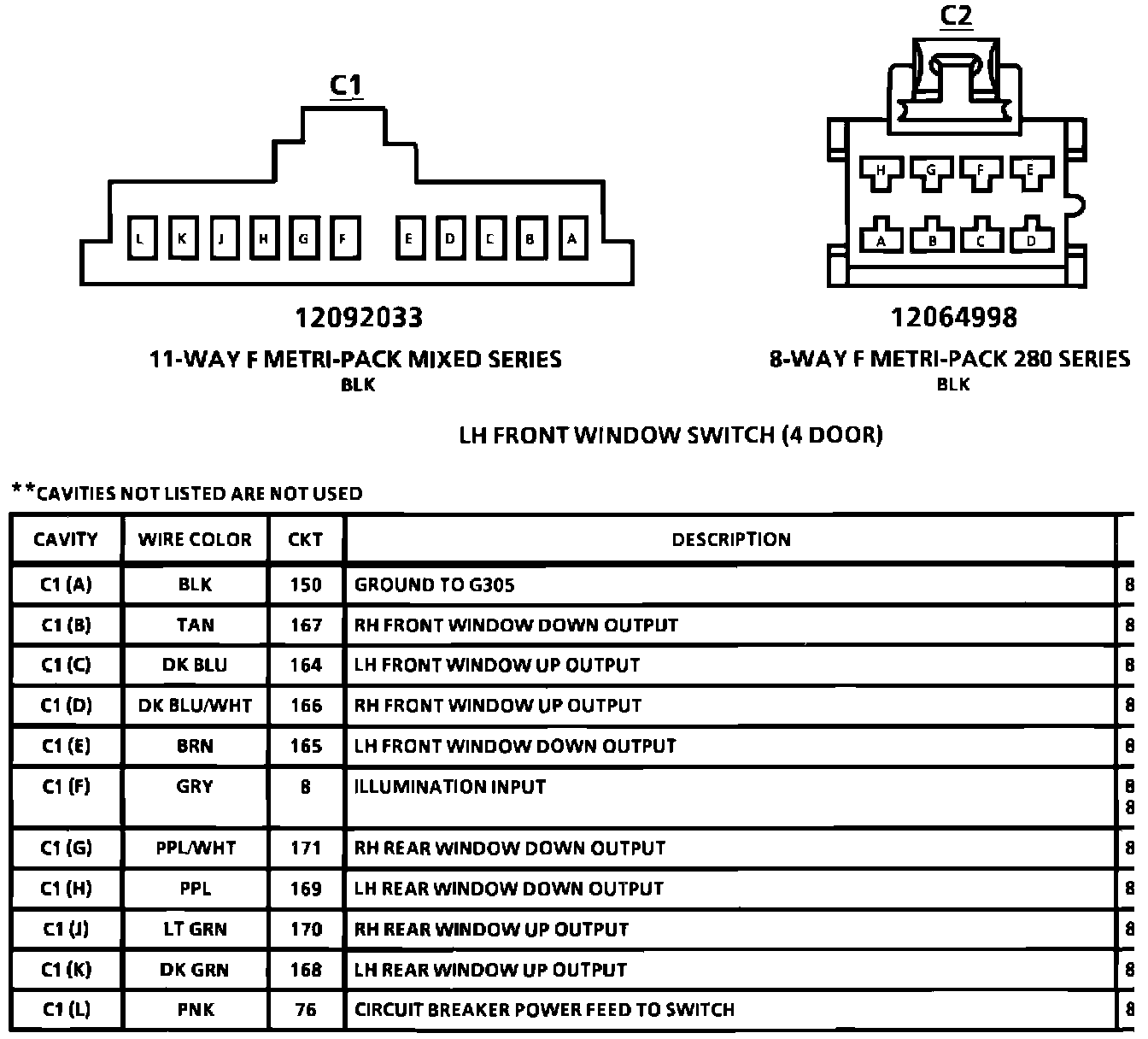

LH Front Window Switch Connector:



LH Master Switch/RH Power Window Switch Connector:



RH Power Window Switch Connector:



Rear Window Switch Connector:
