Interior Lighting Module

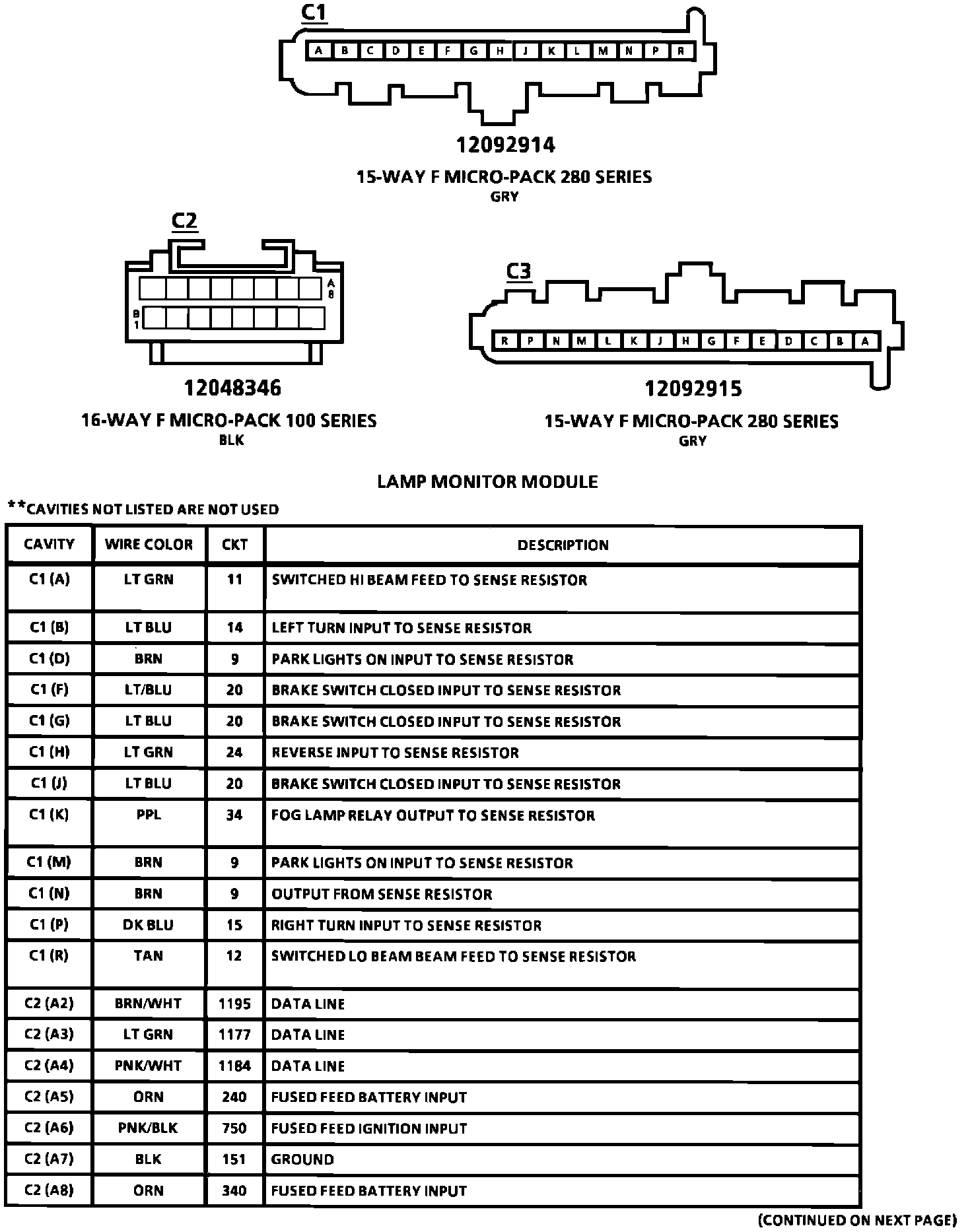

Lamp Monitor Module Connector:

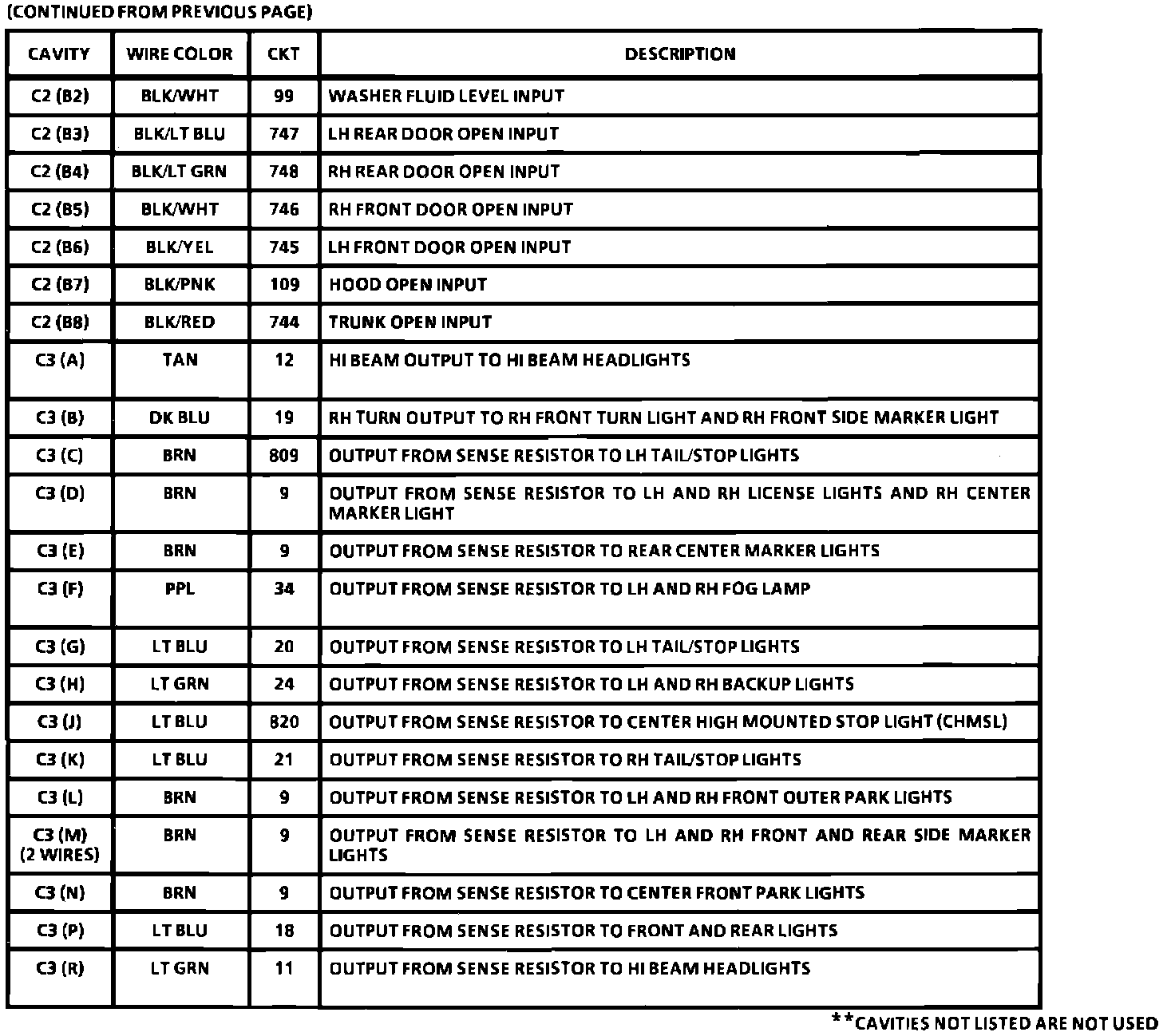

Lamp Monitor Module Connector:

Lamp Driver Module Connector:
