Pontiac
>>
1993
>>
Grand Prix V6-191 3.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
With Sequential Fuel Injection
With Sequential Fuel Injection

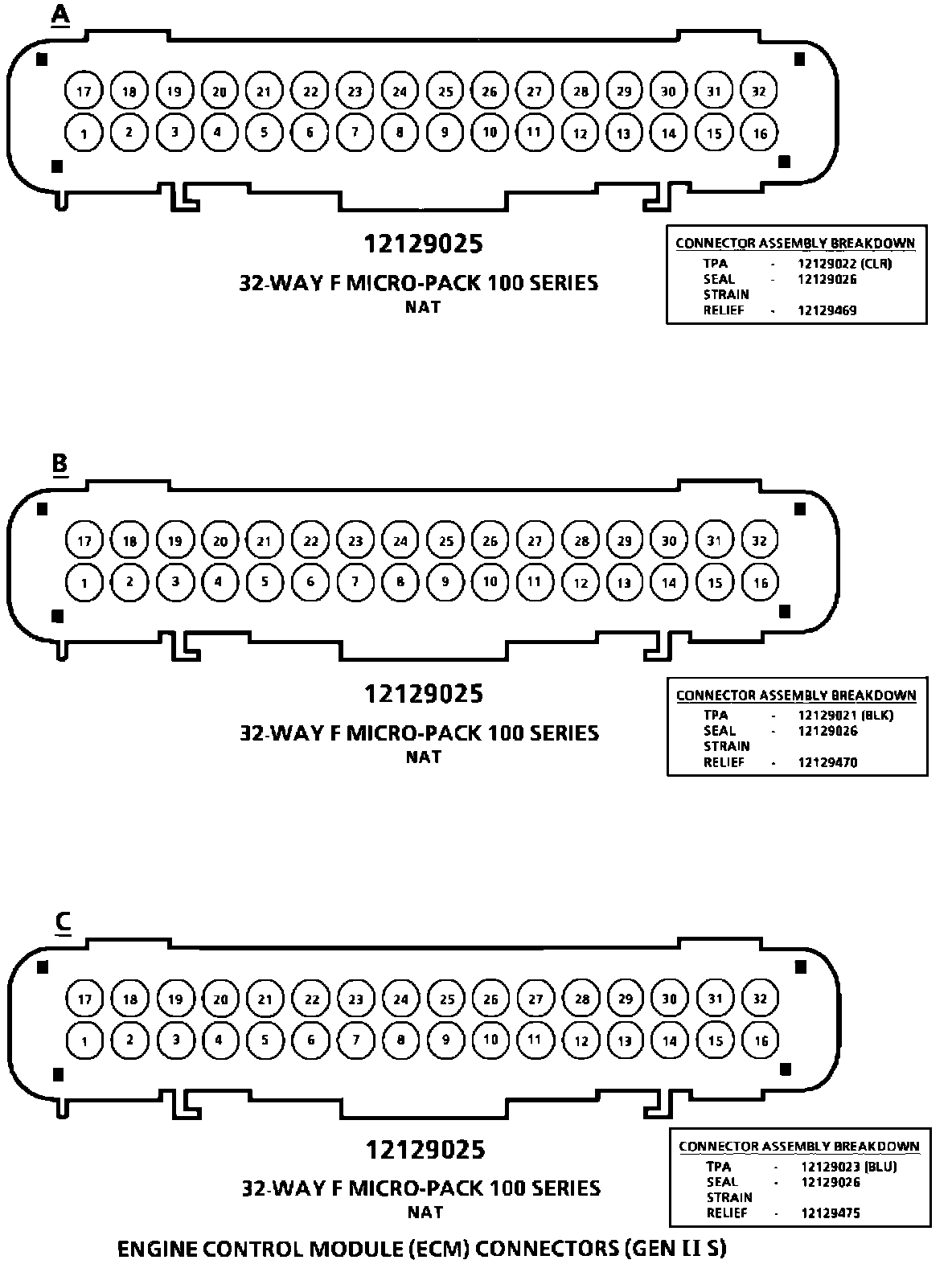

ECM Connector:

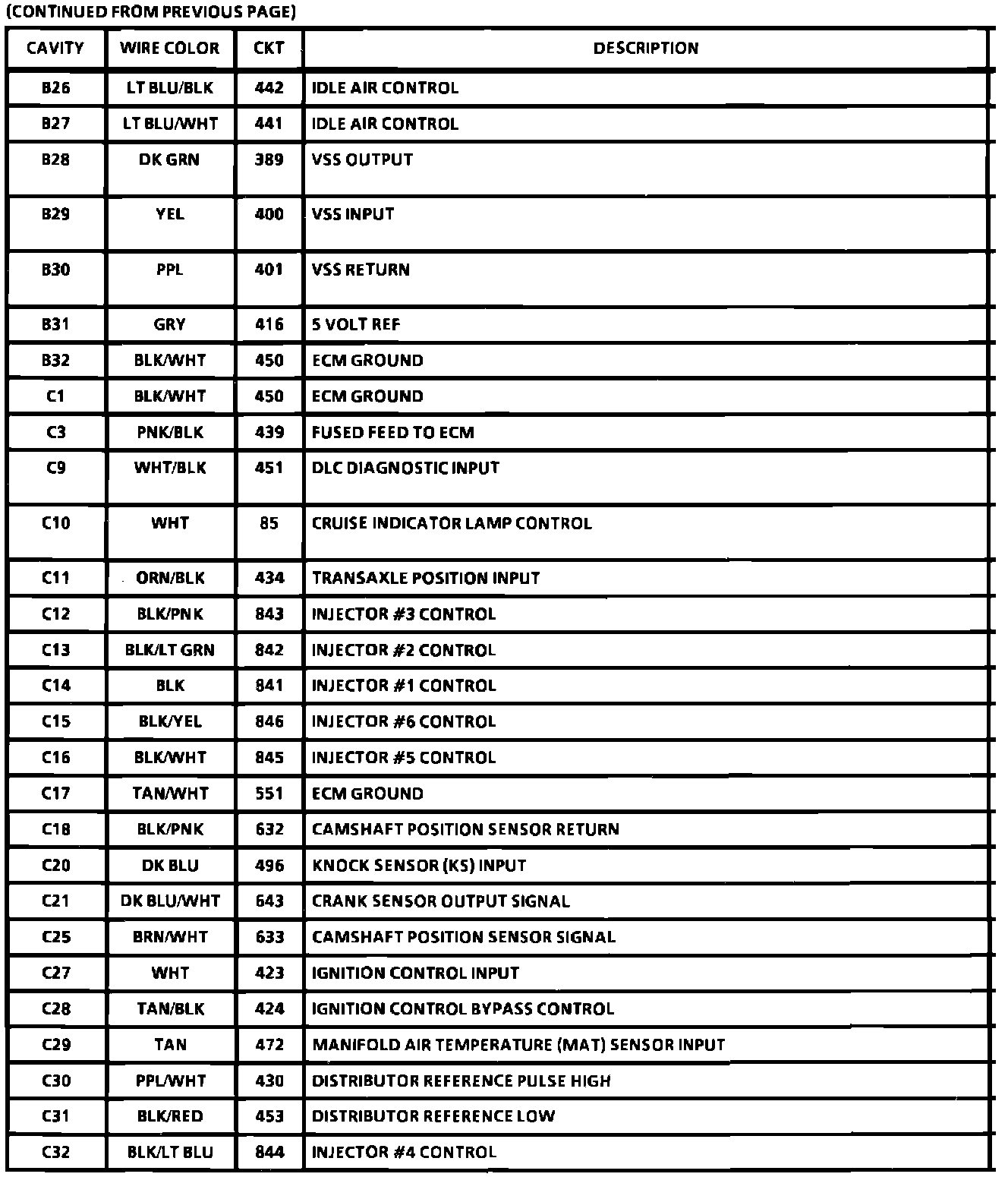

ECM Connector:

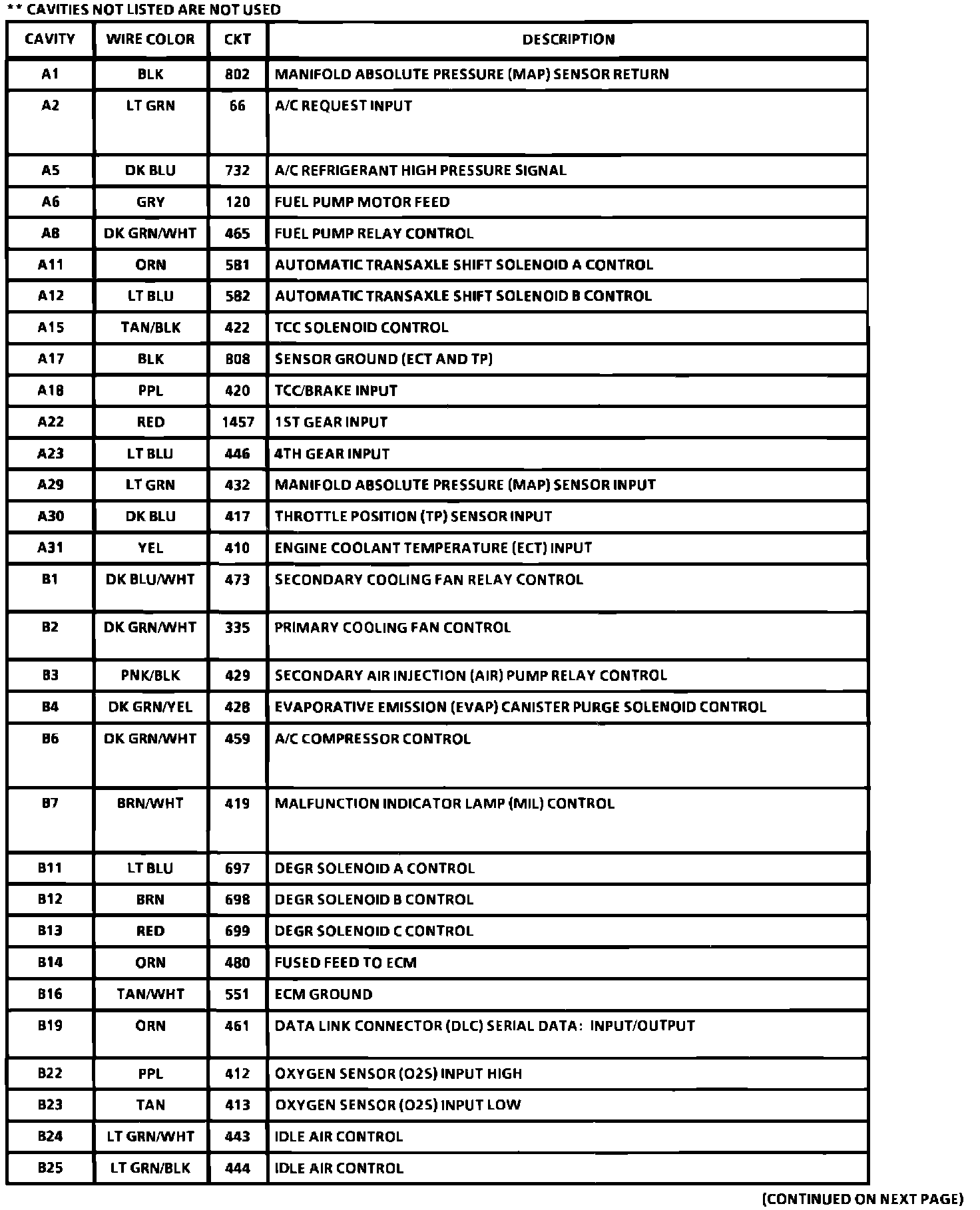

ECM Connector:
